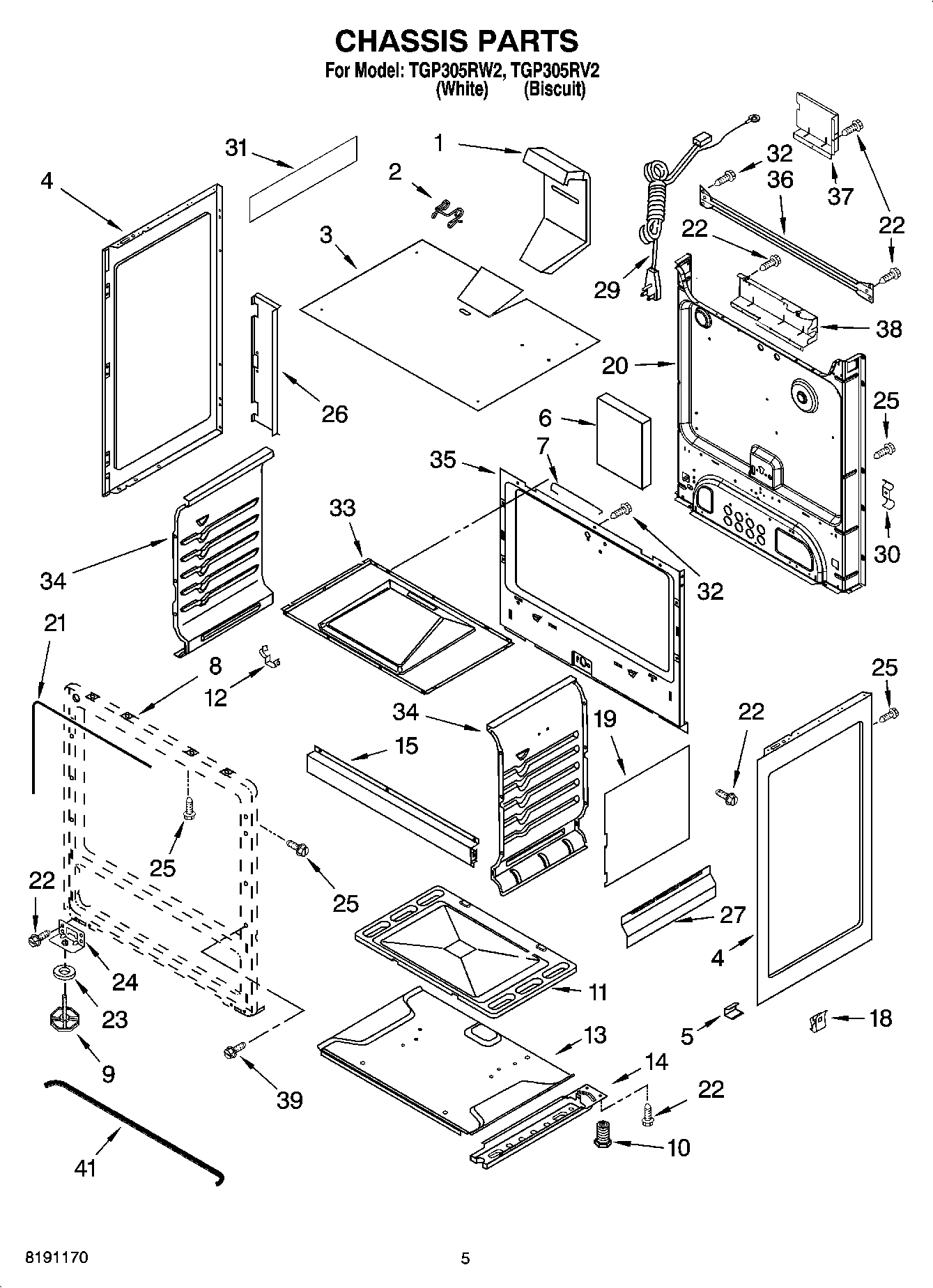

TGP305RW2 04 – CHASSIS PARTS

Products

Position	Product
1	WPW10116396 Whirlpool Flue Box
2	98013690 Whirlpool Clip
3	Shield, Insulation
4	WP98010042 Whirlpool Side Panel
4	98010045 Whirlpool Oven Side Panel
5	CLIP, OVEN BOTTON
6	Counterweight
7	98006739 Whirlpool Oven Wire Tie
8	Frame, Front
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP98004449 Whirlpool Oven Bottom
12	98005642 Whirlpool Clip
13	98003847 Whirlpool Oven Bottom Baffle
14	98003830 Whirlpool Rail Base
15	98012175 Whirlpool Oven Support
18	98009179 Whirlpool Oven Nut
19	Baffle, Side (2)
20	98015100 Whirlpool Oven Rear Cover
21	WPW10217472 Whirlpool Door Gasket
22	W10837731 Whirlpool Screw Assembly
23	98007193 Whirlpool Oven Washer
24	98007126 Whirlpool Oven Stand Bracket
25	SCREW
26	98006715 Whirlpool Channel Assembly
27	98007191 Whirlpool Oven Heat Shield
29	Cord, Power
30	98005026 Whirlpool Oven Clip
31	98015346 Whirlpool Insulation
32	Screw
33	98004447 Whirlpool Top
34	98004451 Whirlpool Oven Side Panel
34	98004452 Whirlpool Oven Side
35	98005768 Whirlpool Back Liner
36	98015363 Whirlpool Oven Support
37	98014104 Whirlpool Access Cover
38	98014105 Whirlpool Oven Access Cover
39	WP98008545 Whirlpool Screw
41	W11706555 Whirlpool Insulation
41	WP98017162 Whirlpool Door Gasket
41	W11311894 Whirlpool Insulation
41	Insulation
