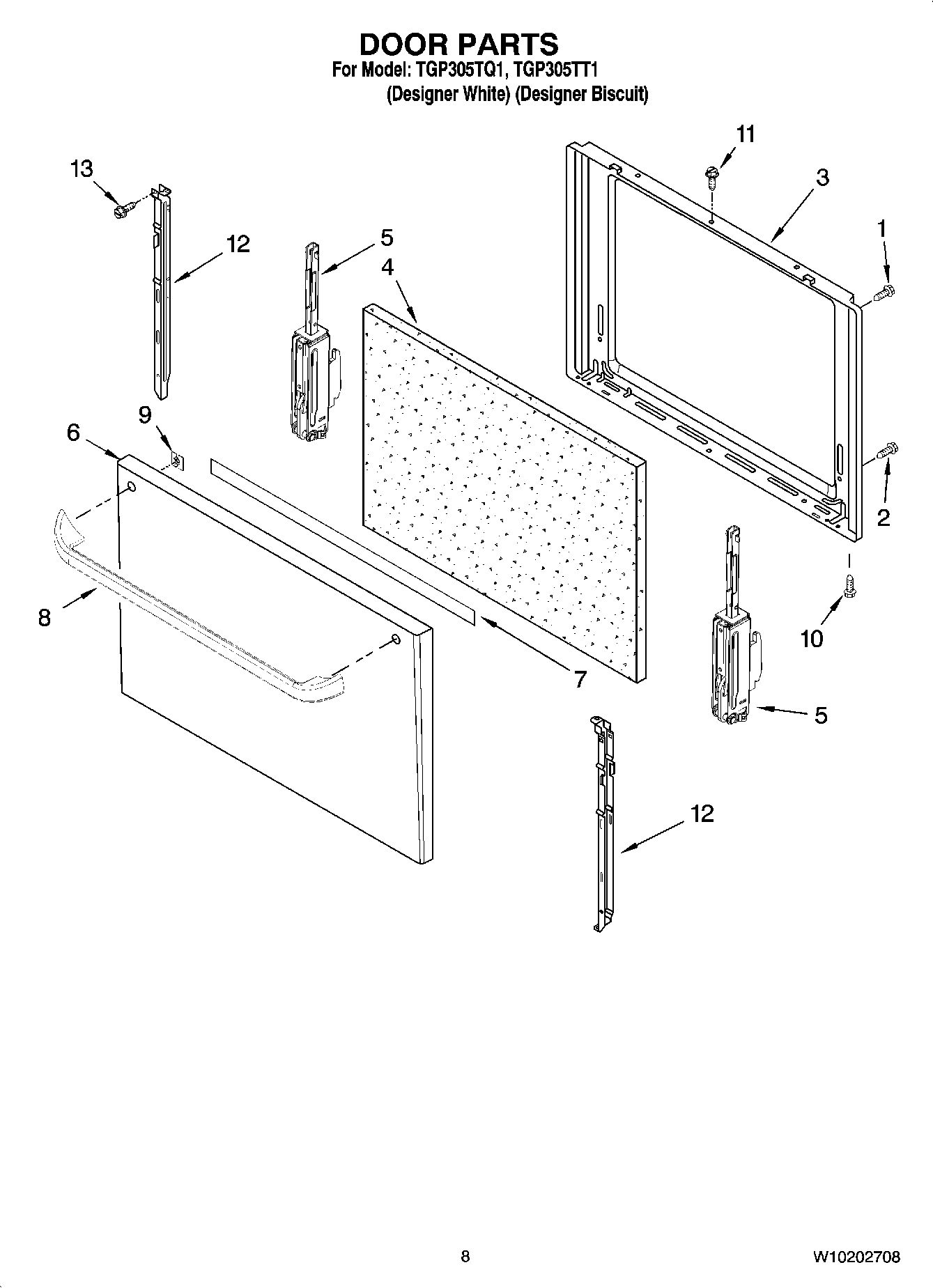

TGP305TQ1 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI131412A
	Grease
	98015022 Whirlpool Bushing Assembly
	WP3391018 Whirlpool Wire Tie
	98012220 Whirlpool Oven Door Pin
	WPW10477747 Whirlpool Anchor Tip
	98014534 Whirlpool Wire Harness
	WPL ARI131413A
	Following Parts Not Illustrated
	SPLICING WIRES–25FT. LENGTH
	REFINISHING MATERIAL
	Insulation
	WIRING HARNESS PA
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	4392901 Whirlpool Biscuit Spray Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	4392899 Whirlpool Biscuit Touch-Up Paint
	549193 Whirlpool Refrigerator Power Clamp
	350930 Whirlpool White Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	WPW10208653 Whirlpool Insulation
	285006 Whirlpool Spray
	511873 Whirlpool Refrigerator Paint
1	SCREW
2	W11206744 Whirlpool Screw
3	Liner, Door
4	Insulation, Door
5	Hinge, Door (Right)
5	98017873 Whirlpool Oven Door Hinge
6	WP98017968W Whirlpool Door Panel
6	Panel, Door (Biscuit)
7	Retainer, Upper (2)
8	Handle, Oven Door (Biscuit)
8	WP98017915W Whirlpool Door Handle
9	Bracket, Handle (2)
10	WP59002061 Whirlpool Microwave Screw
11	3196166 Whirlpool Screw
12	98004629 Whirlpool Oven Retainer
12	98004564 Whirlpool Oven Retainer
13	WP3400805 Whirlpool Screw Assembly
