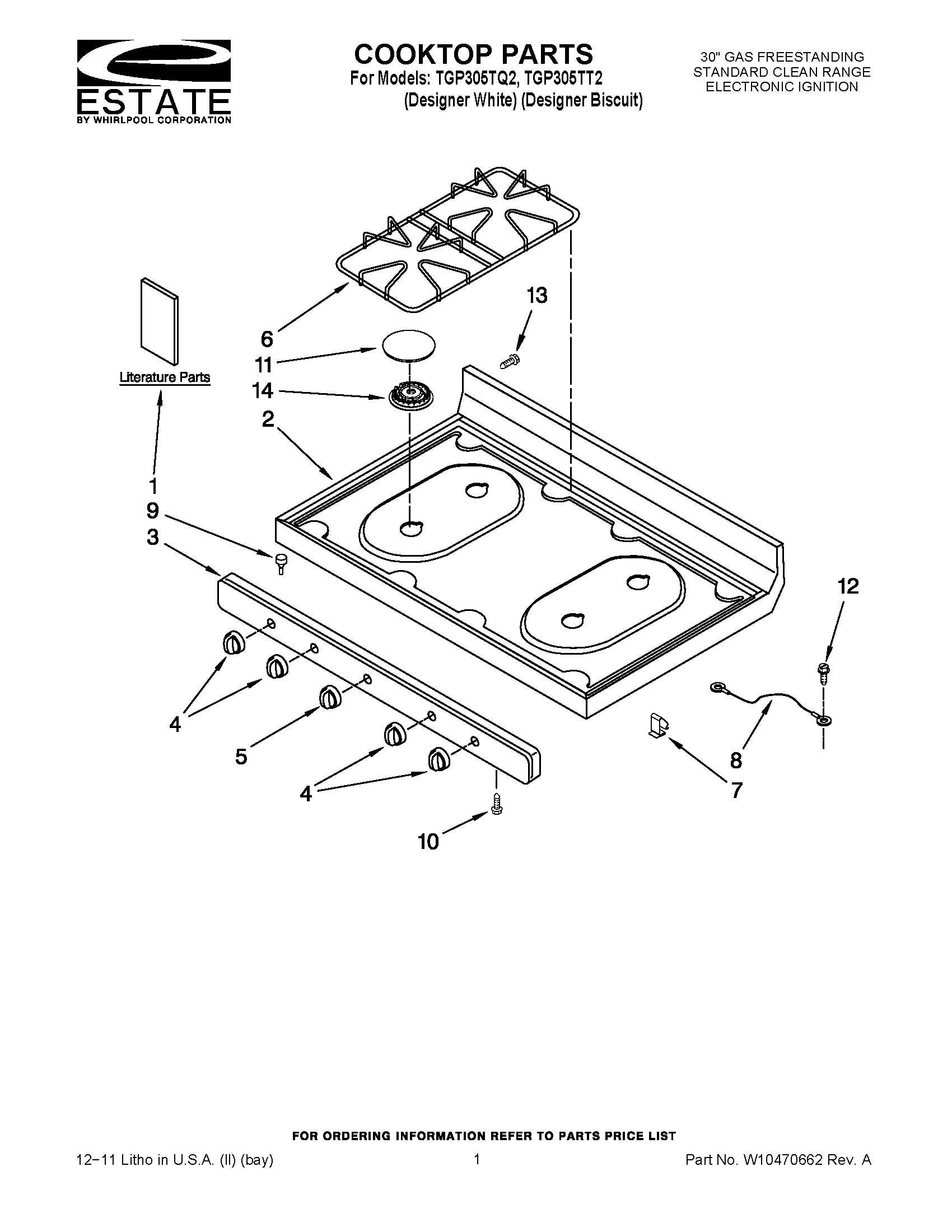

TGP305TQ2 01 – COOKTOP PARTS

Products

Position	Product
1	GUIDE, USE & CARE
1	Tech Sheet
1	Safer Cooking Tips
1	Instructions Installation
1	Installation Instr (Template)
2	Cooktop (Biscuit)
2	WP98017619W Whirlpool Cooktop
3	PANEL, MANIFOLD (WHITE)
3	PANEL, MANIFOLD (BISCUIT)
4	WP98006102 Whirlpool Knob
4	WP98008208 Whirlpool Knob
5	WP98008321 Whirlpool Range Stove Burner Thermostat Control Knob
5	98008322 Whirlpool Oven Knob
6	WPW10180089 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	3184020 Whirlpool Oven Wire
9	W10831827 Whirlpool Bumper
10	SCREW
11	WP98017461 Whirlpool Burner Cap
12	W10850756 Whirlpool Screw
13	WP98007225 Whirlpool Screw Assembly
14	WPW10243396 Whirlpool Burner Top
