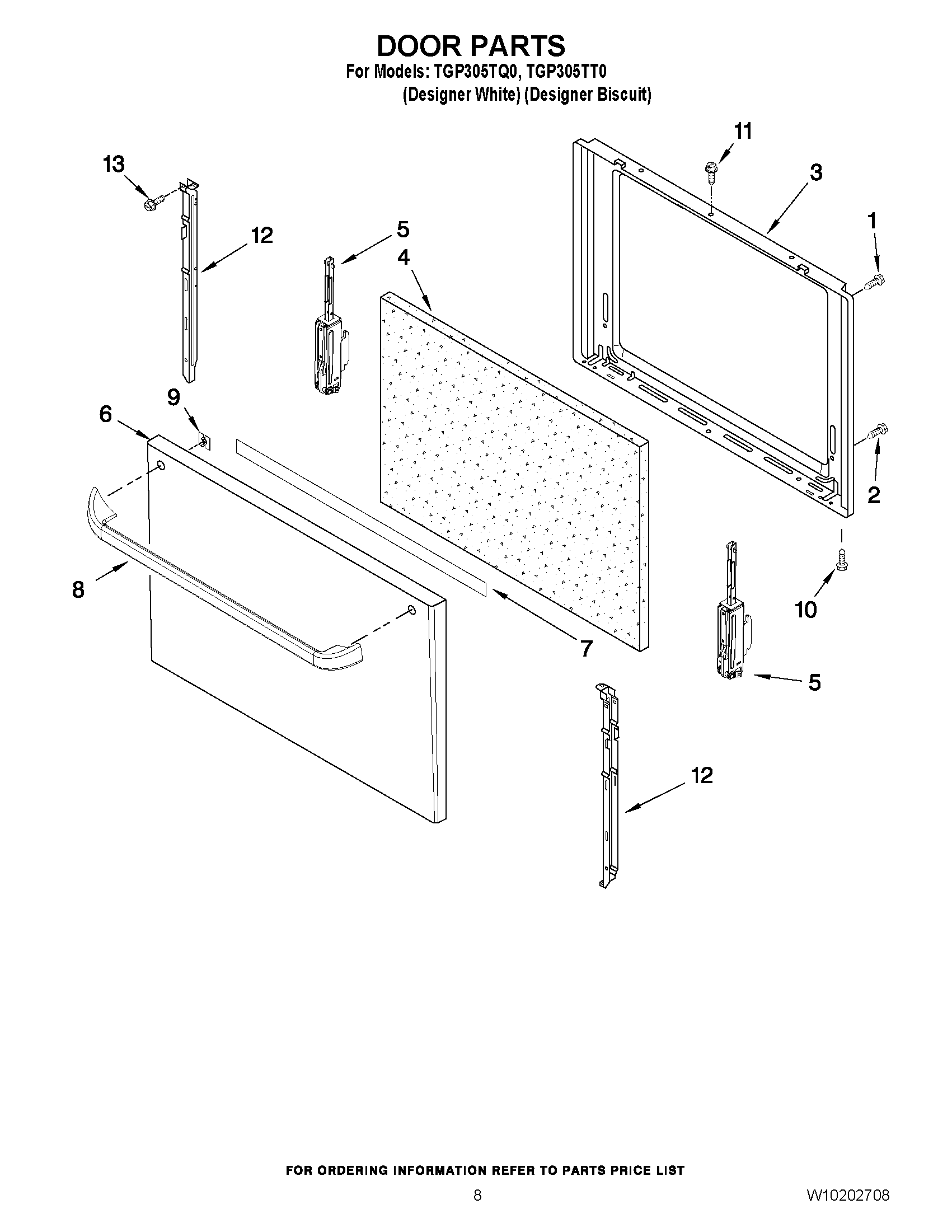

TGP305TT0 06 – DOOR PARTS

Products

Position	Product
1	SCREW
2	W11206744 Whirlpool Screw
3	Liner, Door
4	Insulation, Door
5	Hinge, Door (Right)
5	98017873 Whirlpool Oven Door Hinge
6	Panel, Door (Biscuit)
6	WP98017968W Whirlpool Door Panel
7	Retainer, Upper (2)
8	WP98017915W Whirlpool Door Handle
8	Handle, Oven Door (Biscuit)
9	Bracket, Handle (2)
10	WP59002061 Whirlpool Microwave Screw
11	3196166 Whirlpool Screw
12	98004629 Whirlpool Oven Retainer
12	98004564 Whirlpool Oven Retainer
13	WP3400805 Whirlpool Screw Assembly
