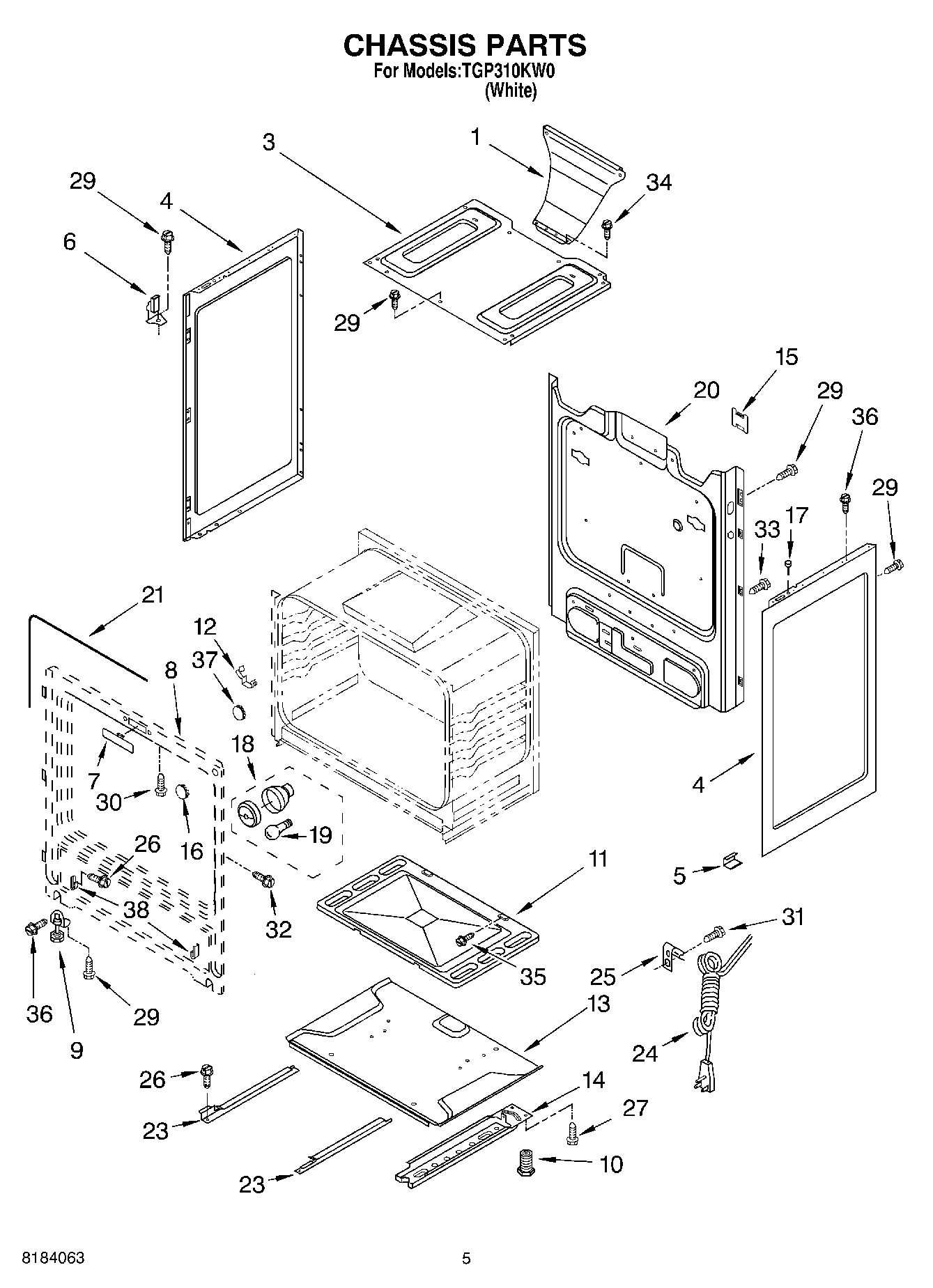

| 1 | W11457094 Whirlpool Oven Flue |
| 3 | W11379351 Whirlpool Burner Box |
| 4 | WPW10575396 Whirlpool Side Panel |
| 5 | Clip, Panel (6) |
| 6 | Brkt, Manifold Mtg (Right Hand) |
| 6 | Brkt, Manifold Mtg (Left Hand) |
| 7 | Plug, Frame |
| 8 | Frame, Front (Not Serviceable) |
| 9 | WP3196037 Whirlpool Leveling Foot |
| 10 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 11 | WP3195097 Whirlpool Oven Bottom |
| 12 | 98005642 Whirlpool Clip |
| 13 | Baffle, Base |
| 14 | WPW10306546 Whirlpool Base Rail |
| 15 | Button, Plug (Oval (1)) |
| 16 | Plug Button |
| 17 | 238614 Whirlpool Bumper Hinge |
| 18 | W11594027 Whirlpool Range Oven Light Socket |
| 19 | RANGE ONLY 40W 120V APPL BULB |
| 20 | Back, Main |
| 21 | W11542153 Whirlpool Door Gasket |
| 23 | Plate, Guide (Left Hand) |
| 23 | Plate, Guide (Right Hand) |
| 24 | WP9757891 Whirlpool Power Cord |
| 25 | 549193 Whirlpool Refrigerator Power Clamp |
| 26 | WP3196175 Whirlpool Screw |
| 30 | SCREW |
| 31 | W11244557 Whirlpool Screw |
| 32 | WP7101P246-60 Whirlpool Screw |
| 33 | WP3196183 Whirlpool Screw |
| 34 | WP3196557 Whirlpool Screw |
| 35 | Screw |
| 36 | Screw |
| 37 | Button, Plug (25/32`` (2)) |
| 38 | WPW10208653 Whirlpool Insulation |
| 38 | Glide, Front (2) |
| 38 | TIE,WIRE |
| 38 | W11688737 Whirlpool Insulation |
