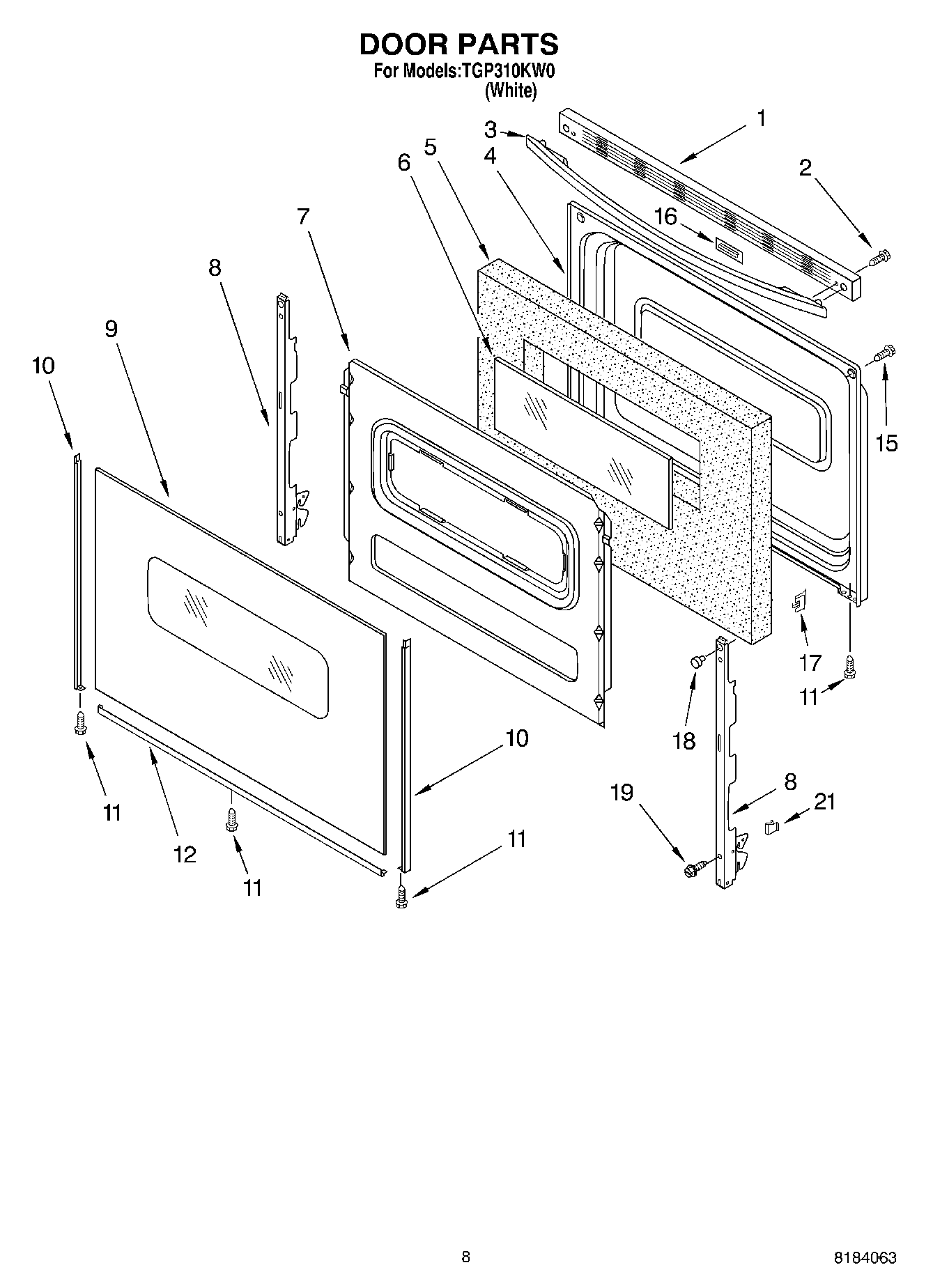

TGP310KW0 06 – DOOR, OPTIONALadmin2025-04-26T11:23:26+00:00TGP310KW0 06 – DOOR, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Trim, Top (Black) |
| 2 | WP3196164 Whirlpool Screw |
| 3 | WPW10202217 Whirlpool Door Handle |
| 4 | Liner, Door |
| 5 | WPW10278991 Whirlpool Insulation |
| 6 | WP9758164 Whirlpool Door Glass |
| 7 | 9761500 Whirlpool Oven Retainer |
| 8 | Hinge, Door (2) |
| 9 | WP9762477 Whirlpool Glass Door |
| 11 | W10491985 Whirlpool Screw |
| 12 | 8184858 Whirlpool Door Trim |
| 15 | WP179051 Whirlpool Screw |
| 16 | Plug, Door |
| 17 | Clip, Glass (4) |
| 18 | 238614 Whirlpool Bumper Hinge |
| 19 | WP3196175 Whirlpool Screw |
| 21 | Wire (14 Ga. 200 c Brown) |
| 21 | 1 |
| 21 | 18 Ga. 80~c Rating (Red) |
| 21 | Wire (14 Ga. 150 c Yellow) |
| 21 | Wire (12 Ga. 150 c Black) |
| 21 | 8212471 Whirlpool Oven Paint |
| 21 | Grease |
| 21 | 8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit |
| 21 | WPL 8273934 |
| 21 | 3196896 Whirlpool Clip |
| 21 | WPL 8053527 |
| 21 | WPL 8274195 |
| 21 | Almond (Uncut) |
| 21 | Wire (14 Ga. 150 c Orange) |
| 21 | Wire (14 Ga. 150 c Green) |
| 21 | WPL 799832 |
| 21 | PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) |
| 21 | 511873 Whirlpool Refrigerator Paint |
| 21 | 4392901 Whirlpool Biscuit Spray Paint |
| 21 | 4392899 Whirlpool Biscuit Touch-Up Paint |
| 21 | 350942 Whirlpool Spray Paint |
| 21 | WP72107 Whirlpool Touchup |
| 21 | 799344 Whirlpool Refrigerator Paint |
| 21 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 21 | 350956 Whirlpool Spray Assembly |
| 21 | WPW10208653 Whirlpool Insulation |
| 21 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 21 | Wire (14 Ga. 150 c Brown) |
| 21 | Wire (14 Ga. 150 c Blue) |
| 21 | 242831 Whirlpool Oven Wire |
| 21 | 3400964 Whirlpool Oven Clip |
| 21 | WP3196925 Whirlpool Clip Assembly |
| 21 | 814381 Whirlpool Pin |
| 21 | 285006 Whirlpool Spray |
| 21 | Wire, 25`` Roll (White 14 GA.) |
| 21 | Wire, 25` Roll (Red 14 Ga.) |
| 21 | Wire, 25` Roll (Black 14 Ga.) |
| 21 | 350930 Whirlpool White Spray Paint |
