TGP310LW1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI131432A
	CLIP, WIRE
	WP9757891 Whirlpool Power Cord
	Grease
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Harness,
	98017831 Whirlpool Oven Anchor Tip
	WPL ARI131431A
	WPL ARI131430A
	WPL ARI131429A
	WPL ARI131428A
	WPL ARI131427A
	WPL ARI131433A
	WPL 98005915
	Harness, Switch
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WPL 799832
	350956 Whirlpool Spray Assembly
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	549193 Whirlpool Refrigerator Power Clamp
	814381 Whirlpool Pin
	WPW10208653 Whirlpool Insulation
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray

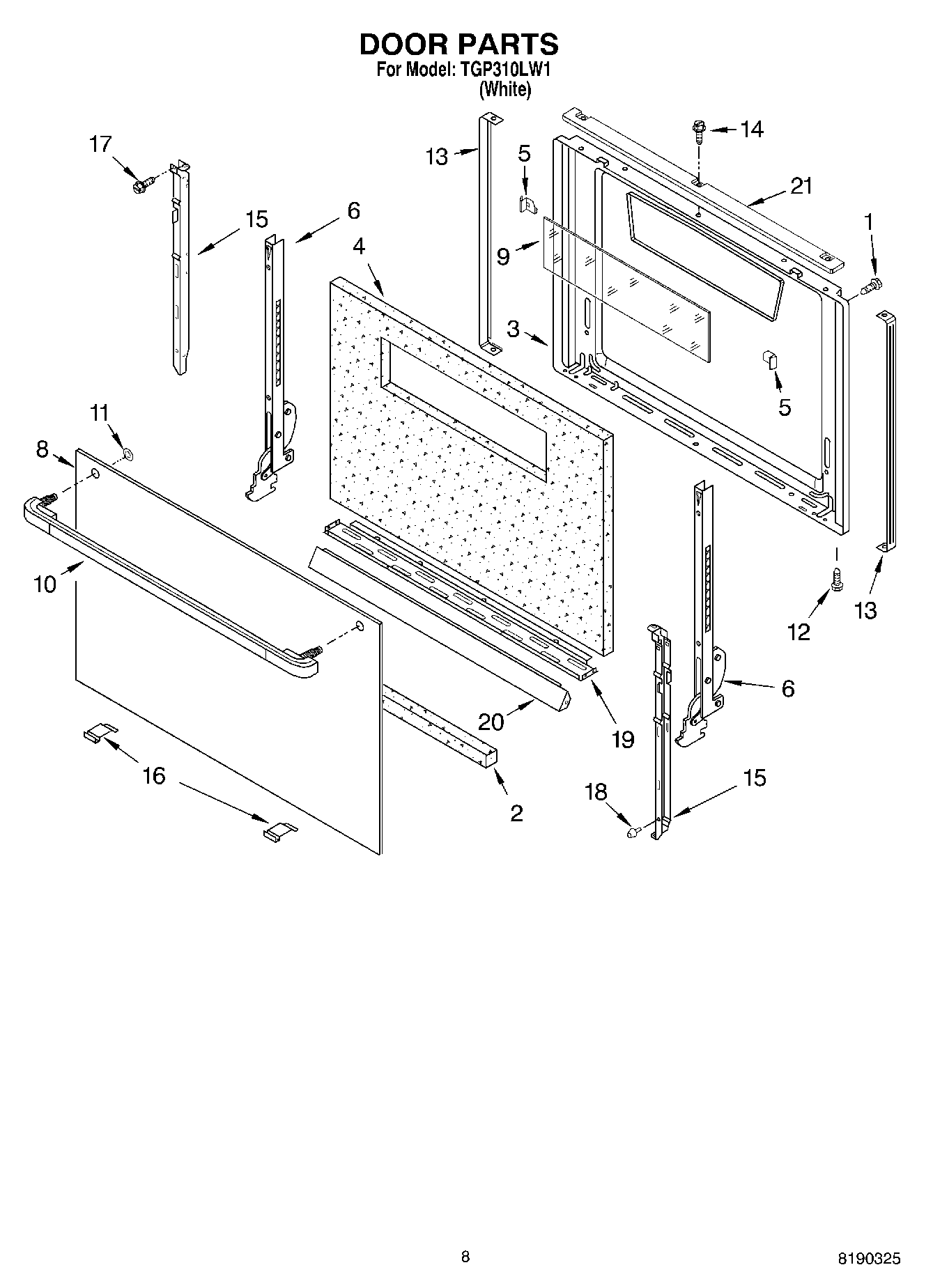

1	WP98004218 Whirlpool Screw
2	Insulation
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004953 Whirlpool Clip
5	98004952 Whirlpool Oven Clip
6	Hinge, Door (2)
8	Panel, Door (Black)
9	Glass, Inner
10	WP98005317 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
13	WP98006793 Whirlpool Door Trim Assembly
14	WP3400832 Whirlpool Screw
14	3196166 Whirlpool Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP98010187 Whirlpool Range Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
21	98006884 Whirlpool Oven Door Trim
