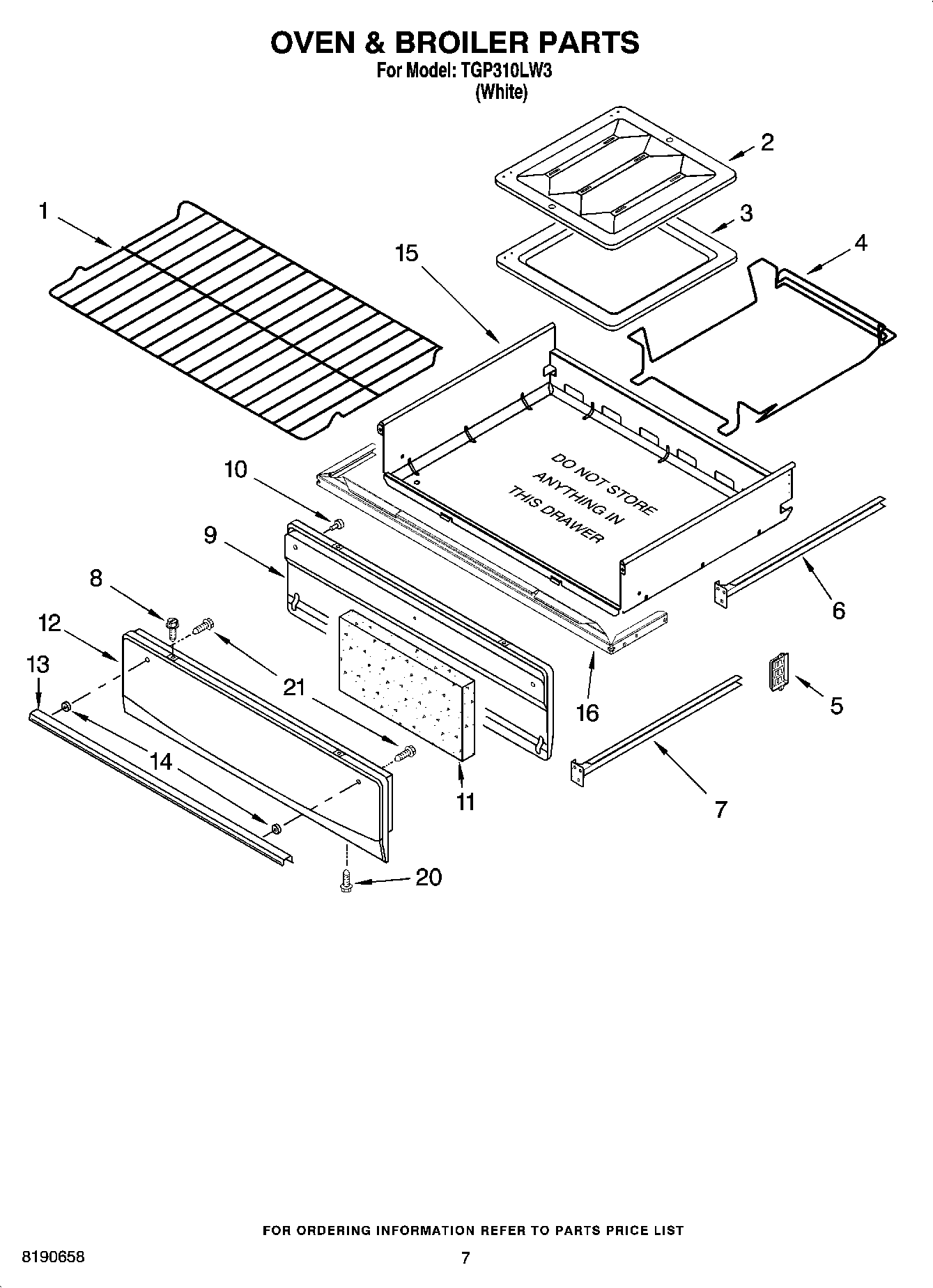

TGP310LW3 05 – OVEN & BROILER PARTS

Products

Position	Product
1	Rack, Oven (2)
2	WP98003480 Whirlpool Grill Pan
3	WP98016005 Whirlpool Broiler Pan
4	Rack, Broiler
5	Bracket, Rack
6	WPW10206641 Whirlpool Drawer Guide
6	W10206642 Whirlpool Drawer Guide
7	WPW10206639 Whirlpool Drawer Guide
7	98004994 Whirlpool Oven Drawer Guide
8	3196166 Whirlpool Screw
9	Liner, Door
10	BUMPER, DOOR
11	Insulation, Door
12	Panel, Door (White)
13	Handle, Brlr Door (White)
14	Spacer, Handle
15	Storage, Drawer
16	Support, Rack
20	WP3400805 Whirlpool Screw Assembly
21	Screw
