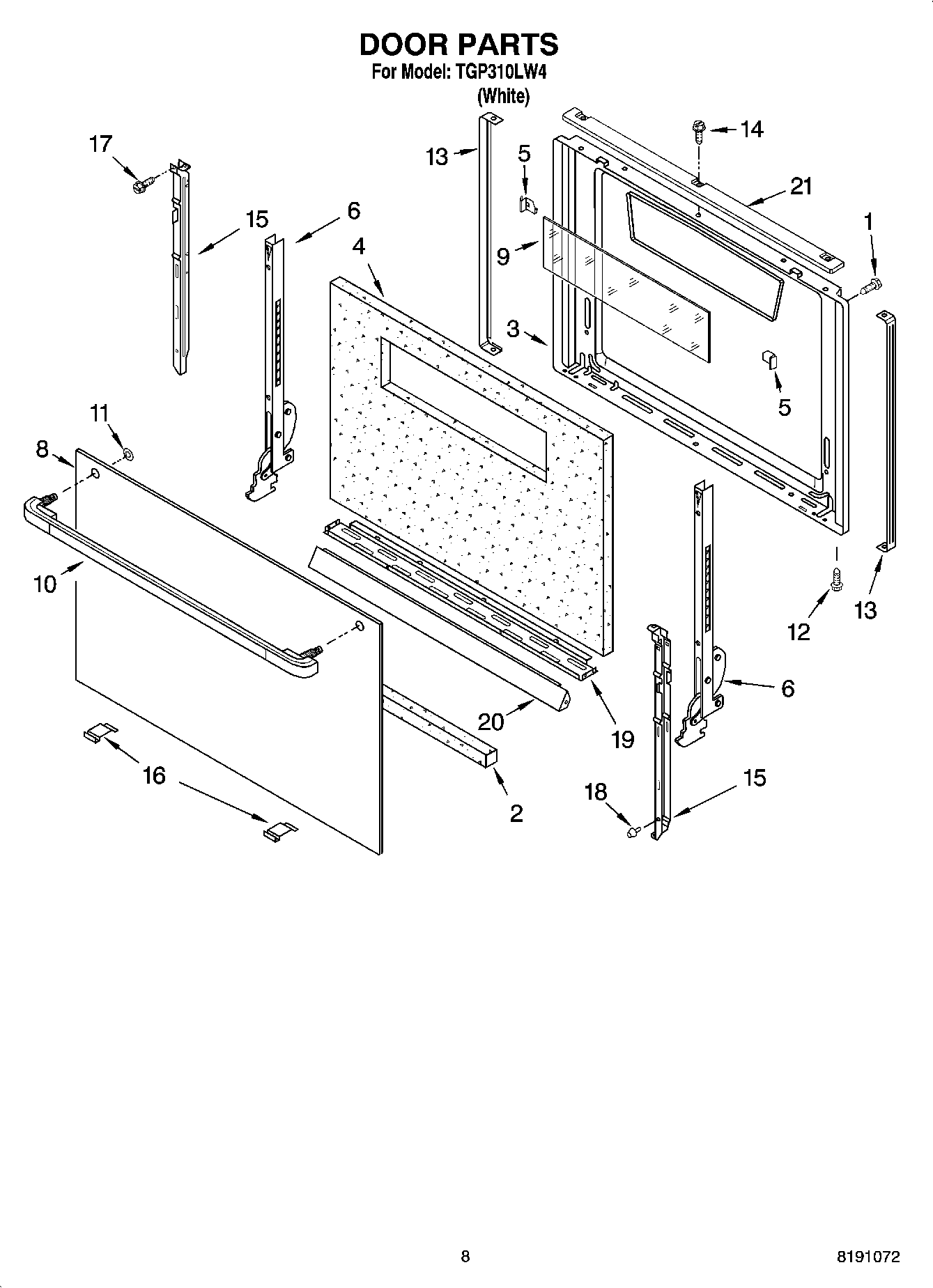

TGP310LW4 06 – DOOR PARTS, MISCELLANEOUS PARTS

TGP310LW4 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

TGP310LW4 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI131459A
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WP3391018 Whirlpool Wire Tie
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	WPL 8316781
	98015022 Whirlpool Bushing Assembly
	Harness, T-Stat
	CLIP, WIRE
	WPW10477747 Whirlpool Anchor Tip
	WPL ARI131460A
	WPL ARI131454A
	WPL ARI131455A
	WPL ARI131456A
	WPL ARI131457A
	WPL ARI131458A
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	549193 Whirlpool Refrigerator Power Clamp
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
1	Screw
2	Insulation
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (2)
8	Panel, Door (Black)
9	Glass, Inner
10	WP98005317 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
13	WP98006793 Whirlpool Door Trim Assembly
14	WP3400832 Whirlpool Screw
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	WP98010187 Whirlpool Range Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
21	98006884 Whirlpool Oven Door Trim
