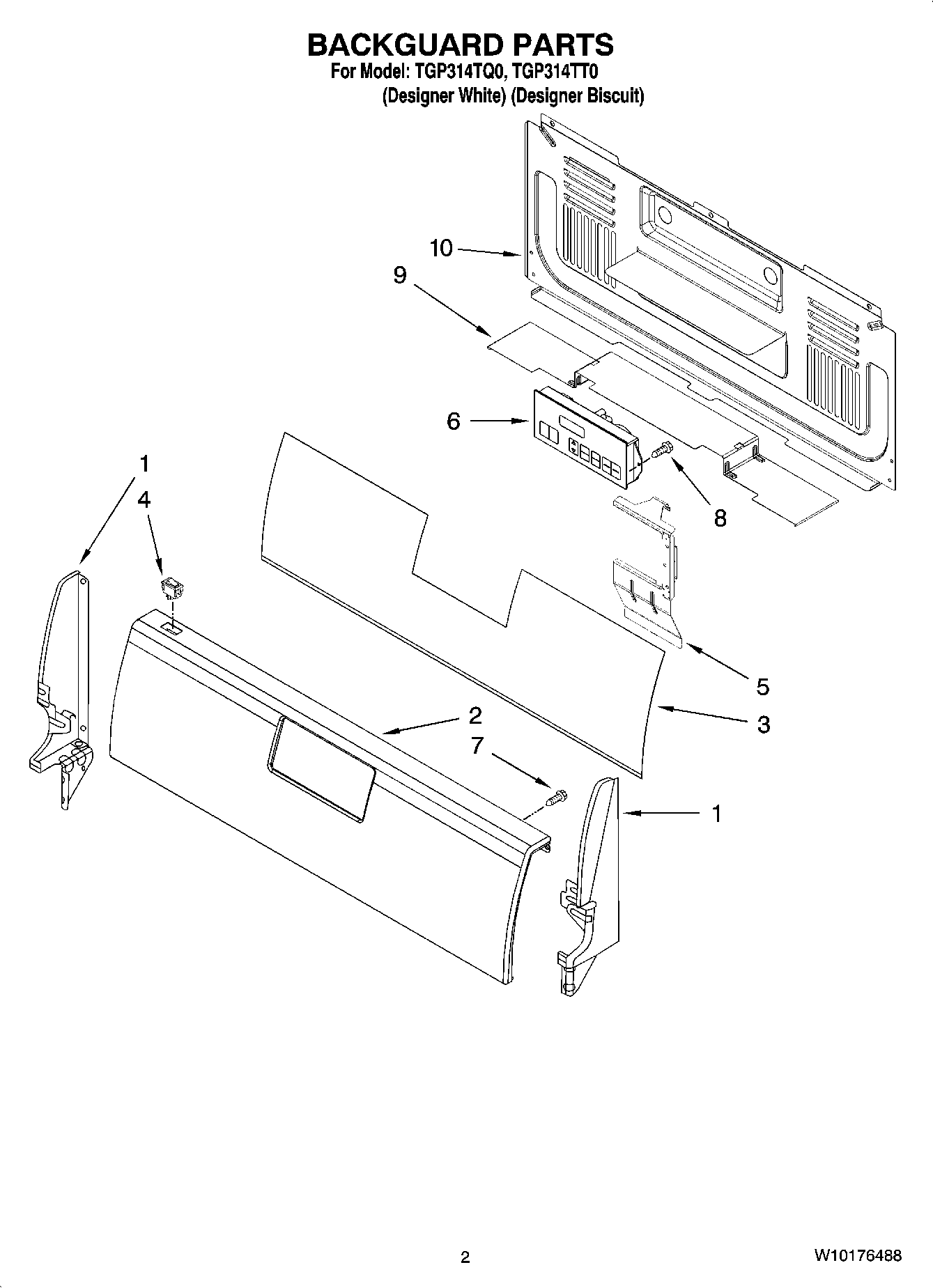

TGP314TQ0 02 – BACKGUARD PARTS

TGP314TQ0 02 – BACKGUARD PARTS

Written by

in

TGP314TQ0 02 – BACKGUARD PARTS

Products

PositionProduct
198005336 Whirlpool Oven Endcap Panel
198005337 Whirlpool Oven Endcap Panel
198008274 Whirlpool Panel Endcap
198008275 Whirlpool Panel Endcap
2Panel, Backguard (Biscuit)
2Panel, Backguard (White)
3Foil, Backguard
4Swtich, Rocker (Biscuit)
43149360 Whirlpool Light Switch
598018143 Whirlpool Oven Timer Bracket
598018144 Whirlpool Oven Timer Bracket
6Control, Elec (Biscuit)
6Control, Elec (White)
8WP3400805 Whirlpool Screw Assembly
9DEFLECTOR
10Cover, Rear
