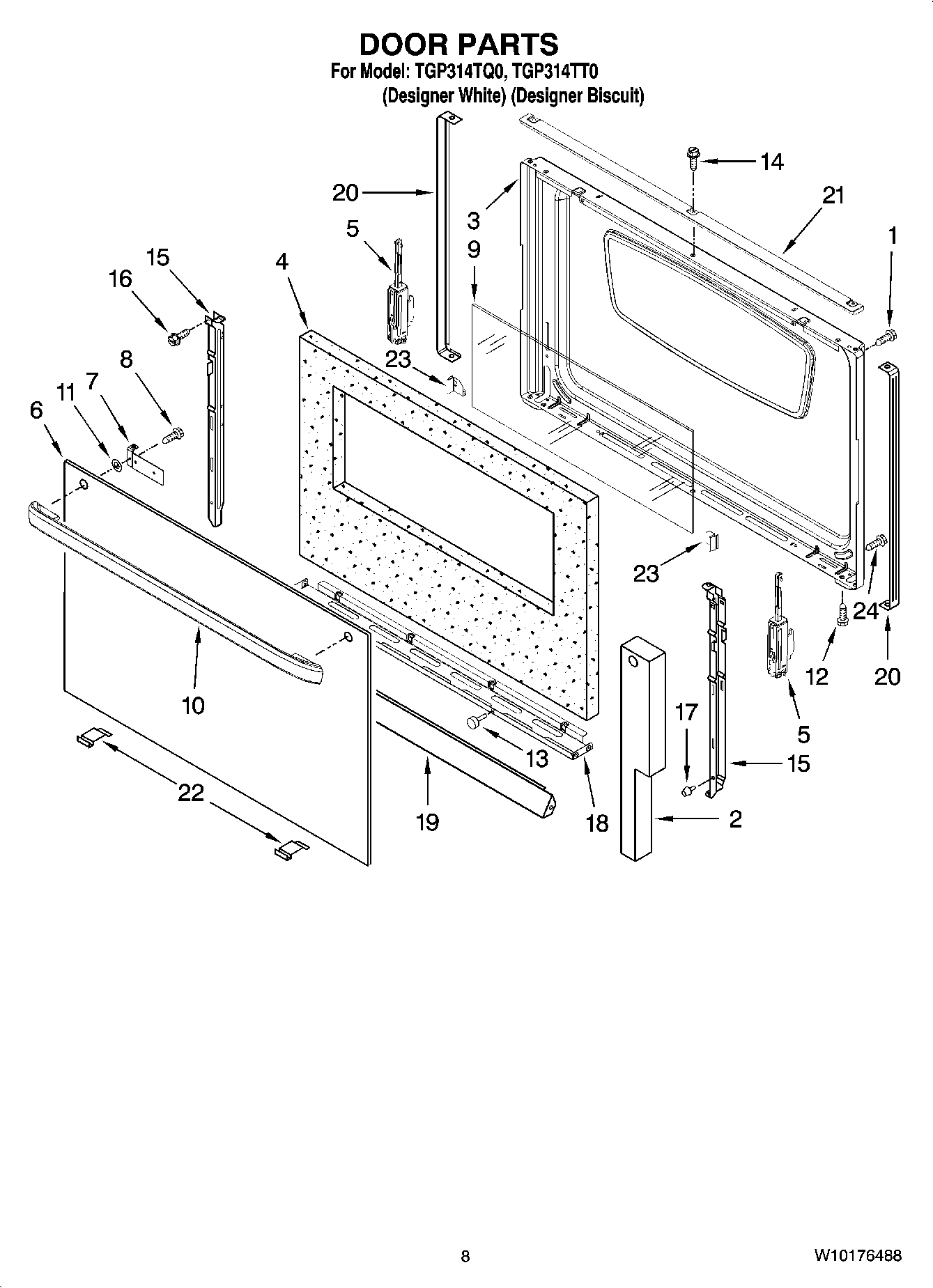

TGP314TQ0 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI131483A
	CLIP, WIRE
	WP3391018 Whirlpool Wire Tie
	98015022 Whirlpool Bushing Assembly
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	WPL W10154425
	98012220 Whirlpool Oven Door Pin
	W10154424 Whirlpool Wire Harness
	WPL ARI131480A
	WPL ARI131481A
	WPL ARI131482A
	WPL ARI131484A
	WPL ARI131485A
	WPL ARI131486A
	WPW10477747 Whirlpool Anchor Tip
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	549193 Whirlpool Refrigerator Power Clamp
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	Wire (14 Ga. 150 c Green)
	285006 Whirlpool Spray
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
1	SCREW
2	Insulation (Right)
2	W11688784 Whirlpool Insulation
3	Liner, Door
4	Insulation, Door
5	Hinge, Door (Right)
6	Glass, Outer Door (White)
6	Glass, Outer Door (Biscuit)
7	Support, Glass (2)
8	SCREW (STAINLESS)
9	WP98006801 Whirlpool Door Glass
10	Handle, Oven Door (Biscuit)
10	WP98017915W Whirlpool Door Handle
11	Spacer (2)
12	WP59002061 Whirlpool Microwave Screw
13	98004723 Whirlpool Oven Bumper
14	Screw (Biscuit)
14	WP98008544 Whirlpool Screw Assembly
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
17	98004227 Whirlpool Oven Bumper
18	98004938 Whirlpool Oven Retainer
19	Insulation, Retainer-Bottom
20	98006794 Whirlpool Oven Door Trim
20	98008174 Whirlpool Oven Door Trim
21	Top Trim, Door (White)
21	98008175 Whirlpool Door Trim
22	WP98010185 Whirlpool Door Trim
22	98010184 Whirlpool Oven Door Trim
23	98004953 Whirlpool Clip
23	98004952 Whirlpool Oven Clip
24	W11206744 Whirlpool Screw
