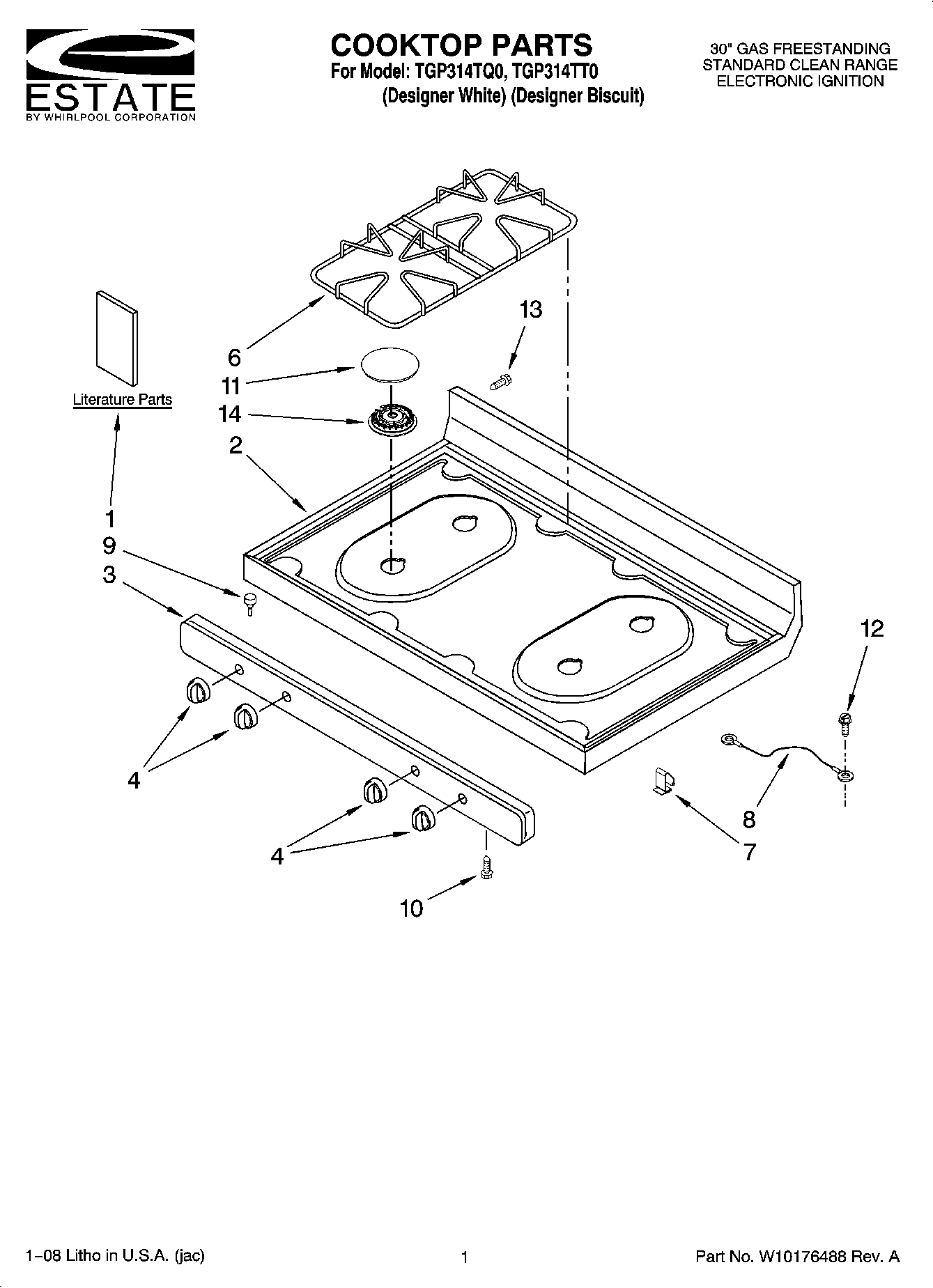

TGP314TT0 01 – COOKTOP PARTS

TGP314TT0 01 – COOKTOP PARTS

Written by

in

TGP314TT0 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instr (Template)
1Tech Sheet
1Guide, Use & Care
1Instructions Installation
1Safer Cooking Tips
2Cooktop (Biscuit)
2WP98017619W Whirlpool Cooktop
3Panel, Manifold (Biscuit)
3Panel, Manifold (White)
4WP98006102 Whirlpool Knob
4WP98008208 Whirlpool Knob
6WPW10180089 Whirlpool Burner Grate
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98017461 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
13WP98007225 Whirlpool Screw Assembly
14WP98017537 Whirlpool Top Burner
