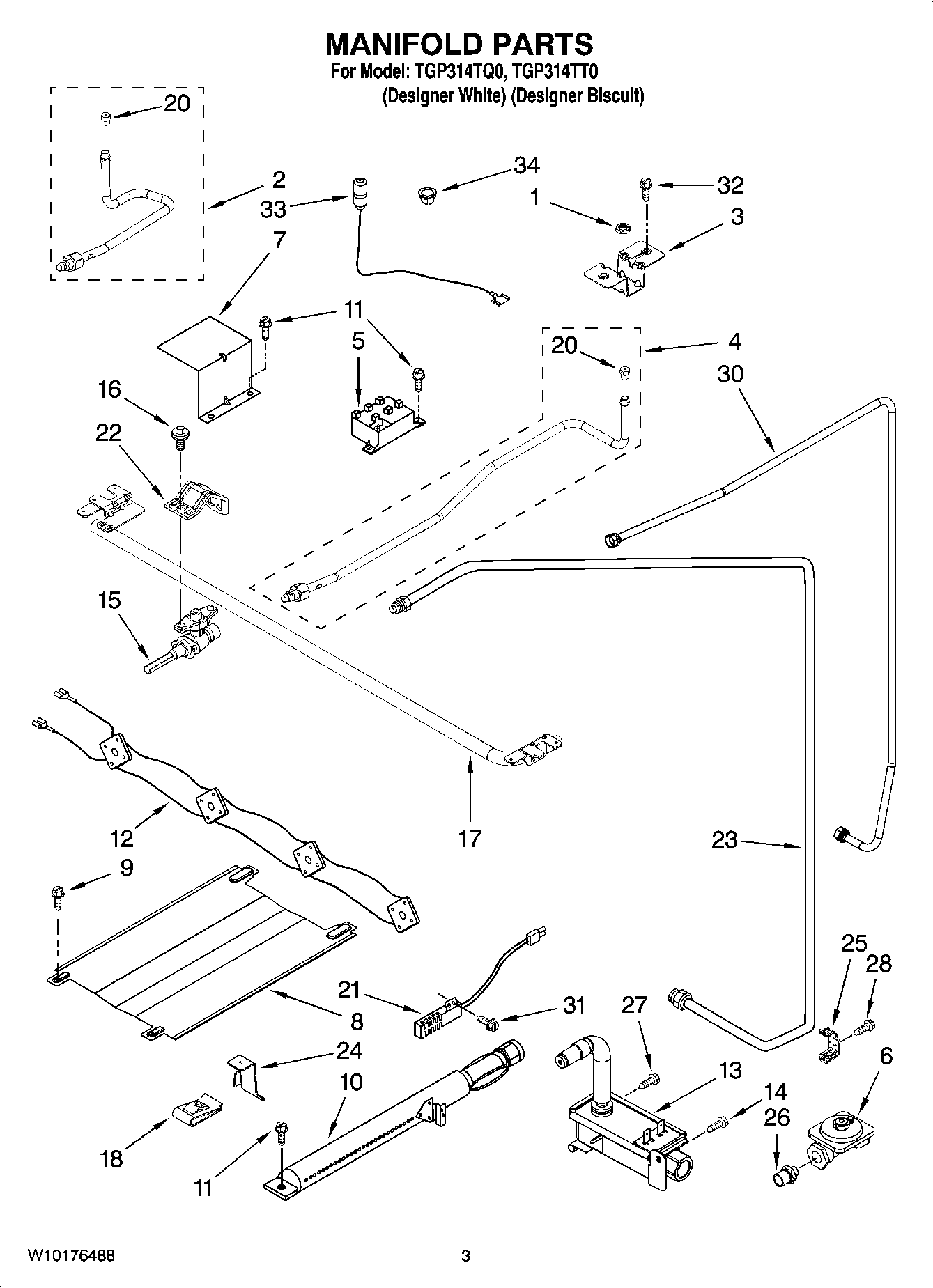

TGP314TT0 03 – MANIFOLD PARTS

Products

Position	Product
1	WPY703856 Whirlpool Nut
2	WP98017583 Whirlpool Venturi
2	WP98017582 Whirlpool Venturi
3	WP98017741 Whirlpool Mounting Bracket
4	WP98017359 Whirlpool Venturi Assembly
5	W11590249 Whirlpool Spark Module
6	Regulator
7	98007192 Whirlpool Cover Model
8	98015099 Whirlpool Oven Burner Baffle
9	SCREW
10	WP98012138 Whirlpool Oven Burner
12	WPW10361492 Whirlpool Wire Harness
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	W10837731 Whirlpool Screw Assembly
15	Valve, Burner (4)
16	98017517 Whirlpool Oven Screw
17	98017556 Whirlpool Oven Manifold Pipe
18	98009179 Whirlpool Oven Nut
20	WP98017349 Whirlpool Orifice
20	WP98017348 Whirlpool Orifice
21	W10918546 Whirlpool Oven Range Igniter
22	98017516 Whirlpool Mounting Bracket
23	WPW10469571 Whirlpool Gas Tubing
24	98013314 Whirlpool Oven Support Bracket
25	98007410 Whirlpool Oven Mounting Bracket
26	98007431 Whirlpool Oven Fitting
27	98013634 Whirlpool Oven Screw
28	Screw, Ground
30	WP98017171 Whirlpool Gas Tubing
31	W11676351 Whirlpool Screw
32	W10837674 Whirlpool Screw
33	WPW10209657 Whirlpool Oven Surface Igniter
33	WPW10209656 Whirlpool Surface Ignitor
34	WPW10278150 Whirlpool Clip Assembly
34	Following Parts Not Illustrated
34	WPW10032030 Whirlpool Orifice Spud
