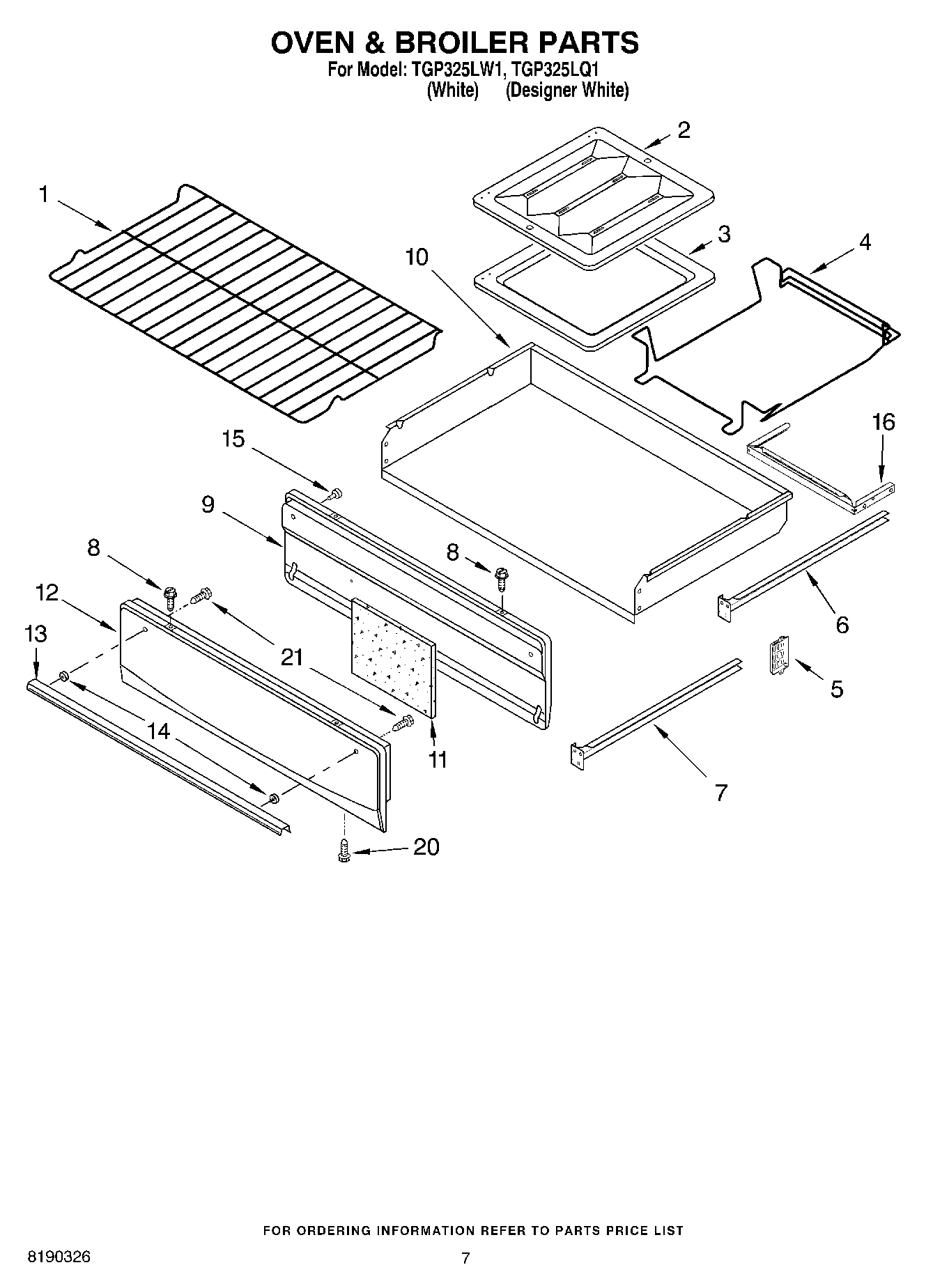

TGP325LQ1 05 – OVEN & BROILER PARTSadmin2025-04-26T11:24:27+00:00TGP325LQ1 05 – OVEN & BROILER PARTS
Products
| Position | Product |
|---|
| 1 | Rack, Oven (2) |
| 2 | WP98003480 Whirlpool Grill Pan |
| 3 | WP98016005 Whirlpool Broiler Pan |
| 4 | Rack, Broiler |
| 5 | Bracket, Rack |
| 6 | 98004994 Whirlpool Oven Drawer Guide |
| 6 | WPW10206639 Whirlpool Drawer Guide |
| 7 | WPW10206641 Whirlpool Drawer Guide |
| 7 | W10206642 Whirlpool Drawer Guide |
| 8 | 3196166 Whirlpool Screw |
| 9 | Liner, Door |
| 10 | Storage, Drawer |
| 11 | Insulation, Door |
| 12 | Panel, Door (White) |
| 13 | Handle, Brlr Door (White) |
| 14 | Spacer, Handle |
| 15 | 98004723 Whirlpool Oven Bumper |
| 16 | Support, Rack |
| 20 | WP3400805 Whirlpool Screw Assembly |
| 21 | Screw |
