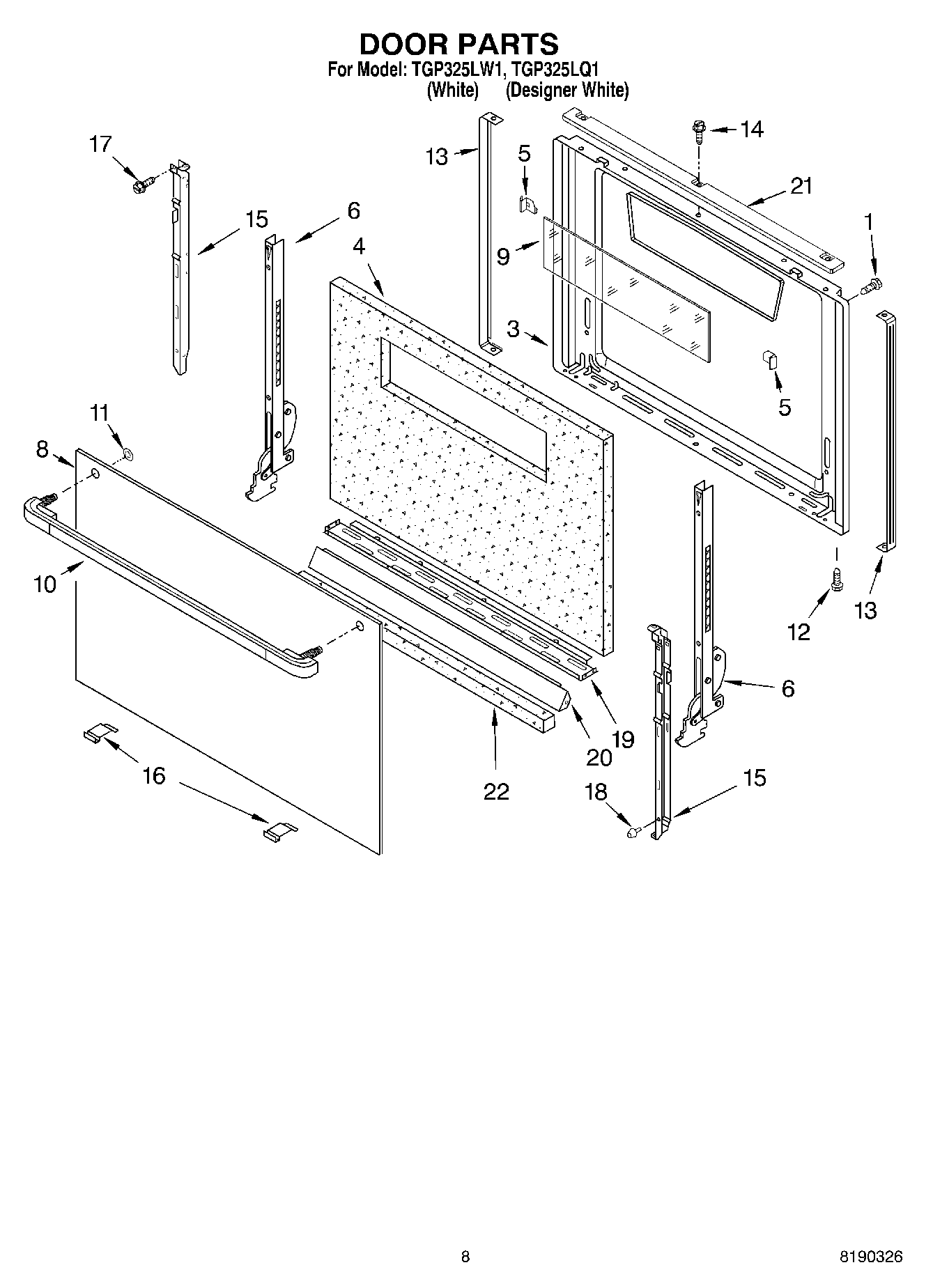

TGP325LW1 06 – DOOR PARTS, MISCELLANEOUS PARTS

TGP325LW1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

TGP325LW1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI131514A
CLIP, WIRE
WP9757891 Whirlpool Power Cord
Grease
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
WPL ARI131515A
98017831 Whirlpool Oven Anchor Tip
WPL ARI131513A
WPL ARI131512A
WPL ARI131511A
WPL ARI131510A
WPL ARI131509A
WPL 98005915
WPL 6610241
Harness, Switch
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL 799832
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
549193 Whirlpool Refrigerator Power Clamp
242831 Whirlpool Oven Wire
814381 Whirlpool Pin
WPW10208653 Whirlpool Insulation
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
1WP98004218 Whirlpool Screw
398010182 Whirlpool Door Liner
4Insulation, Door
598004953 Whirlpool Clip
598004952 Whirlpool Oven Clip
6Hinge, Door (2)
8Panel, Door (White)
8Panel, Door (Black)
9Glass, Inner
10WP98005317 Whirlpool Door Handle
10WP98005318 Whirlpool Door Handle
11WP98004650 Whirlpool Nut
12WP59002061 Whirlpool Microwave Screw
13WP98006793 Whirlpool Door Trim Assembly
1398006794 Whirlpool Oven Door Trim
14WP3400832 Whirlpool Screw
143196166 Whirlpool Screw
1598004629 Whirlpool Oven Retainer
1598004564 Whirlpool Oven Retainer
16WP98010185 Whirlpool Door Trim
16WP98010187 Whirlpool Range Door Trim
17WP3400805 Whirlpool Screw Assembly
1898004227 Whirlpool Oven Bumper
1998004938 Whirlpool Oven Retainer
20Insulation, Retainer-Bottom
21Top Trim, Door (White)
2198006884 Whirlpool Oven Door Trim
22Insulation
