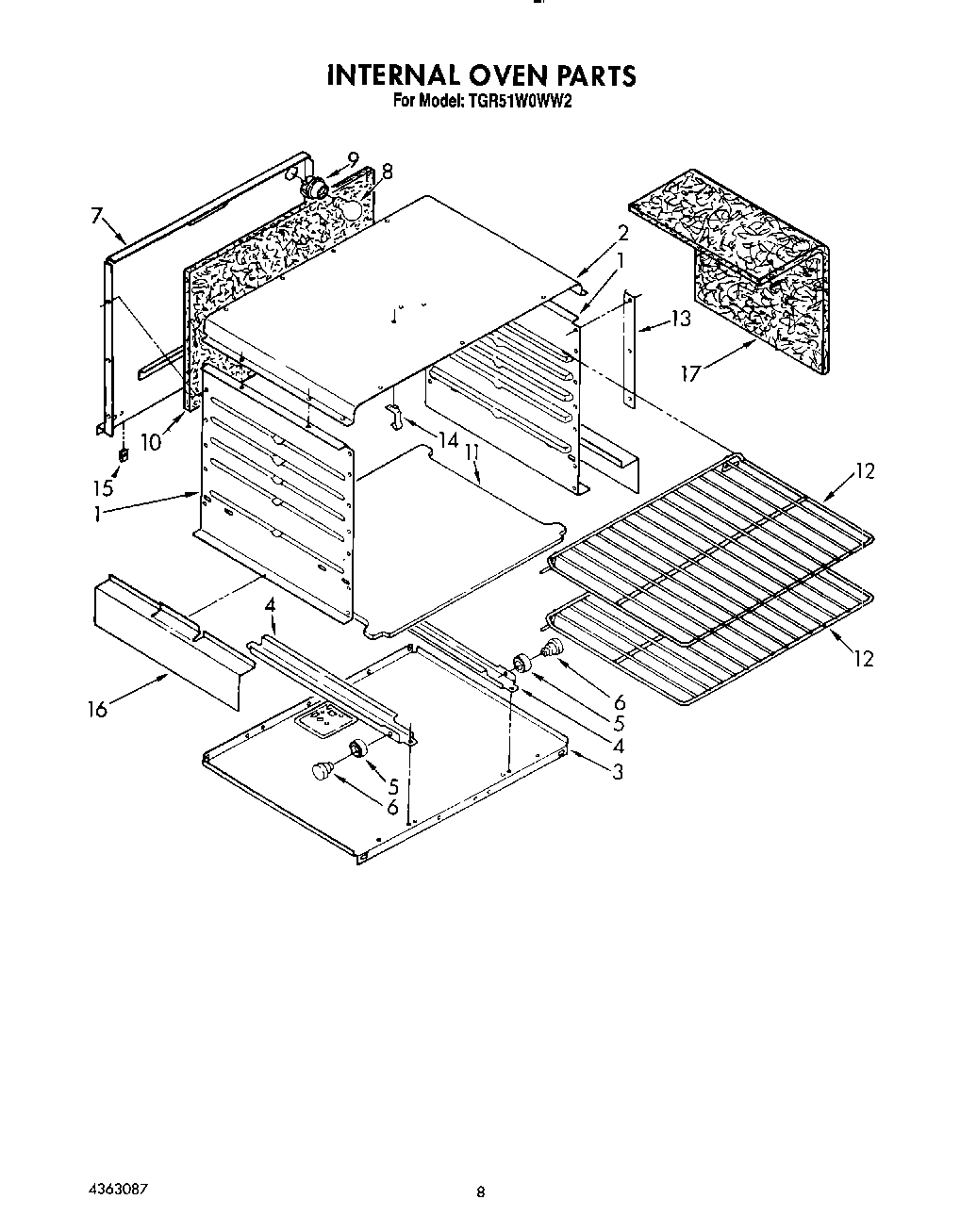

TGR51W0WW2 06 – INTERNAL OVEN

Products

PositionProduct
1Liner, Oven Side (2)
2Liner, Oven Top
3Baffle, Bottom
4Track, Broiler (Left Hand)
4Track, Broiler (Right Hand)
4WP308685 Whirlpool Microwave Screw
5Roller (2)
6Roller Pin (2)
7Liner, Oven Back
8RANGE ONLY 40W 120V APPL BULB
9Receptacle, Light
10WPW10208653 Whirlpool Insulation
11Bottom, Oven
12Rack, Oven (2)
13Support, Liner (2)
1498005642 Whirlpool Clip
15Clip, Speed
16Shield, Radiation
