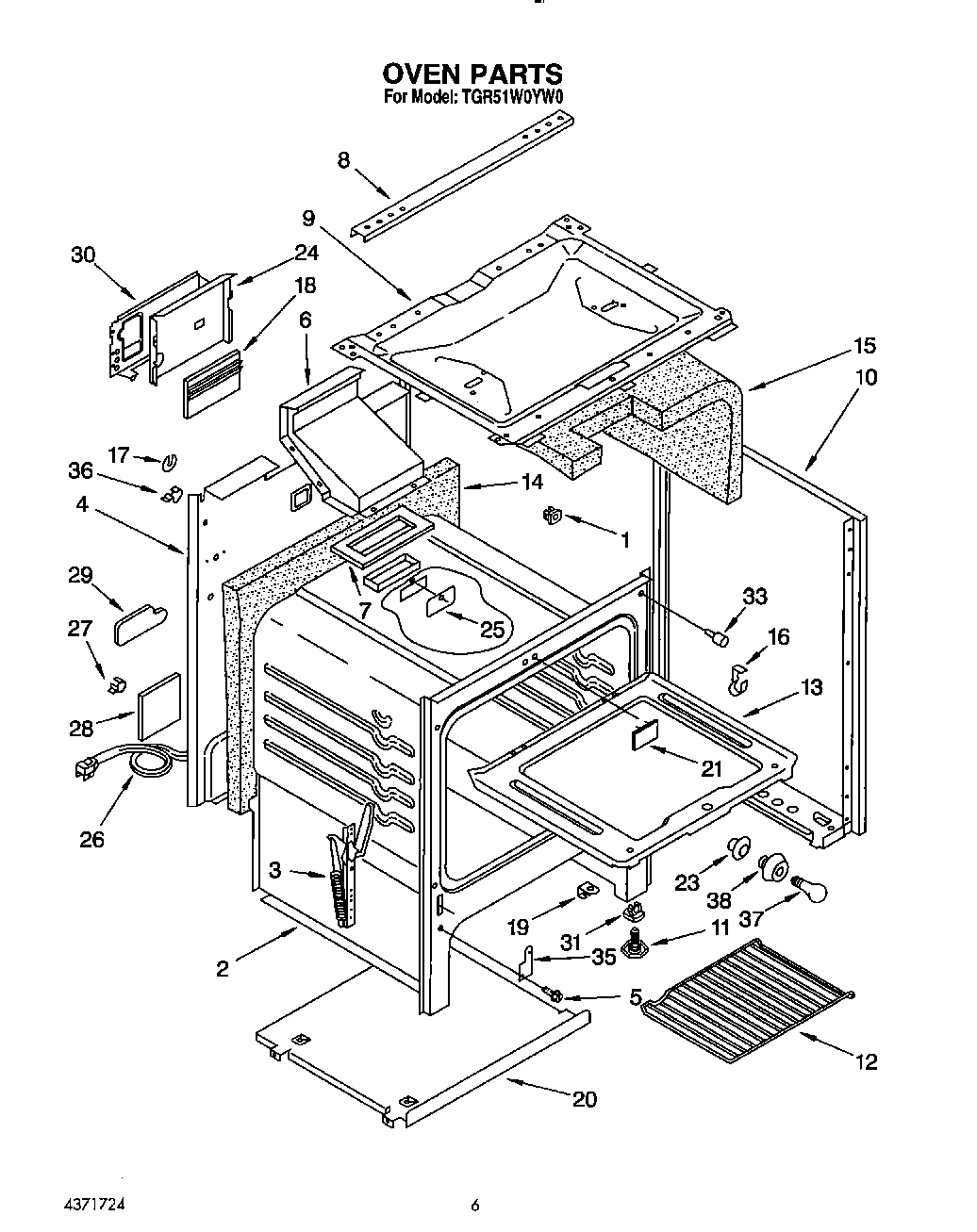

TGR51W0YN0 05 – OVEN

Products

PositionProduct
1Spacer, Body (8)
2Liner, Oven (Not a Serviceable Part)
3Hinge, Oven Door
4Back, Main
5Screw, Oven Bottom
6Flue
7Gasket, Flue
8Support, Burner
9Burner, Box
10Panel, Side (Almond LH)
10Panel, Side (White RH)
10Panel, Side (White LH)
10Panel, Side (Almond RH)
11Screw, Leveler (4)
12Rack, Oven (2)
13Bottom, Oven
14Insulation, Back
15WPW10208653 Whirlpool Insulation
16Clip, Thermo Bulb
17Fastener, U Type
18Cover, Flue
19Support, Oven Bottom
20Base, Broiler
21Cover, Front
23Housing, Oven Light
24Shield, Flue
25Plate, Cover
26Cord, Power
27Fastener, Cord
28Cover, Power Cord
29Cover, Top Rear
30Shield, Rear Wall
31Fastener, T Nut (4)
33Bumper, Front (4)
35Cover, Hinge
36Clip, Wire
37RANGE ONLY 40W 120V APPL BULB
38W10856866 Whirlpool Light Socket
