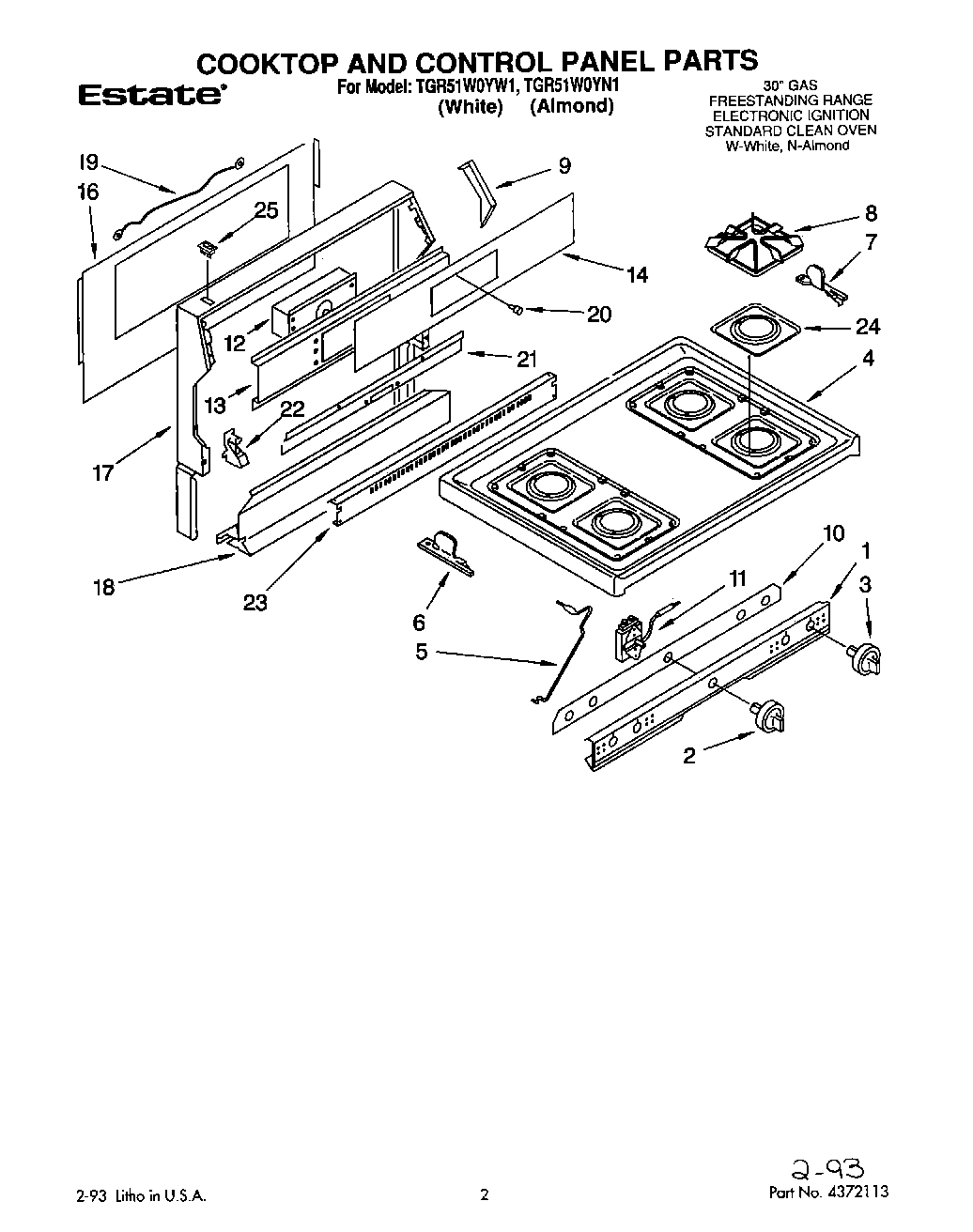

TGR51W0YN1 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Installation, Instructions
1Panel, Manifold
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Almond)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cap, End (L.H.)
9Cap, End (R.H.)
10Cover, Manifold
11Thermostat, Oven
12Clock
13Bracket, Timer
14Panel, Control
16Shield, Rear Wall
17Trim, Wrapper
18Trim, Splasher (White)
18Trim, Splasher (Almond)
19Cable, Anti-Tip
20Knob, Clock
21Retainer, Timer
22Brace, Backguard
23Trim, Vent
24Pan, Burner
25WP4314961 Whirlpool Lite Switch
