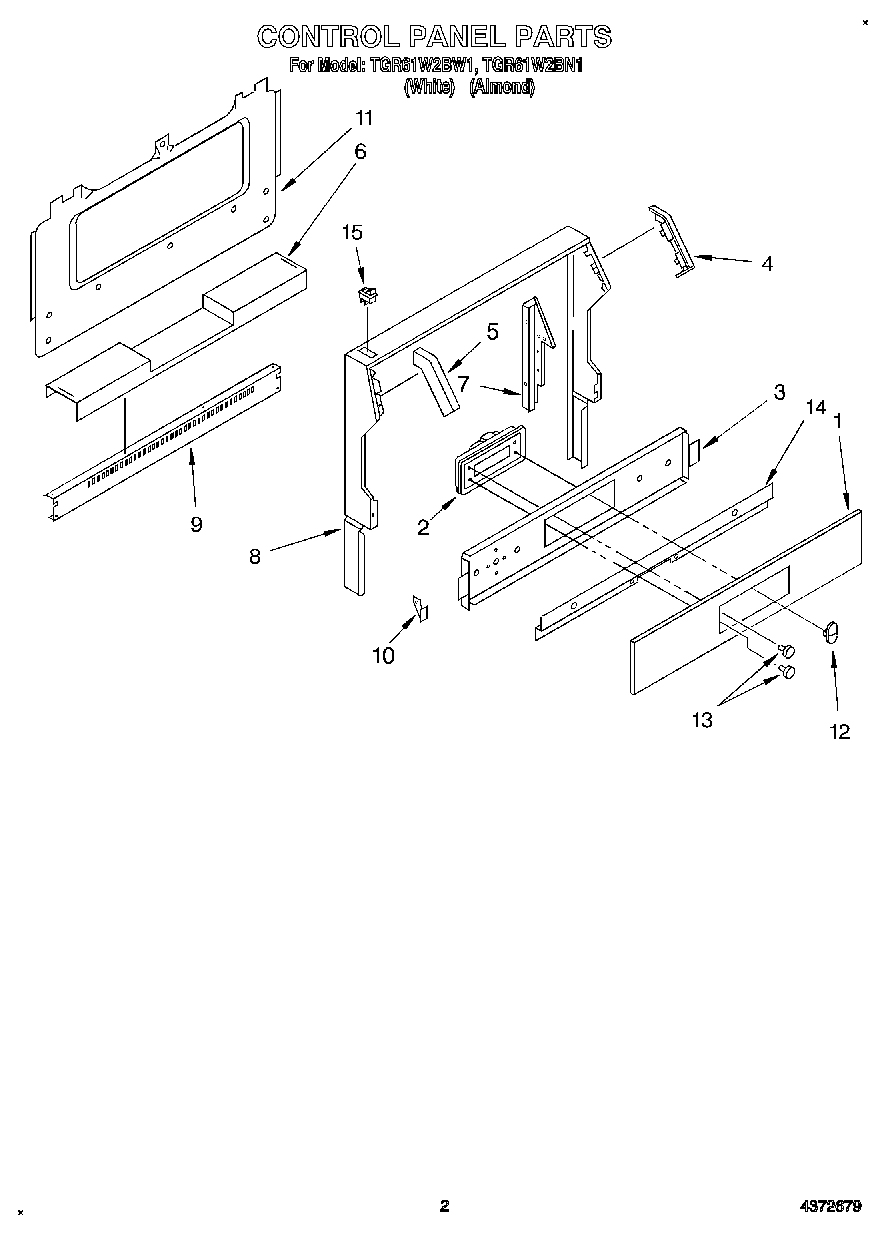

TGR61W2BN1 02 – CONTROL PANELadmin2025-04-26T12:24:51+00:00TGR61W2BN1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control |
| 2 | Clock |
| 3 | Bracket, Timer |
| 4 | Cap, End (R.H.) |
| 5 | Cap, End (L.H.) |
| 6 | Deflector, Flue |
| 7 | Support, Control Panel (R.H.) |
| 7 | Support, Control Panel (L.H.) |
| 8 | Trim, Wrapper |
| 9 | Trim, Vent |
| 10 | Cap, Filler |
| 11 | Shield, Rear Wall |
| 12 | Button, Timer |
| 13 | Button, Set (2) |
| 14 | Retainer, Timer |
| 15 | Switch, Rocker |
