TGR61W2BN2 01 – COOKTOP, LITERATURE

TGR61W2BN2 01 – COOKTOP, LITERATURE

Written by

in

TGR61W2BN2 01 – COOKTOP, LITERATURE

Products

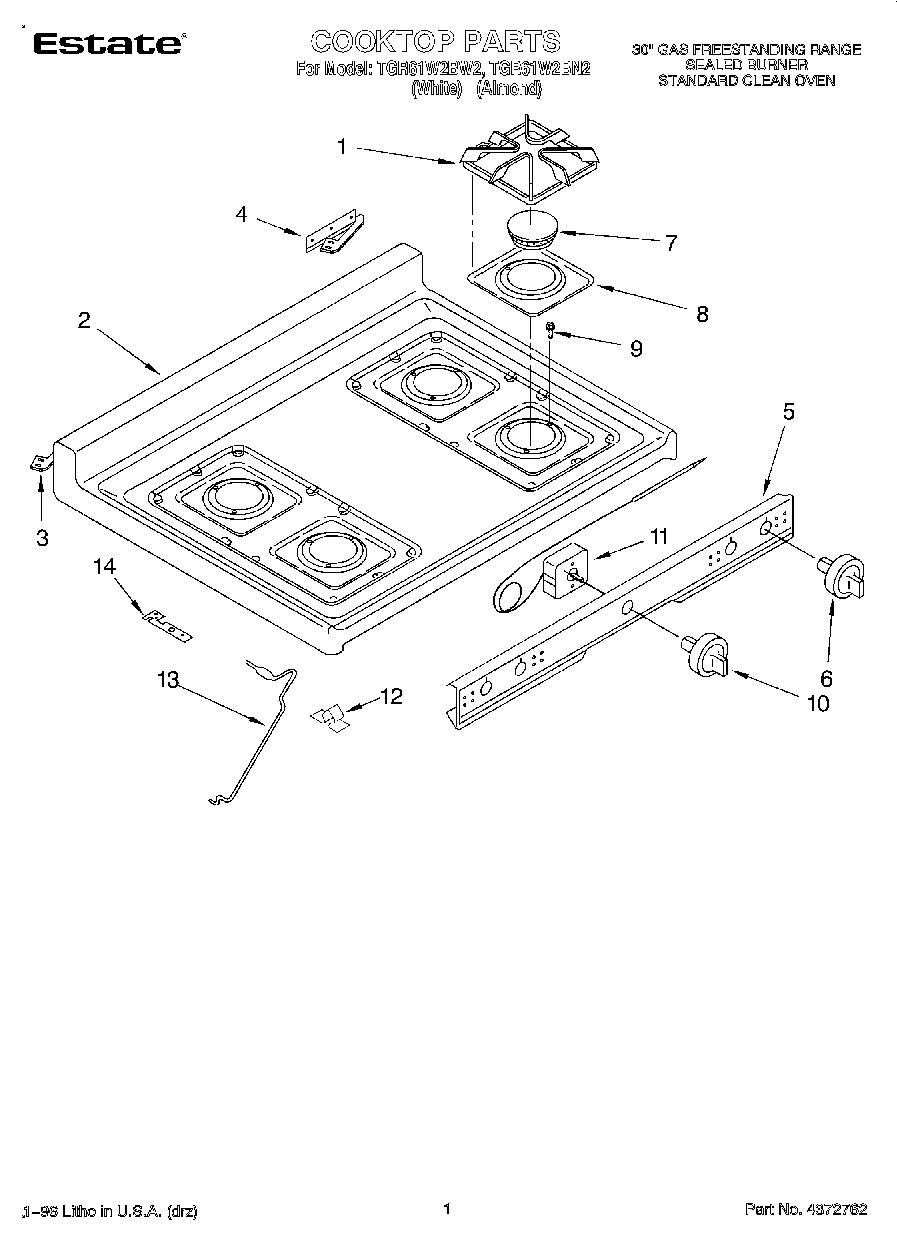

PositionProduct
Guide, Use & Care
Instructions, Installation
1Grate, Burner (4)
2Top, Main (Almond)
2Top, Main
3Bracket, Hinge (Left Side)
4Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (4)
8Pan, Burner (4)
9Screw, Burner Mtg.
10Knob, Thermostat
11Thermostat, Oven
12Clip, Top Mtg.
13Rod, Support Top
14Bracket, Mounting (L.H.)
14Bracket, Mounting (R.H.)
