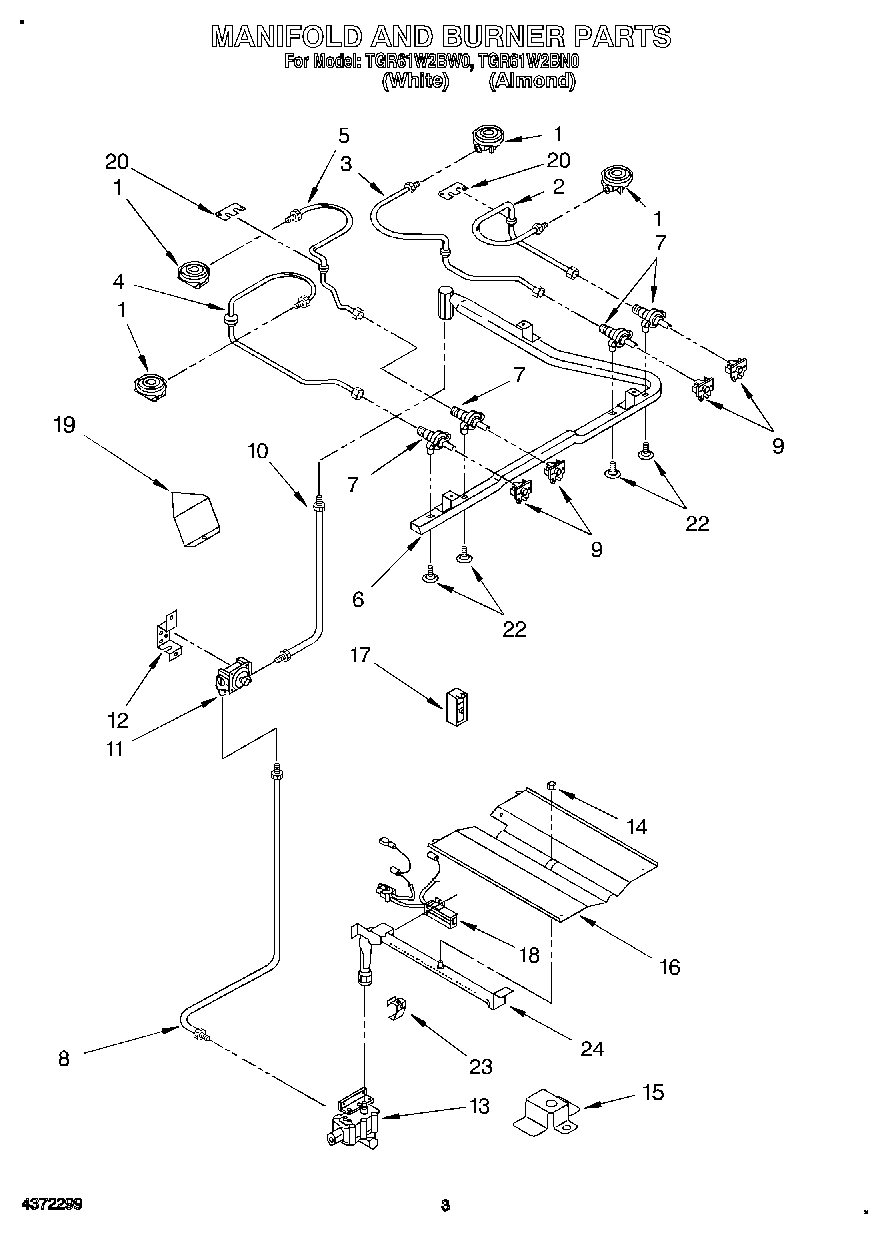

TGR61W2BW0 03 – MANIFOLD AND BURNERadmin2025-04-26T12:25:01+00:00TGR61W2BW0 03 – MANIFOLD AND BURNER
Products
| Position | Product |
|---|
| 1 | Burner, (4) |
| 2 | Tubing, Burner (RF) |
| 3 | Tubing, Burner (RR) |
| 4 | Tubing, Burner (LF) |
| 5 | Tubing, Burner (LR) |
| 6 | Pipe, Manifold |
| 7 | Valve, Top (4) |
| 8 | Tubing, Valve |
| 9 | Switch, Ignitor (4) |
| 10 | Tubing, Regulator To Manifold Pipe |
| 11 | Control, Regulator |
| 12 | Bracket, Regulator |
| 13 | Valve, Safety |
| 14 | Nut, Hex (2) |
| 15 | Bracket, Valve |
| 16 | Baffle, Oven Burner |
| 17 | Ignitor Module |
| 18 | 814269 Whirlpool Oven Flat Igniter |
| 19 | Shield, Ignitor |
| 20 | Plate, Burner |
| 22 | WP3186217 Whirlpool Screw |
| 23 | Bracket, Burner |
| 24 | Burner, Oven |
