TGR88W2BW0 02 – COOKTOP

Products

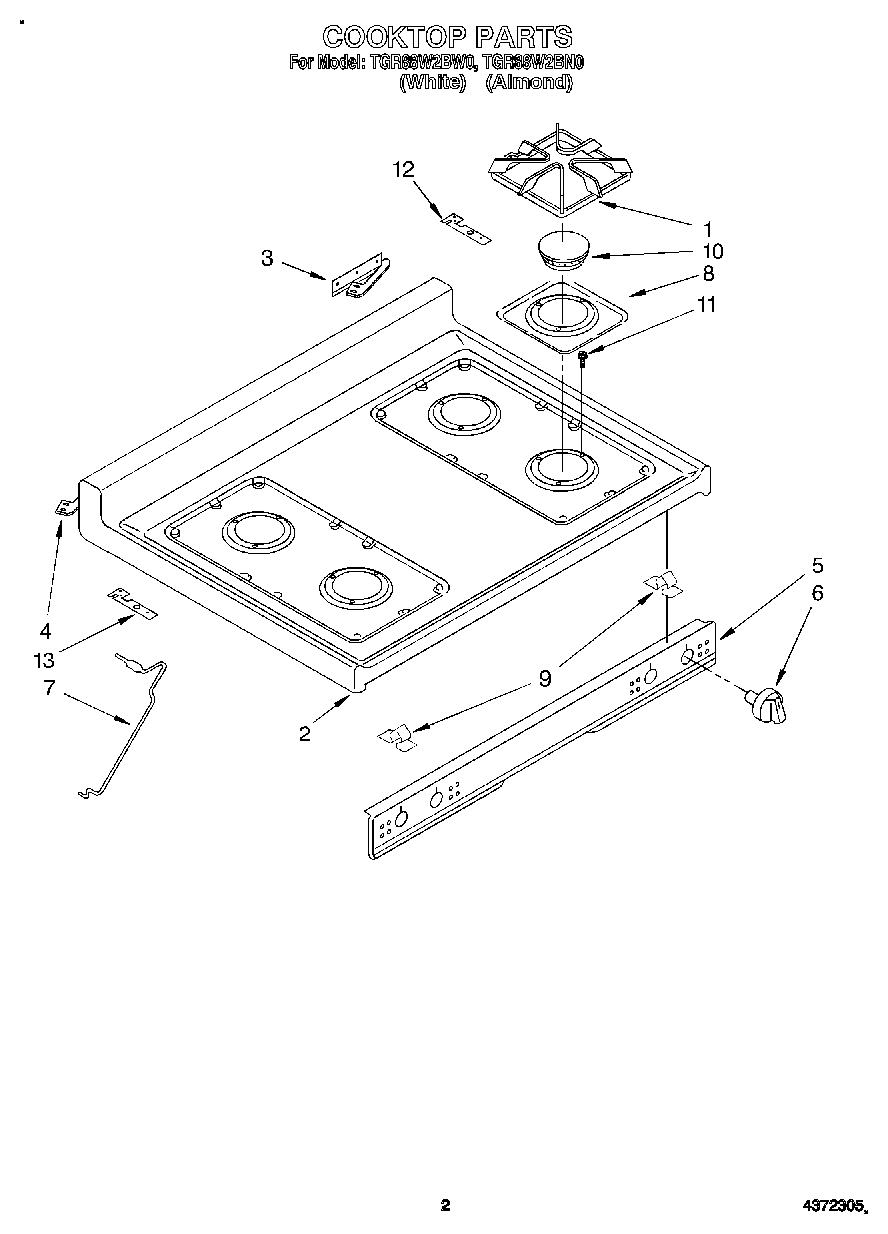

PositionProduct
1Grate
2Top, Main (Almond)
2Top, Main
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
