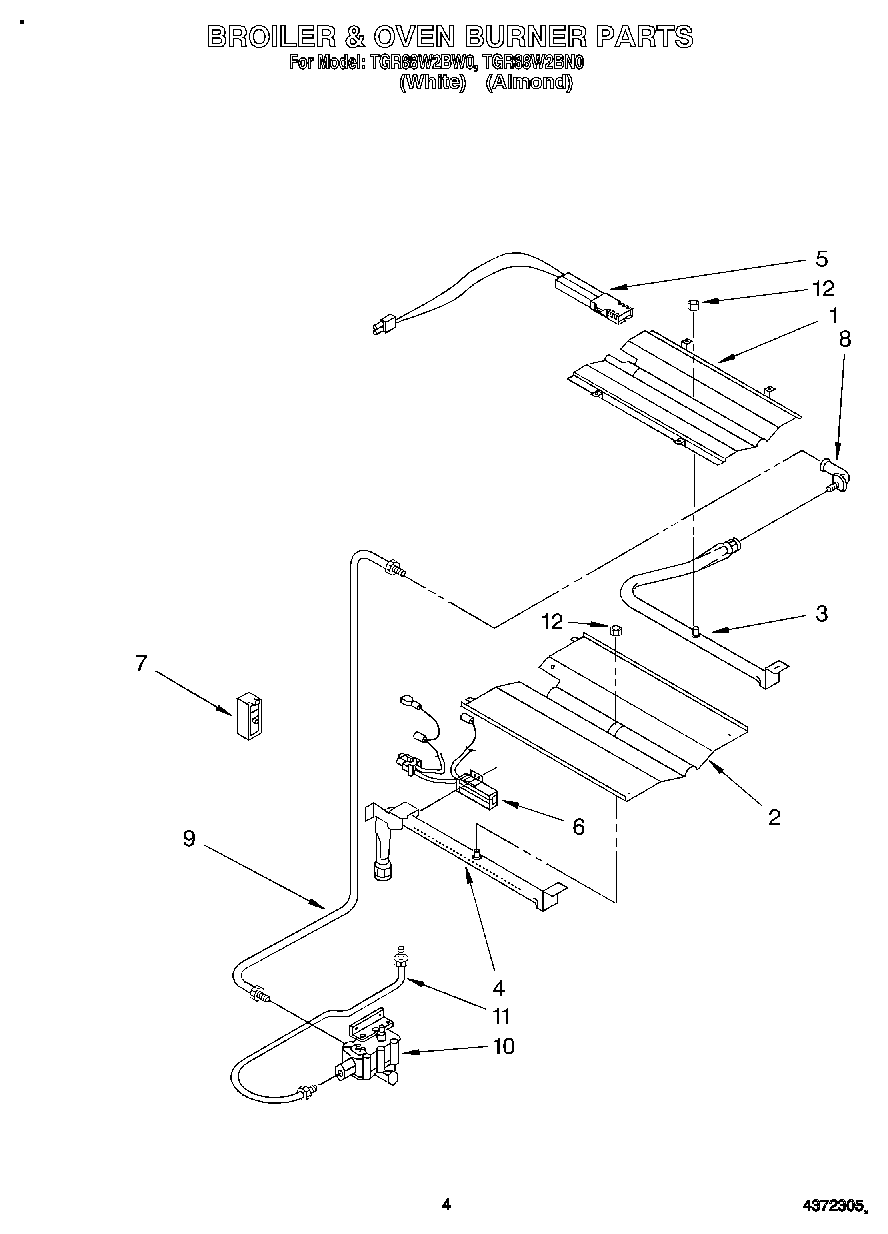

TGR88W2BW0 04 – BROILER & OVEN BURNER

Products

PositionProduct
1Baffle, Broiler Burner
2Baffle, Oven Burner
3Burner, Broiler
4Burner, Oven
5WP9751123 Whirlpool Oven Igniter
6814269 Whirlpool Oven Flat Igniter
7Ignitor Module
8Mixer, Elbow
9Tubing, Valve To Mixing Elbow
10Valve, Safety
11Tubing, Valve To Regulator
12Nut, Hex (2)
