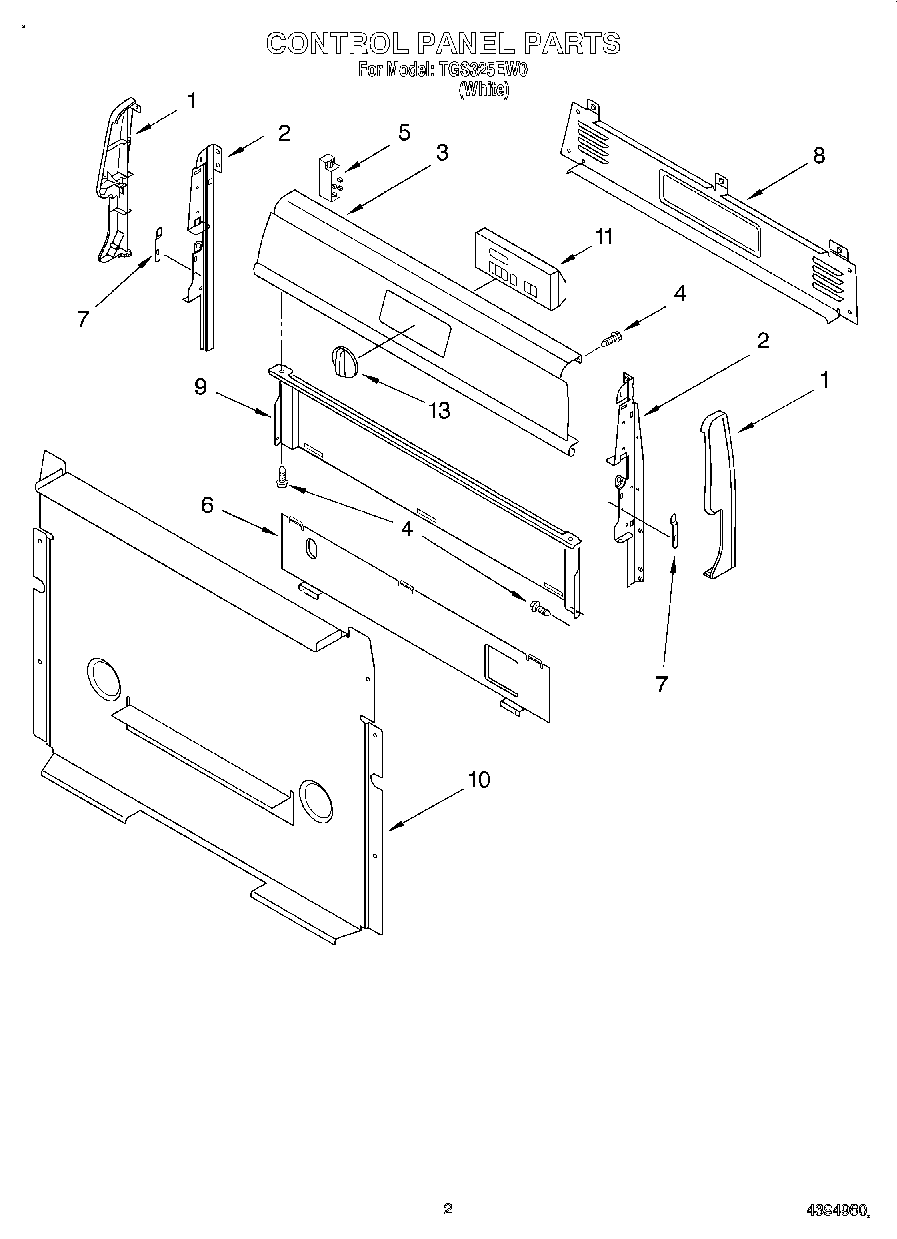

TGS325EW0 02 – CONTROL PANELadmin2025-04-26T12:23:57+00:00TGS325EW0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Endcap (Black Left Hand) |
| 1 | Endcap, Right Hand (Black) |
| 2 | Support, Endcap (Left Hand) |
| 2 | Support, Endcap (Right Hand) |
| 3 | Panel, Control |
| 5 | WPY706189 Whirlpool Stove Screw |
| 5 | Module, Spark |
| 6 | 8053505 Whirlpool Oven Shield |
| 7 | 3196200 Whirlpool Clip |
| 8 | Cover, Upper |
| 9 | Shield, Heat |
| 9 | Screw |
| 10 | Cover, Lower |
| 11 | SCREW |
| 11 | Control, Oven |
| 13 | Knob, Thermostat |
