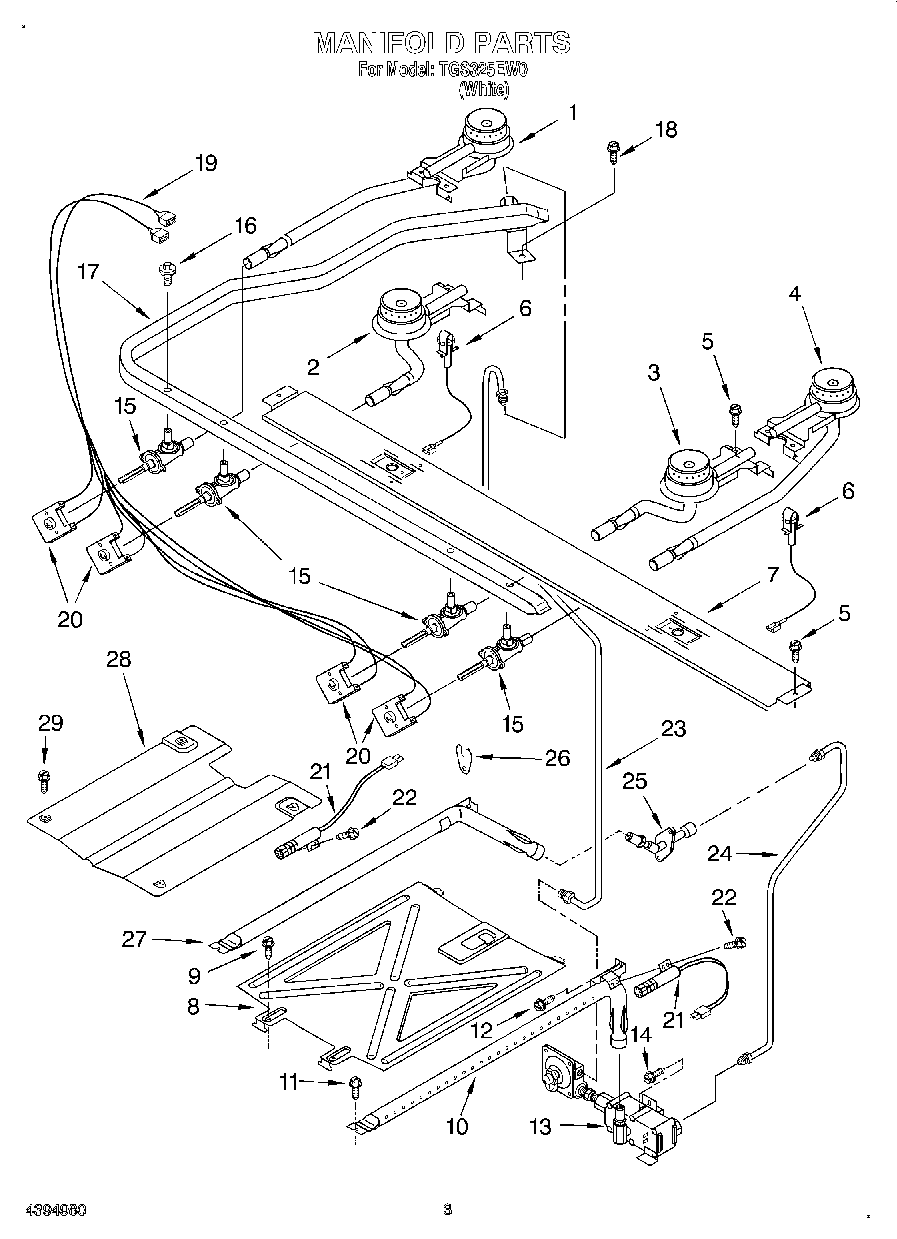

TGS325EW0 03 – MANIFOLD

Products

PositionProduct
1Burner (Left Rear)
2Burner, Left Front
3Burner (Right Front)
4Burner (Right Rear)
5W10491985 Whirlpool Screw
6Igniter, Surface (Right Hand)
6Ignitor, Surface (Left)
7Support, Burner
8Spreader, Flame
10Burner, Oven
13Valve, Gas Combo
13WP3196183 Whirlpool Screw
15Valve, Burner (4)
16WP3186217 Whirlpool Screw
17Pipe, Manifold
19Harness, Igniter (Incl. Switches)
20Switch, Igniter (4)
21Igniter, Bake/Broil
22W11684507 Whirlpool Screw
23Tubing (Manifold to Regulator)
24Tubing (Valve To Broiler Fitting)
25Fitting, Broiler
26Cover, Igniter
27Burner, Broiler
273196265 Whirlpool Oven Screw
28W10137062 Whirlpool Burner Baffle
29SCREW
