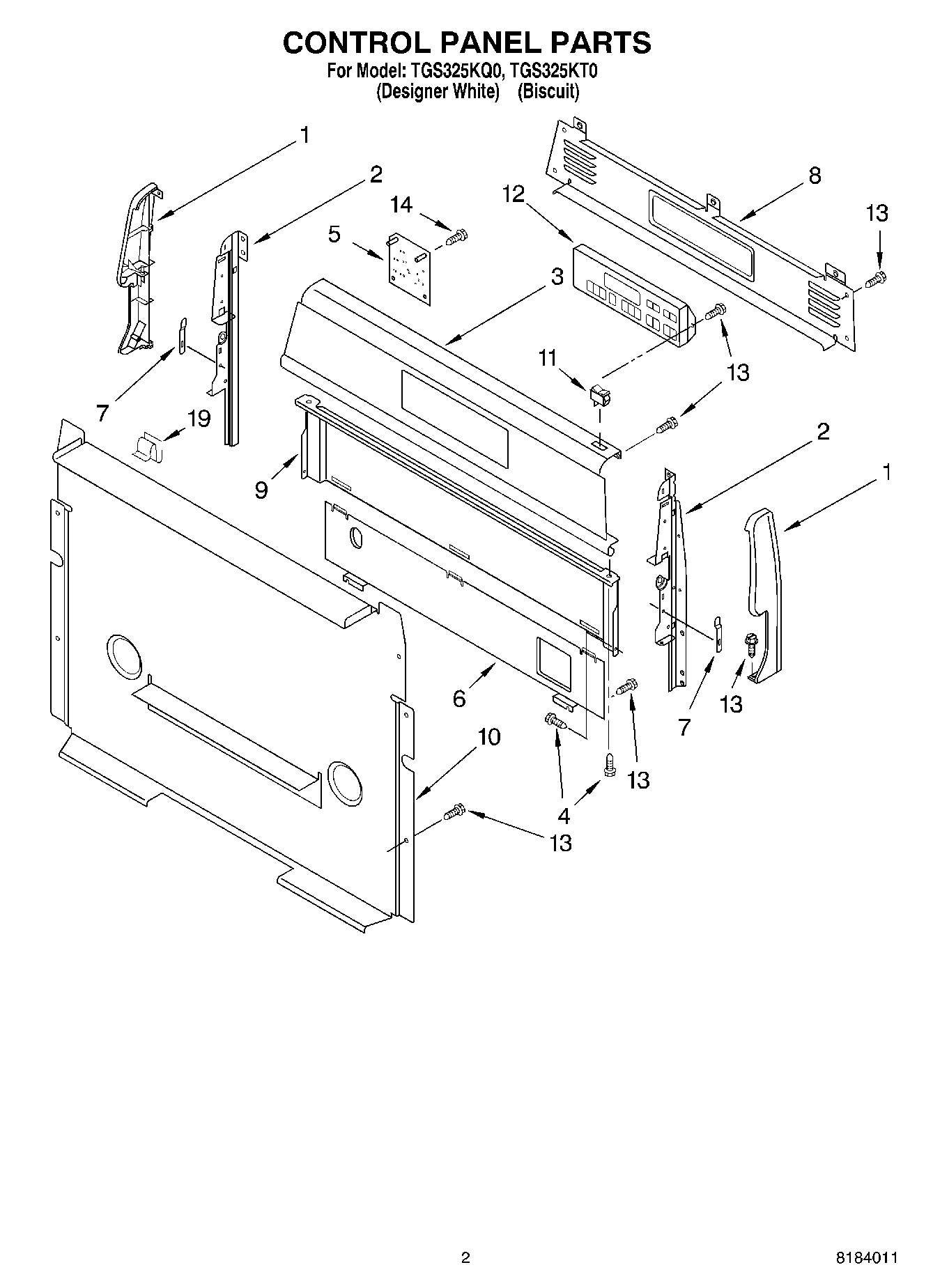

TGS325KQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
113149360 Whirlpool Light Switch
11Switch, Rocker (Biscuit)
12Control, Range (White)
12Control, Range (Biscuit)
13SCREW
14WP3196557 Whirlpool Screw
19WP8273564 Whirlpool Clip
