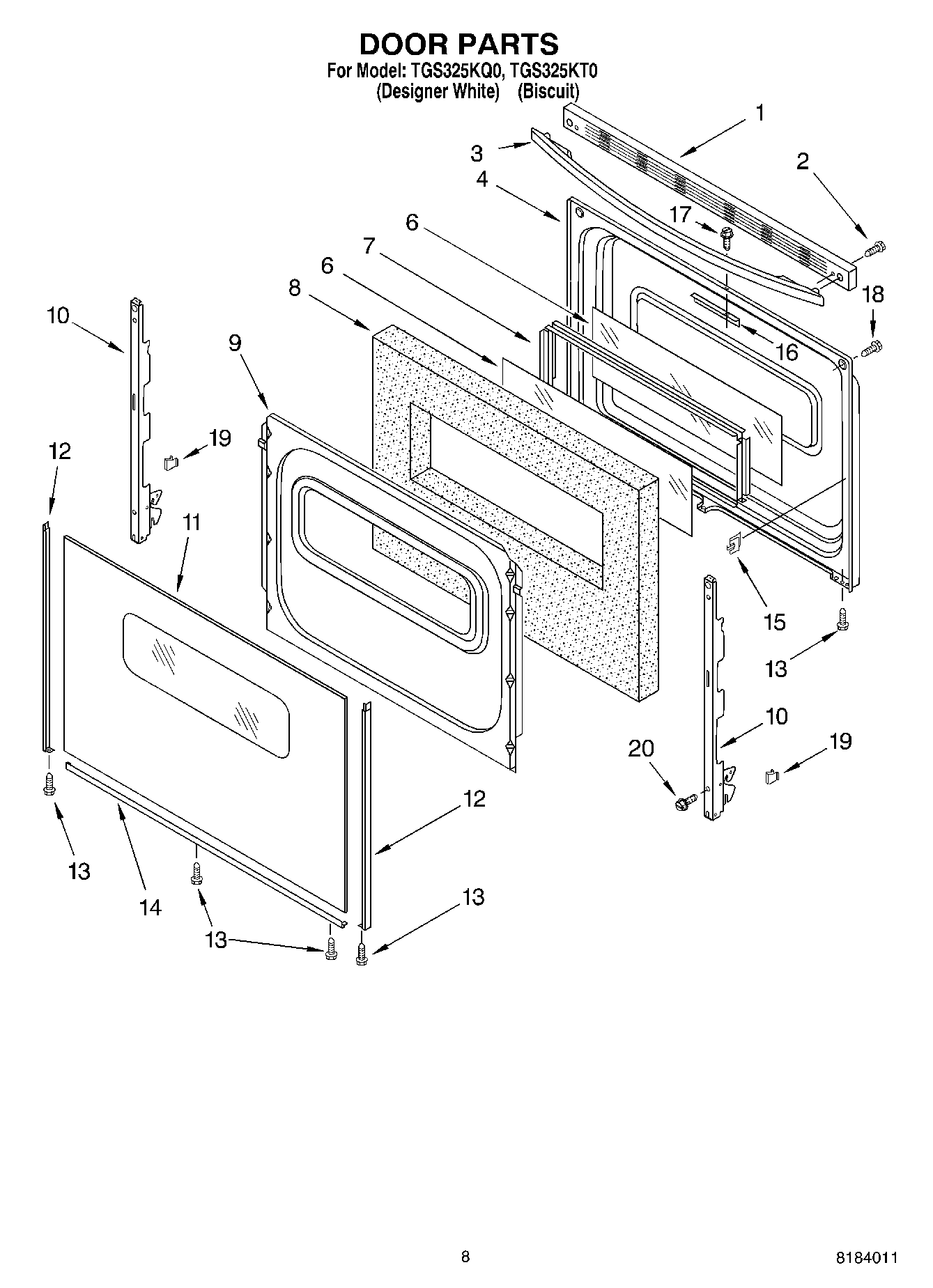

TGS325KT0 06 – DOOR, OPTIONAL

Products

Position	Product
1	Trim, Top (Biscuit)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Door (Biscuit)
11	WP9762476 Whirlpool Door Glass
13	W10491985 Whirlpool Screw
14	8184860 Whirlpool Oven Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	3196696 Whirlpool Clip
20	Grease
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	8212471 Whirlpool Oven Paint
20	3196896 Whirlpool Clip
20	350942 Whirlpool Spray Paint
20	WPL 8053527
20	WPL 8273897
20	WPL 8274195
20	WPL 8273901
20	1
20	Wire (14 Ga. 200 c Brown)
20	Wire, 25` Roll (Black 14 Ga.)
20	WP3196175 Whirlpool Screw
20	FOIL, ALUMINUM OVEN (18`` X 25 )
20	WPW10208653 Whirlpool Insulation
20	WPL 799832
20	511873 Whirlpool Refrigerator Paint
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25`` Roll (White 14 GA.)
20	285006 Whirlpool Spray
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	16515 Whirlpool Clip
20	3400964 Whirlpool Oven Clip
20	814381 Whirlpool Pin
20	350930 Whirlpool White Spray Paint
