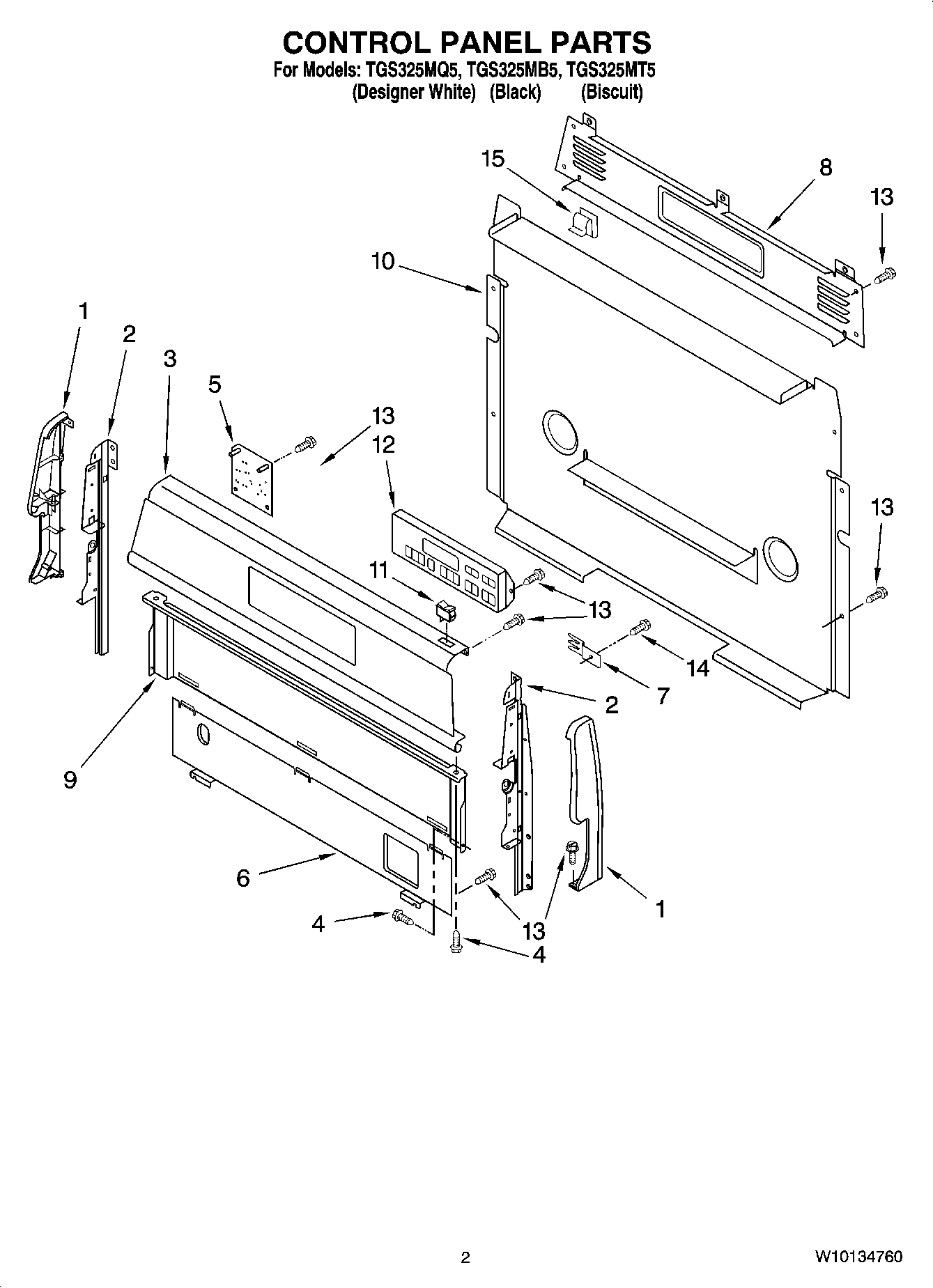

TGS325MQ5 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap, Right Hand (Black)
1	Endcap (Black Left Hand)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
1	Endcap (Biscuit Left Hand)
1	Endcap (Biscuit Right Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	8523412 Whirlpool Mounting Bracket
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	3149360 Whirlpool Light Switch
11	Switch, Rocker (Biscuit)
11	WP4314961 Whirlpool Lite Switch
12	WP6610455 Whirlpool Electronic Control Board
12	Control, Range (White)
12	Control, Range (Biscuit)
13	SCREW
14	WP3196557 Whirlpool Screw
15	WP8273564 Whirlpool Clip
