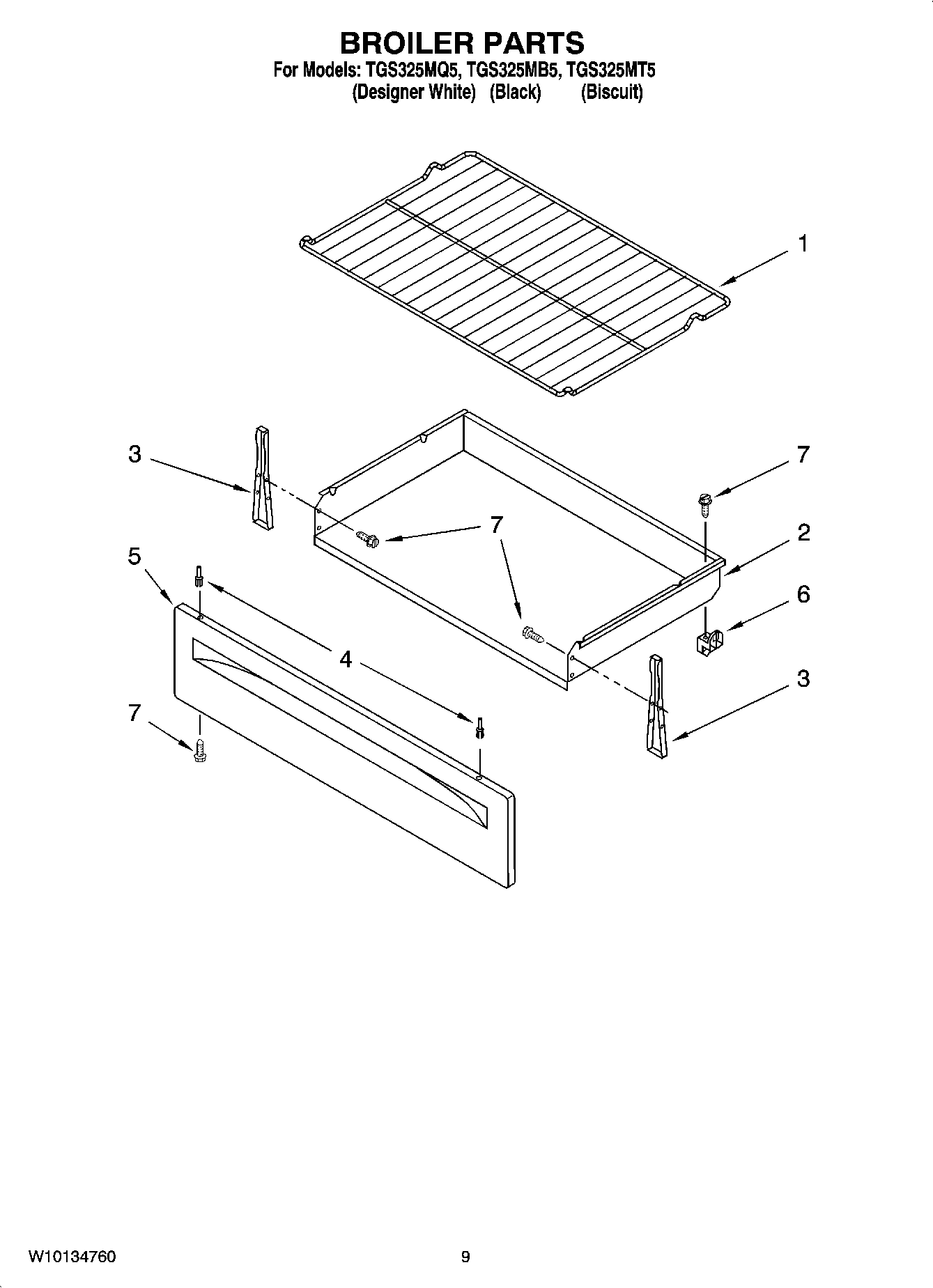

TGS325MQ5 06 – BROILER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI164559A
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	3196696 Whirlpool Clip
	Grease
	WPL ARI164558A
	WPL ARI164557A
	WPL ARI164556A
	WPL ARI164555A
	WPL 9758205
	WPL 8524207
	8523599 Whirlpool Oven Wire Harness
	WPL ARI164560A
	3196896 Whirlpool Clip
	242831 Whirlpool Oven Wire
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	350956 Whirlpool Spray Assembly
	WPL 799832
	72017 Whirlpool Appliance Touch-Up Paint White
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	WP72107 Whirlpool Touchup
	W11447673 Whirlpool Range Tip Anchor
	350930 Whirlpool White Spray Paint
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Storage
3	BRKT-MNTG
4	3196815 Whirlpool Oven Rivet
4	WP3196814 Whirlpool Rivet
4	WP3196813 Whirlpool Rivet
5	PANEL, DRAWER FRONT (BISCUIT)
5	W11230490 Whirlpool Drawer Panel
5	W11230486 Whirlpool Drawer Panel
6	WP8053334 Whirlpool Drawer Glide
7	WP3400832 Whirlpool Screw
