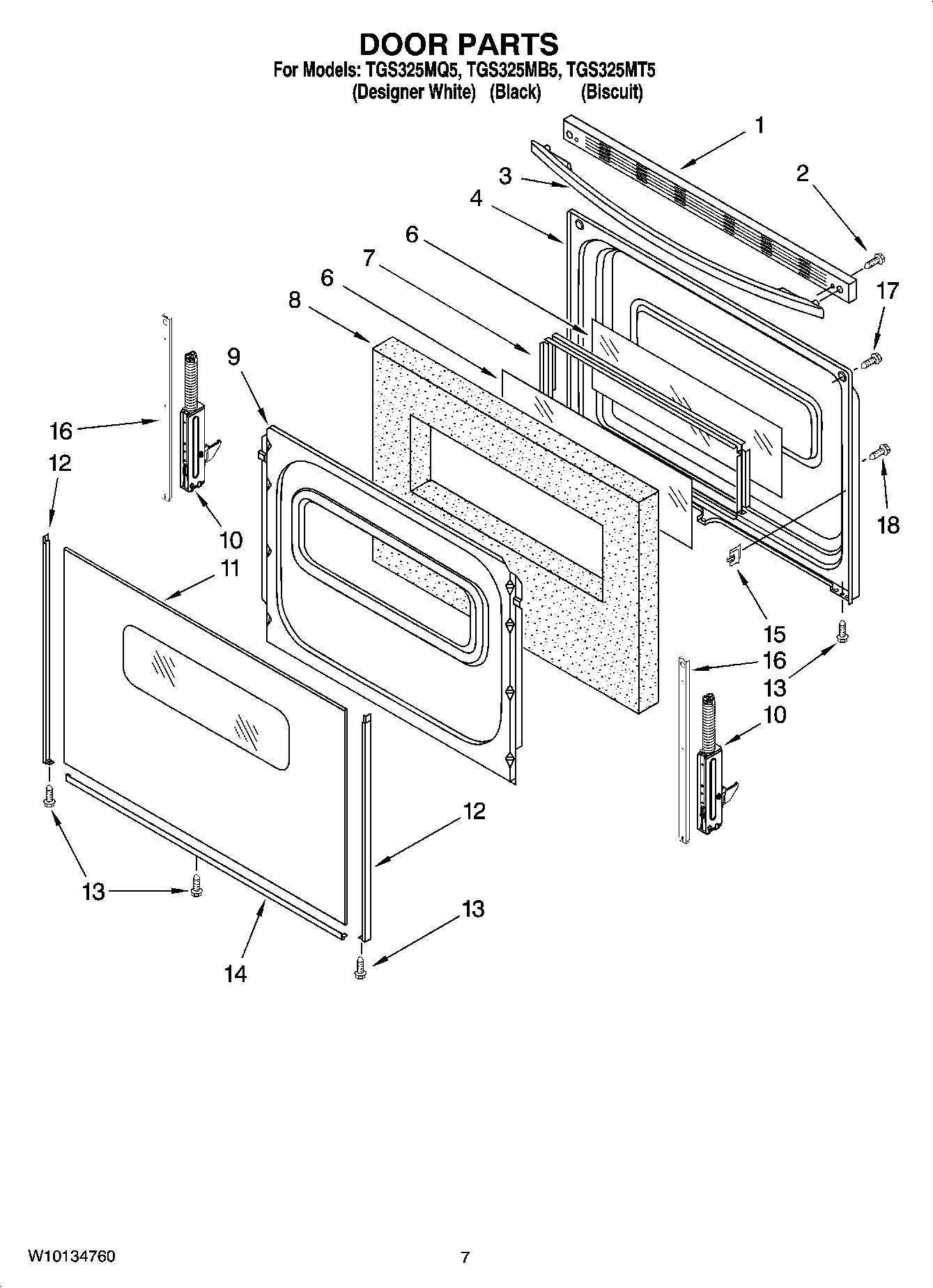

TGS325MT5 05 – DOOR PARTS

Products

Position	Product
1	Trim, Top (Biscuit)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	9761340 Whirlpool Oven Door Liner
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	W10347466 Whirlpool Door Hinge
11	WP9762477 Whirlpool Glass Door
11	WP9762476 Whirlpool Door Glass
11	Glass, Door (Biscuit)
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523178 Whirlpool Door Trim
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
16	W11502236 Whirlpool Door Trim
17	W10777162 Whirlpool Screw
18	WPW10031790 Whirlpool Screw
