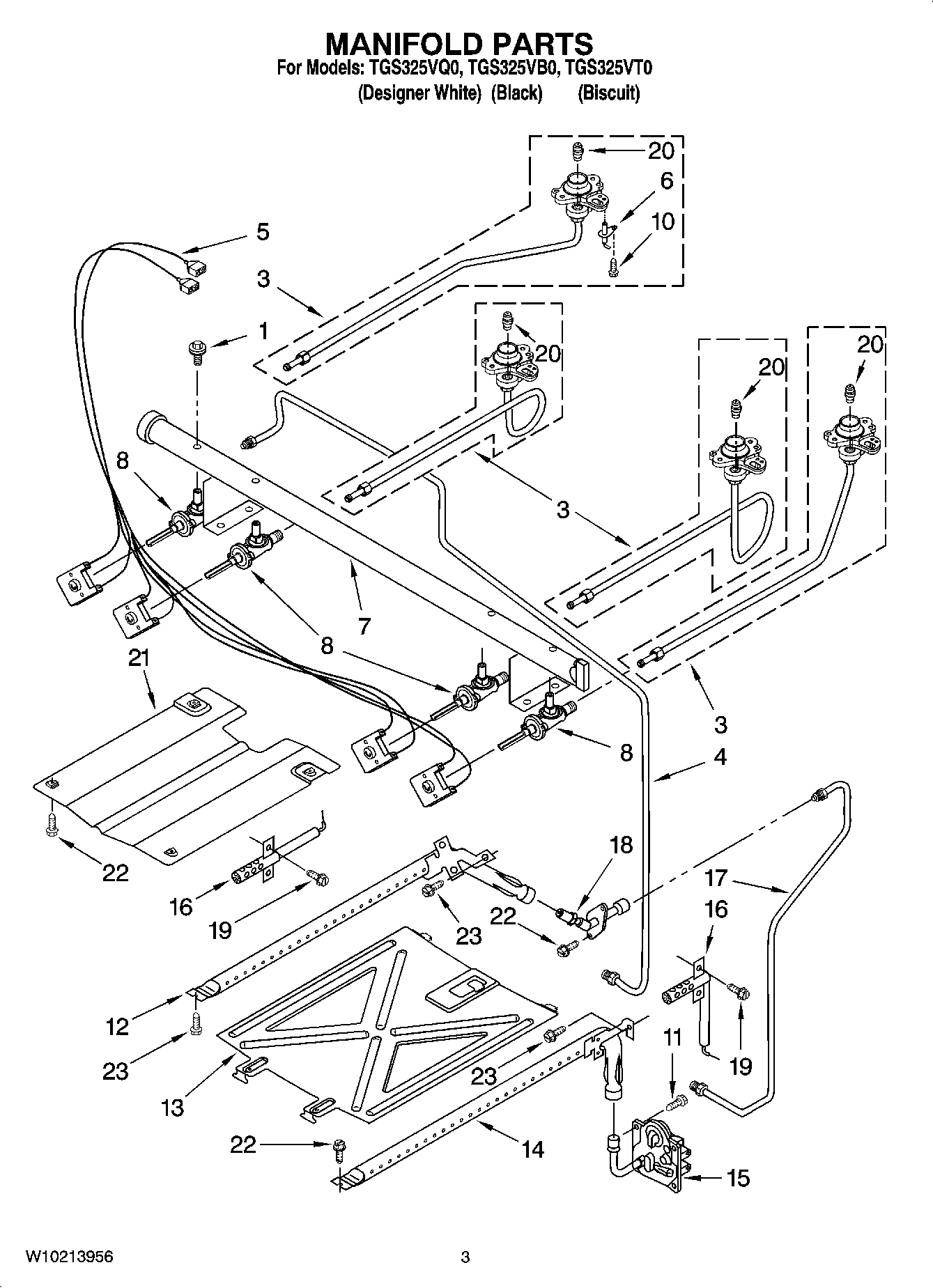

TGS325VB0 03 – MANIFOLD PARTS

Products

Position	Product
	W10170533 Whirlpool Orifice Spud Assembly
	Following Parts Not Illustrated
1	WP8273096 Whirlpool Screw
3	Tubing, Burner W/Orifice (Right Front)
3	Tubing, Burner W/Orifice (Right Rear)
3	Tubing, Burner W/Orifice (Left Rear)
3	Tubing, Burner W/Orifice (Left Front)
4	Tubing (Manifold to Regulator)
5	WPW10295998 Whirlpool Wire Harness
6	WPW10216419 Whirlpool Surface Igniter
7	Pipe, Manifold
8	Valve (Right Rear)
8	WP9757218 Whirlpool Burner Valve
10	WP8273062 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	WPW10293048 Whirlpool Gas Valve
16	WP9758079 Whirlpool Oven Igniter
16	WP8054129 Whirlpool Oven Igniter
17	Tubing (Broiler Fitting To Valve)
18	Fitting, Broiler
19	W11684507 Whirlpool Screw
20	WPW10170507 Whirlpool Orifice
20	WPW10170508 Whirlpool Orifice Spud
20	WPW10170506 Whirlpool Orifice Spud
21	W10137062 Whirlpool Burner Baffle
22	SCREW
23	3196265 Whirlpool Oven Screw
