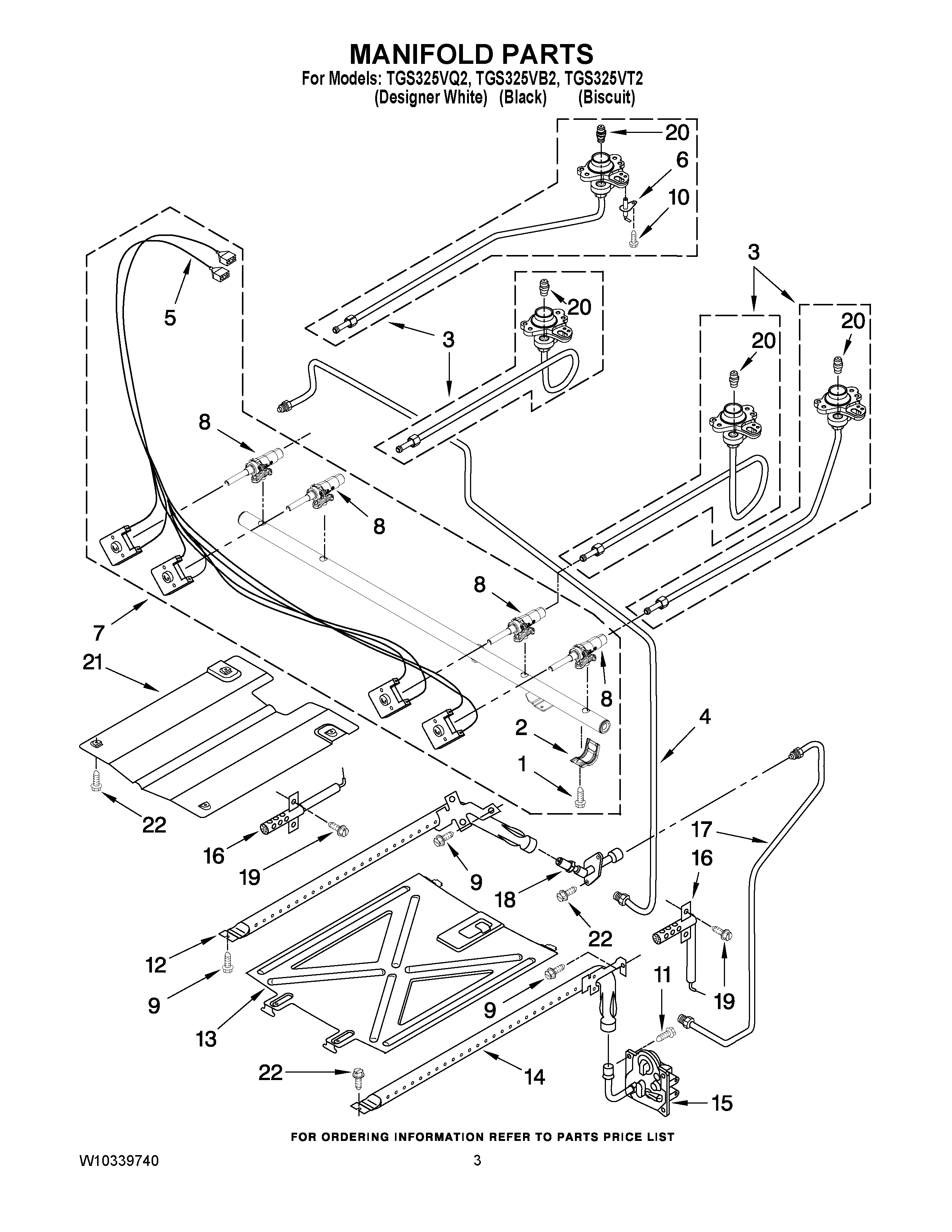

TGS325VB2 03 – MANIFOLD PARTSadmin2025-04-26T12:24:26+00:00TGS325VB2 03 – MANIFOLD PARTS ProductsPositionProductNISPUDS, LP GAS1W10295997 Whirlpool Screw2W10949105 Whirlpool Mounting Bracket3W10201351 Whirlpool Holder Orifice3WPW10175217 Whirlpool Orifice Holder3WPW10201350 Whirlpool Orifice Holder3W10182369 Whirlpool Orifice Holder4TUBING (MANIFOLD TO REGULATOR)5WPW10295998 Whirlpool Wire Harness6WPW10216419 Whirlpool Surface Igniter7W10314242 Whirlpool Manifold Pipe8WPW10247744 Whirlpool Burner Valve8WPW10279614 Whirlpool Burner Valve93196265 Whirlpool Oven Screw10WP8273062 Whirlpool Screw11WP3400016 Whirlpool Screw Assembly12WP8054078 Whirlpool Broiler Burner13WPW10184491 Whirlpool Burner Baffle14WP9758078 Whirlpool Oven Burner15WPW10293048 Whirlpool Gas Valve16WP8054129 Whirlpool Oven Igniter16WP9758079 Whirlpool Oven Igniter17Tubing (Broiler Fitting To Valve)18Fitting, Broiler19W11684507 Whirlpool Screw20WPW10170508 Whirlpool Orifice Spud20WPW10170506 Whirlpool Orifice Spud20WPW10170507 Whirlpool Orifice21W10137062 Whirlpool Burner Baffle22SCREW
