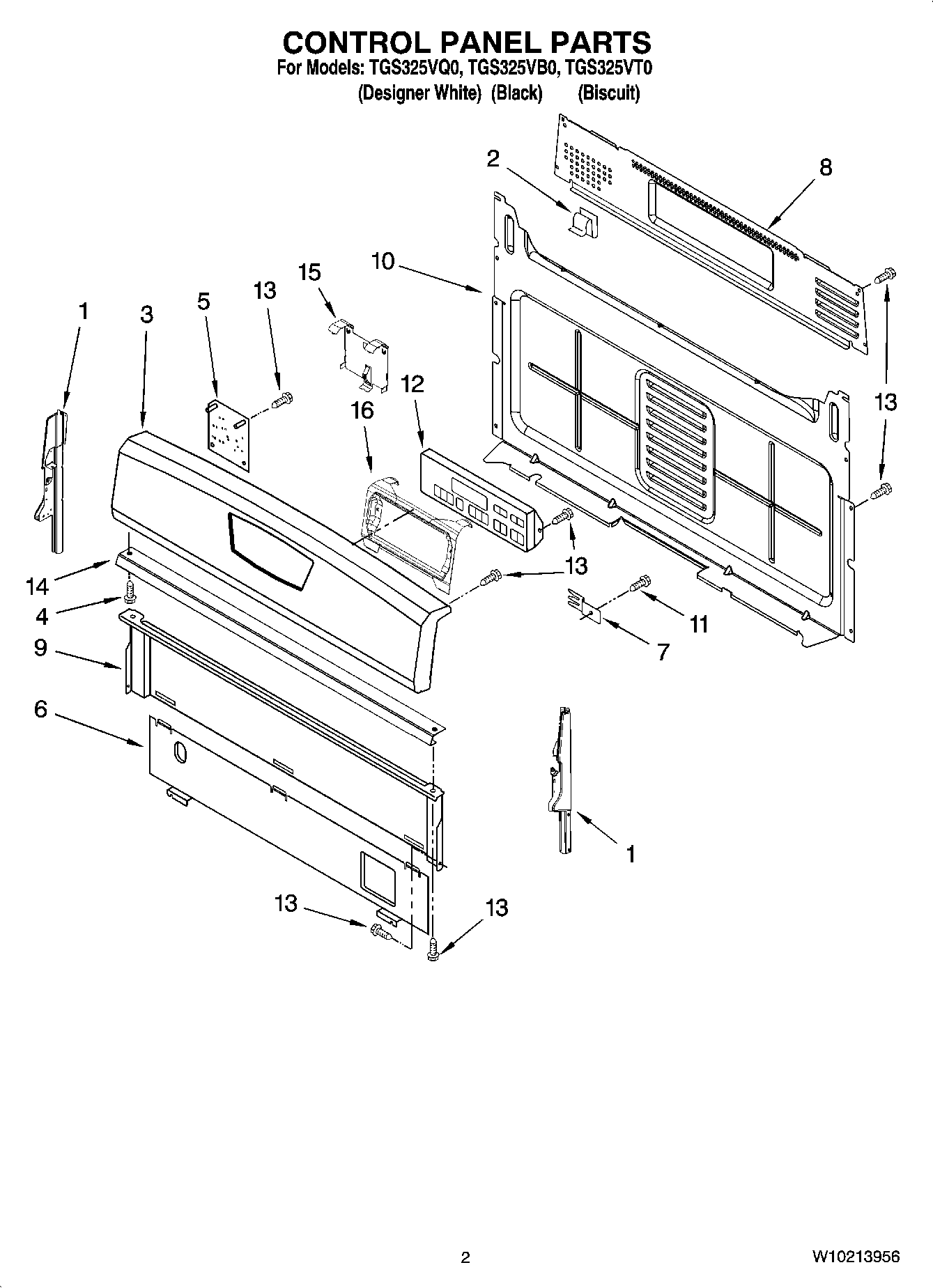

TGS325VQ0 02 – CONTROL PANEL PARTS

TGS325VQ0 02 – CONTROL PANEL PARTS

Written by

in

TGS325VQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11230612 Whirlpool Panel End Cap
1W11230611 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2WP8273564 Whirlpool Clip
3Panel, Backguard (Black)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
43196166 Whirlpool Screw
4WP3400832 Whirlpool Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10COVER, BACK
11WP3196557 Whirlpool Screw
12Control, Range (Black)
12Control, Range (White)
13SCREW
14Brkt-Mntg, Console
15W10516463 Whirlpool Mounting Bracket
16W11230932 Whirlpool Bracket Mounting
