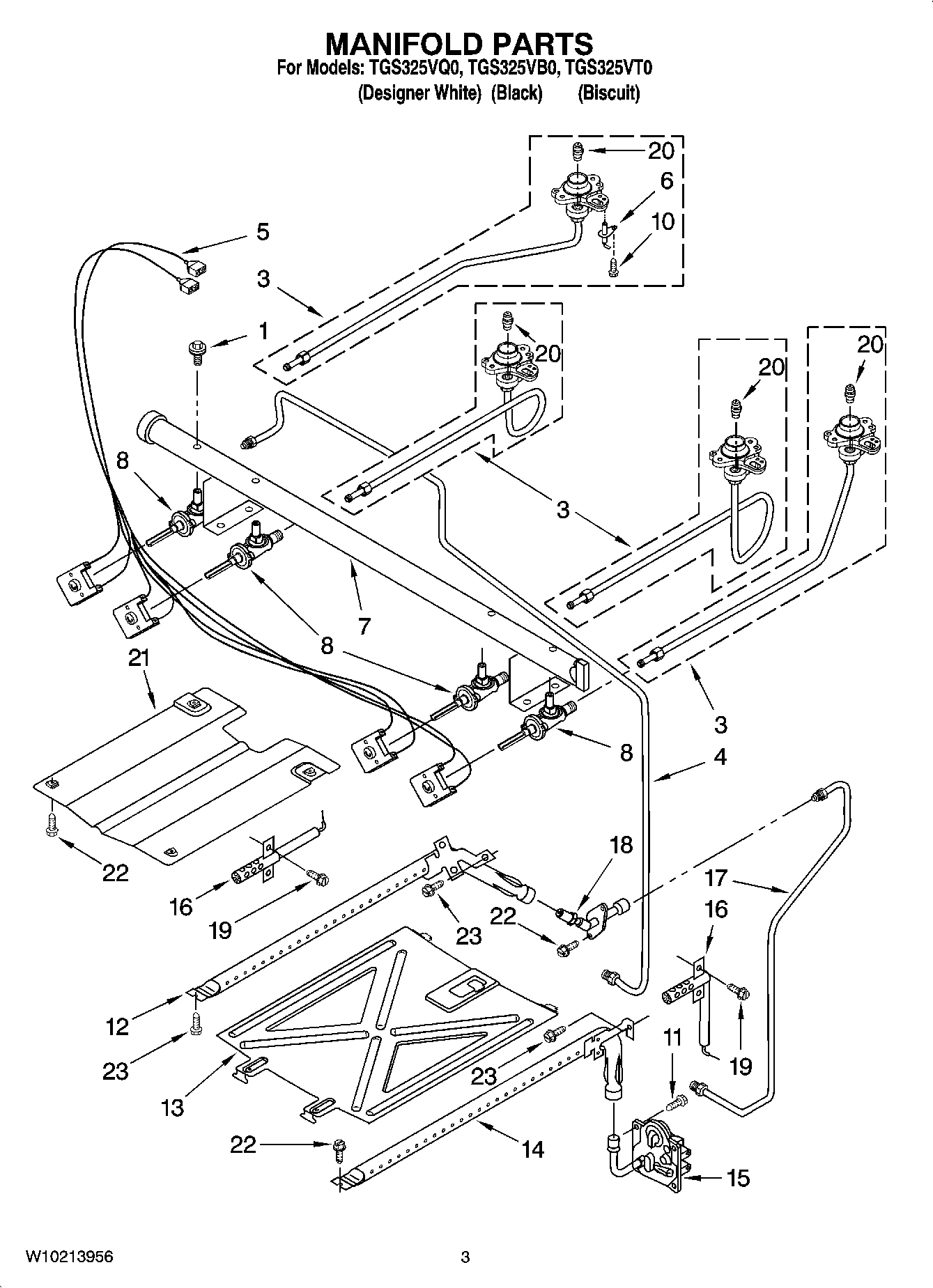

TGS325VQ0 03 – MANIFOLD PARTS

TGS325VQ0 03 – MANIFOLD PARTS

Written by

in

TGS325VQ0 03 – MANIFOLD PARTS

Products

PositionProduct
Following Parts Not Illustrated
W10170533 Whirlpool Orifice Spud Assembly
1WP8273096 Whirlpool Screw
3Tubing, Burner W/Orifice (Right Front)
3Tubing, Burner W/Orifice (Right Rear)
3Tubing, Burner W/Orifice (Left Front)
3Tubing, Burner W/Orifice (Left Rear)
4Tubing (Manifold to Regulator)
5WPW10295998 Whirlpool Wire Harness
6WPW10216419 Whirlpool Surface Igniter
7Pipe, Manifold
8Valve (Right Rear)
8WP9757218 Whirlpool Burner Valve
10WP8273062 Whirlpool Screw
11WP3400016 Whirlpool Screw Assembly
12WP8054078 Whirlpool Broiler Burner
13WPW10184491 Whirlpool Burner Baffle
14WP9758078 Whirlpool Oven Burner
15WPW10293048 Whirlpool Gas Valve
16WP8054129 Whirlpool Oven Igniter
16WP9758079 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
19W11684507 Whirlpool Screw
20WPW10170507 Whirlpool Orifice
20WPW10170508 Whirlpool Orifice Spud
20WPW10170506 Whirlpool Orifice Spud
21W10137062 Whirlpool Burner Baffle
22SCREW
233196265 Whirlpool Oven Screw
