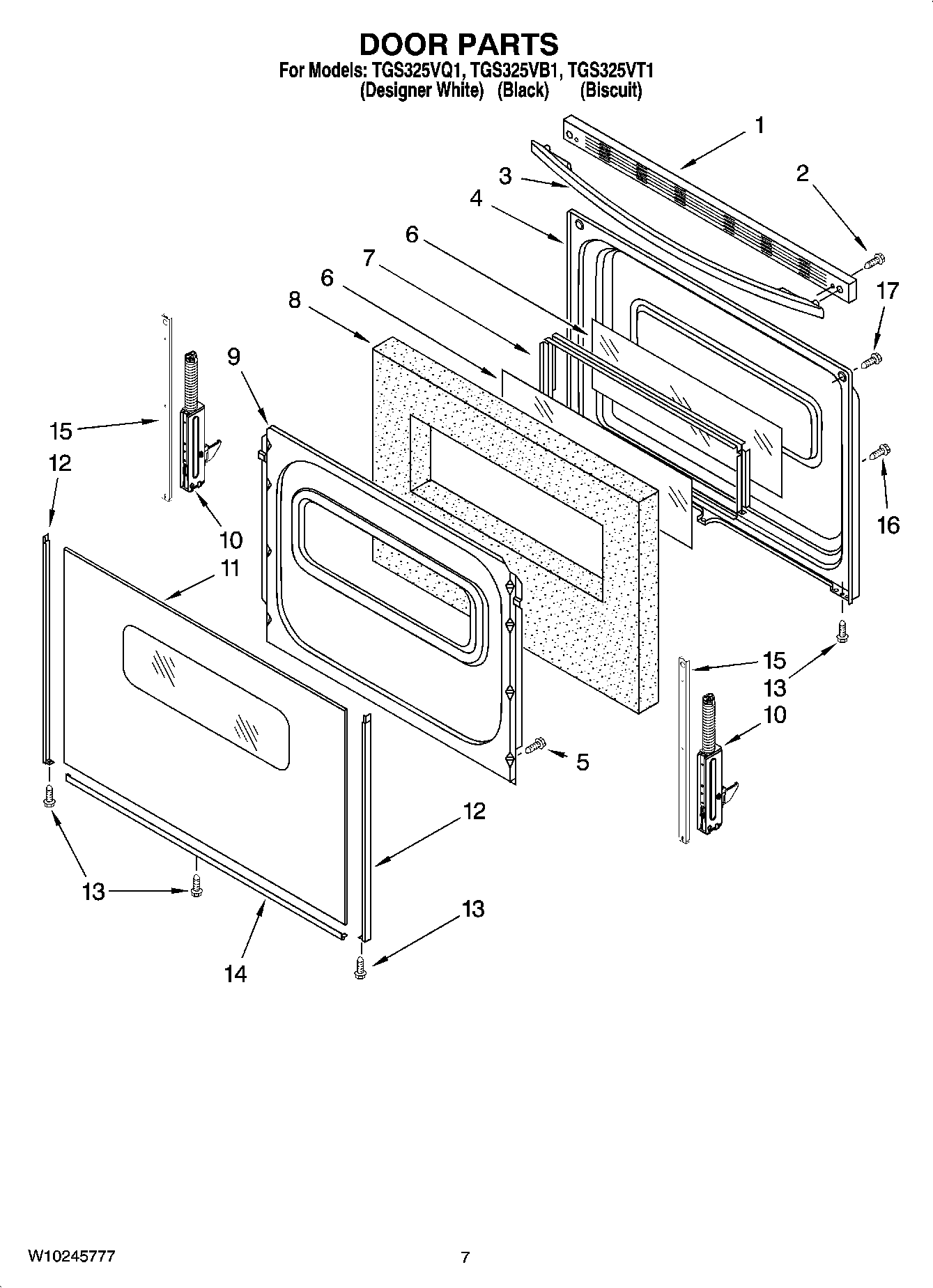

TGS325VQ1 05 – DOOR PARTS

TGS325VQ1 05 – DOOR PARTS

Written by

in

TGS325VQ1 05 – DOOR PARTS

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3WPW10202217 Whirlpool Door Handle
3Handle, Door (Biscuit)
49761340 Whirlpool Oven Door Liner
5WPW10031790 Whirlpool Screw
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8WPW10278991 Whirlpool Insulation
99761499 Whirlpool Oven Retainer
10W10347466 Whirlpool Door Hinge
11WP9762476 Whirlpool Door Glass
11WP9762477 Whirlpool Glass Door
11Glass, Outer (Biscuit)
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14WP8523177 Whirlpool Door Trim Assembly
15W11502236 Whirlpool Door Trim
16W10777162 Whirlpool Screw
17WPW10200660 Whirlpool Range Oven Door Handle Screw
