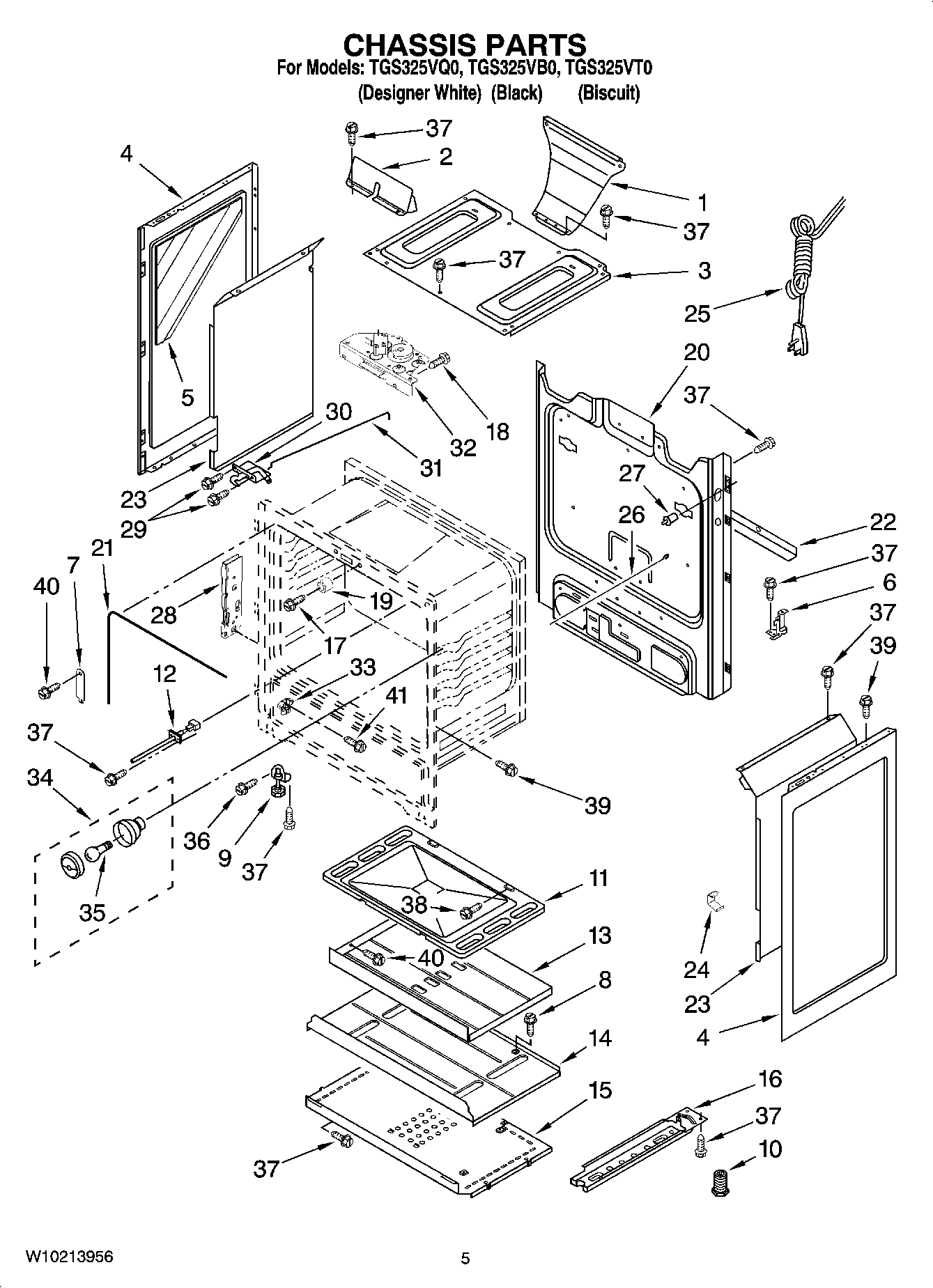

TGS325VT0 04 – CHASSIS PARTS

Products

PositionProduct
W11684915 Whirlpool Insulation
W11688737 Whirlpool Insulation
Insulation
8053915 Whirlpool Oven Insulation
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3W11379351 Whirlpool Burner Box
4WPW10575396 Whirlpool Side Panel
4W11730303 Whirlpool Side Panel
5W10182346 Whirlpool Insulation Assembly
68523249 Whirlpool Oven Support Bracket
79761517 Whirlpool Oven Clip Assembly
8WP7101P246-60 Whirlpool Screw
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP3195097 Whirlpool Oven Bottom
12WPW10181986 Whirlpool Oven Sensor
138053967 Whirlpool Oven Heat Baffle
148053969 Whirlpool Heat Shield
158053968 Whirlpool Oven Heat Shield
16WPW10306546 Whirlpool Base Rail
17WP3400832 Whirlpool Screw
18W10491985 Whirlpool Screw
19W10877054 Whirlpool Spacer Assembly
20Back, Main
21W11542153 Whirlpool Door Gasket
22Brace, Main Back
239761449 Whirlpool Oven Retainer
239761448 Whirlpool Oven Retainer
24W10137382 Whirlpool Clip
25WP9757891 Whirlpool Power Cord
269757239 Whirlpool Oven Door Rod
27WP9757262 Whirlpool Light Switch
28W10647259 Whirlpool Hinge Receiver
29W11169708 Whirlpool Screw
30WP9761013 Whirlpool Door Latch
31W10078370 Whirlpool Latch Rod
32WPW10107820 Whirlpool Door Latch
33WPW10114344 Whirlpool Drawer Glide
34W11594027 Whirlpool Range Oven Light Socket
35RANGE ONLY 40W 120V APPL BULB
36Screw
38Screw
39WPW10067840 Whirlpool Screw
40SCREW
41WP3196175 Whirlpool Screw
