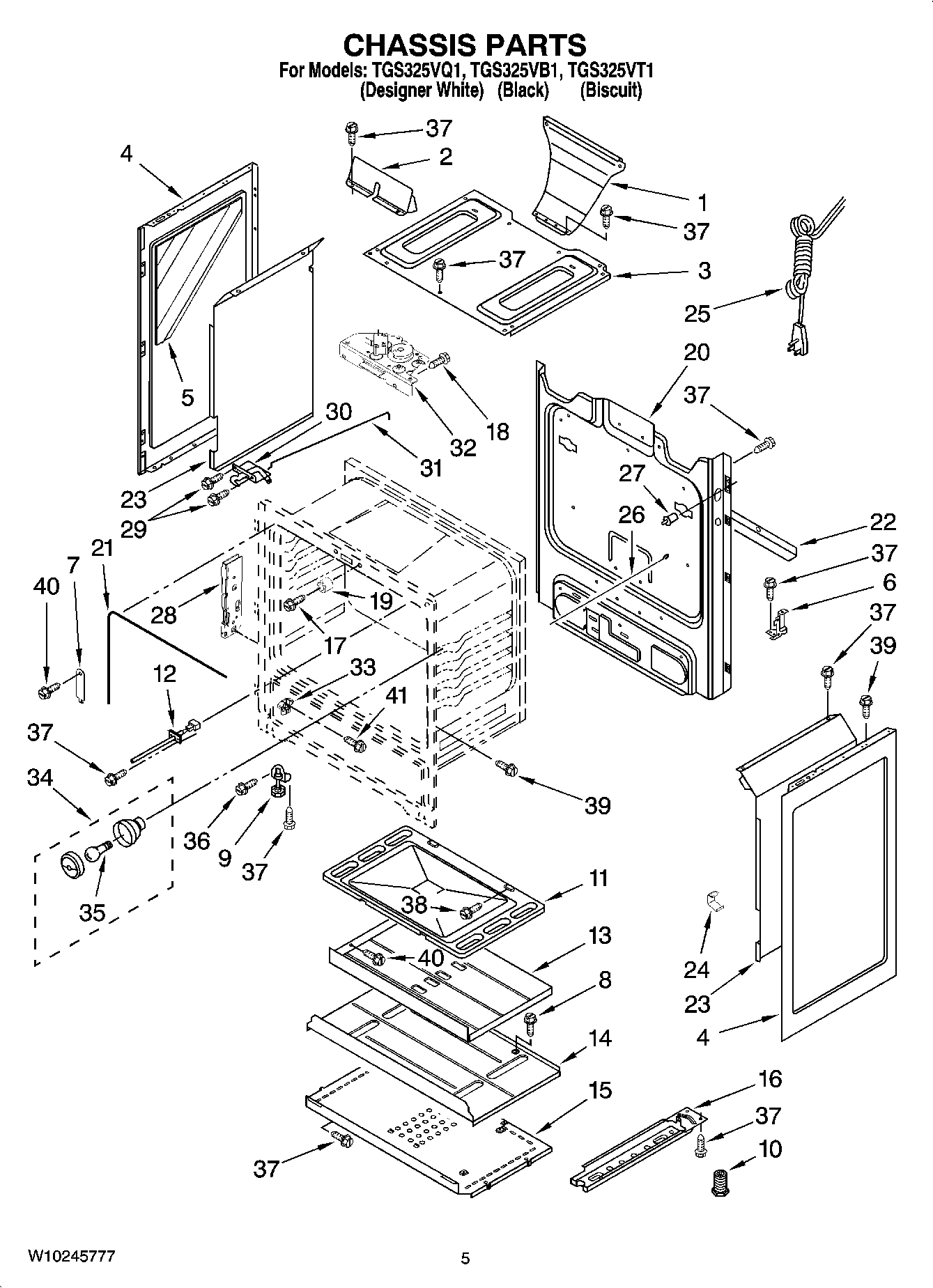

TGS325VT1 04 – CHASSIS PARTS

Products

Position	Product
	8053915 Whirlpool Oven Insulation
	W11688737 Whirlpool Insulation
	W11684915 Whirlpool Insulation
	Insulation
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4	WPW10575396 Whirlpool Side Panel
4	W11730303 Whirlpool Side Panel
5	W10182346 Whirlpool Insulation Assembly
6	8523249 Whirlpool Oven Support Bracket
7	9761517 Whirlpool Oven Clip Assembly
8	WP7101P246-60 Whirlpool Screw
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	WPW10181986 Whirlpool Oven Sensor
13	Spreader, Flame (Oven)
14	8053969 Whirlpool Heat Shield
15	8053968 Whirlpool Oven Heat Shield
16	WPW10306546 Whirlpool Base Rail
17	WP3400832 Whirlpool Screw
18	W10491985 Whirlpool Screw
19	W10877054 Whirlpool Spacer Assembly
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	Brace, Main Back
23	9761449 Whirlpool Oven Retainer
23	9761448 Whirlpool Oven Retainer
24	W10137382 Whirlpool Clip
25	WP9757891 Whirlpool Power Cord
26	9757239 Whirlpool Oven Door Rod
27	WP9757262 Whirlpool Light Switch
28	W10647259 Whirlpool Hinge Receiver
29	W11169708 Whirlpool Screw
30	WP9761013 Whirlpool Door Latch
31	W10078370 Whirlpool Latch Rod
32	WPW10107820 Whirlpool Door Latch
33	WPW10114344 Whirlpool Drawer Glide
34	W11594027 Whirlpool Range Oven Light Socket
35	RANGE ONLY 40W 120V APPL BULB
36	Screw
38	Screw
39	WPW10067840 Whirlpool Screw
40	SCREW
41	WP3196175 Whirlpool Screw
