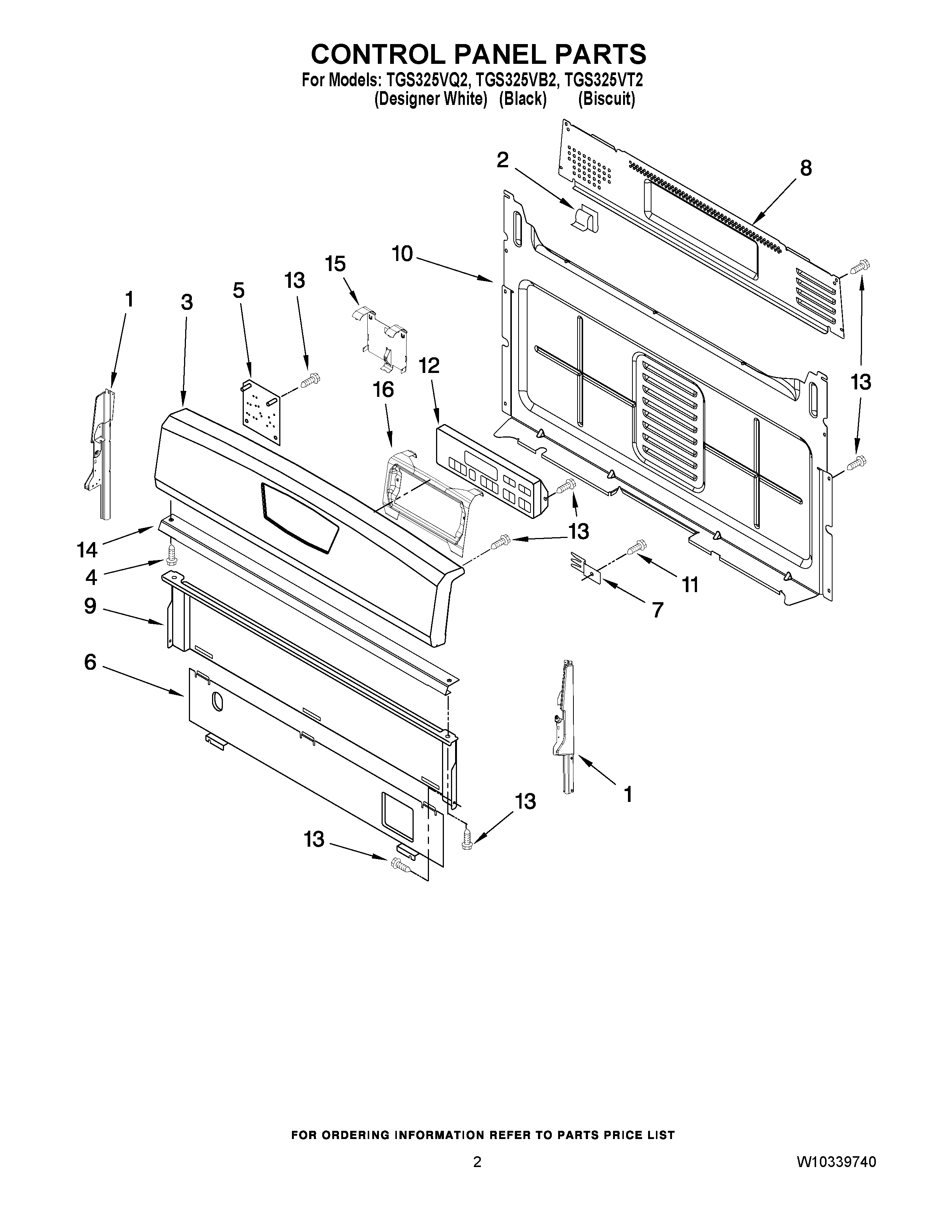

TGS325VT2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11230612 Whirlpool Panel End Cap
1	W11230611 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	WP8273564 Whirlpool Clip
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
3	Panel, Backguard (Biscuit)
4	WP3400832 Whirlpool Screw
4	3196166 Whirlpool Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12	CONTROL, RANGE (BLACK)
12	WPW10271758 Whirlpool Electronic Control
12	WPW10271757 Whirlpool Electronic Control
13	SCREW
14	Brkt-Mntg, Console
15	W10516463 Whirlpool Mounting Bracket
16	W11230932 Whirlpool Bracket Mounting
