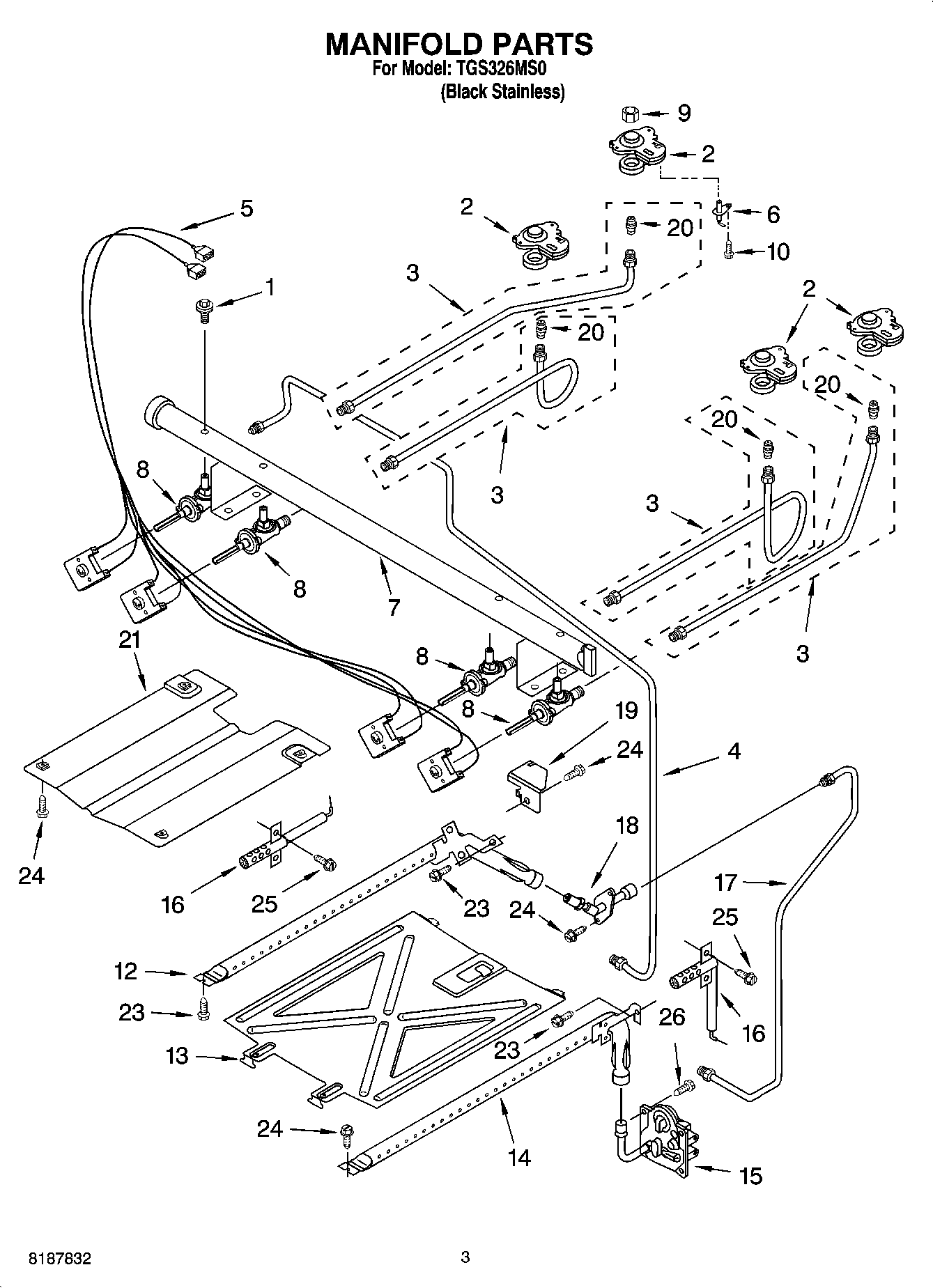

TGS326MS0 03 – MANIFOLD PARTSadmin2025-04-26T12:22:51+00:00TGS326MS0 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| 1 | WP8273096 Whirlpool Screw |
| 2 | WP8273700 Whirlpool Base Burner |
| 3 | Tubing, Burner W/Orifice (Left Rear) |
| 3 | Tubing, Burner W/Orifice (Left Front) |
| 3 | Tubing, Burner W/Orifice (Right Front) |
| 3 | Tubing, Burner W/Orifice (Right Rear) |
| 4 | Tubing (Manifold to Regulator) |
| 5 | WPW10295998 Whirlpool Wire Harness |
| 6 | WP8523793 Whirlpool Oven Surface Igniter |
| 7 | Pipe, Manifold |
| 8 | WP9757218 Whirlpool Burner Valve |
| 8 | Valve (Right Rear) |
| 9 | Nut (4) |
| 10 | WP8273062 Whirlpool Screw |
| 12 | WP8054078 Whirlpool Broiler Burner |
| 13 | Spreader, Flame (Oven) |
| 14 | 8190618 Whirlpool Gas Range Oven Burner Assembly with Spark Igniter |
| 15 | WPW10293048 Whirlpool Gas Valve |
| 16 | WP8054129 Whirlpool Oven Igniter |
| 17 | Tubing (Broiler Fitting To Valve) |
| 18 | Fitting, Broiler |
| 19 | Cover, Igniter |
| 20 | Orifice, Burner (Left Front) |
| 20 | WP8273066 Whirlpool Orifice |
| 20 | WP8273065 Whirlpool Orifice |
| 20 | WP8273067 Whirlpool Orifice |
| 21 | W10137062 Whirlpool Burner Baffle |
| 23 | 3196265 Whirlpool Oven Screw |
| 24 | SCREW |
| 25 | W11684507 Whirlpool Screw |
| 26 | WP3400016 Whirlpool Screw Assembly |
| 26 | Spuds, LP Gas (Kit of 4) |
| 26 | FOLLOWING PARTS NOT ILLUSTRATED |
