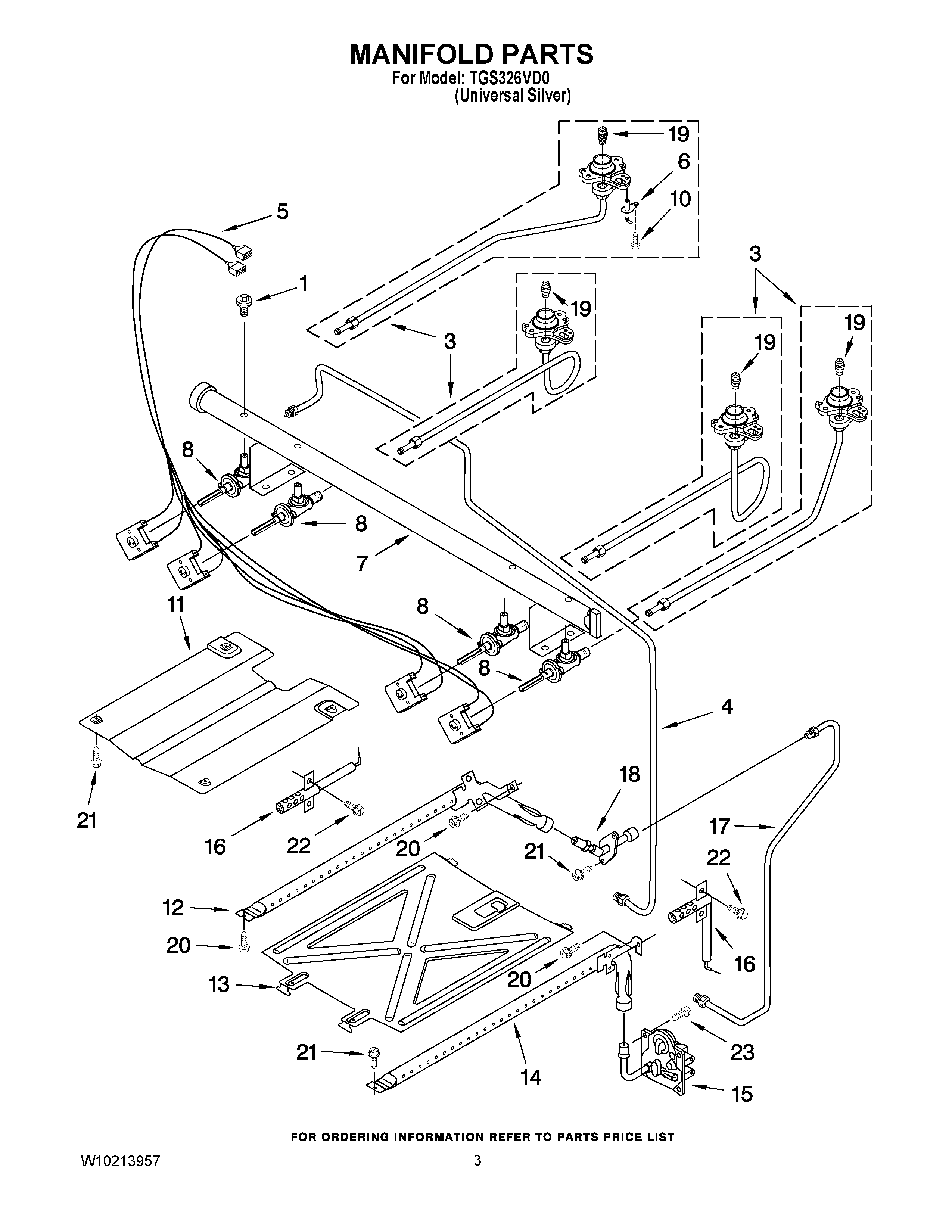

TGS326VD0 03 – MANIFOLD PARTS

Products

Position	Product
NI	Spuds, LP Gas (Kit of 4)
1	WP8273096 Whirlpool Screw
3	Tubing, Burner W/Orifice (Right Rear)
3	Tubing, Burner W/Orifice (Left Rear)
3	Tubing, Burner W/Orifice (Left Front)
3	Tubing, Burner W/Orifice (Right Front)
4	Pipe, Manifold
5	WPW10295998 Whirlpool Wire Harness
6	WPW10216419 Whirlpool Surface Igniter
7	Pipe, Manifold
8	WP9757218 Whirlpool Burner Valve
8	Valve (Right Rear)
10	WP8273062 Whirlpool Screw
11	W10137062 Whirlpool Burner Baffle
12	WP8054078 Whirlpool Broiler Burner
13	Spreader, Flame (Oven)
14	WP9758078 Whirlpool Oven Burner
15	WPW10293048 Whirlpool Gas Valve
16	WP9758079 Whirlpool Oven Igniter
16	WP8054129 Whirlpool Oven Igniter
17	Tubing (Broiler Fitting To Valve)
18	Fitting, Broiler
19	WPW10170507 Whirlpool Orifice
19	WPW10170508 Whirlpool Orifice Spud
19	WPW10170506 Whirlpool Orifice Spud
20	3196265 Whirlpool Oven Screw
21	SCREW
22	W11684507 Whirlpool Screw
23	WP3400016 Whirlpool Screw Assembly
