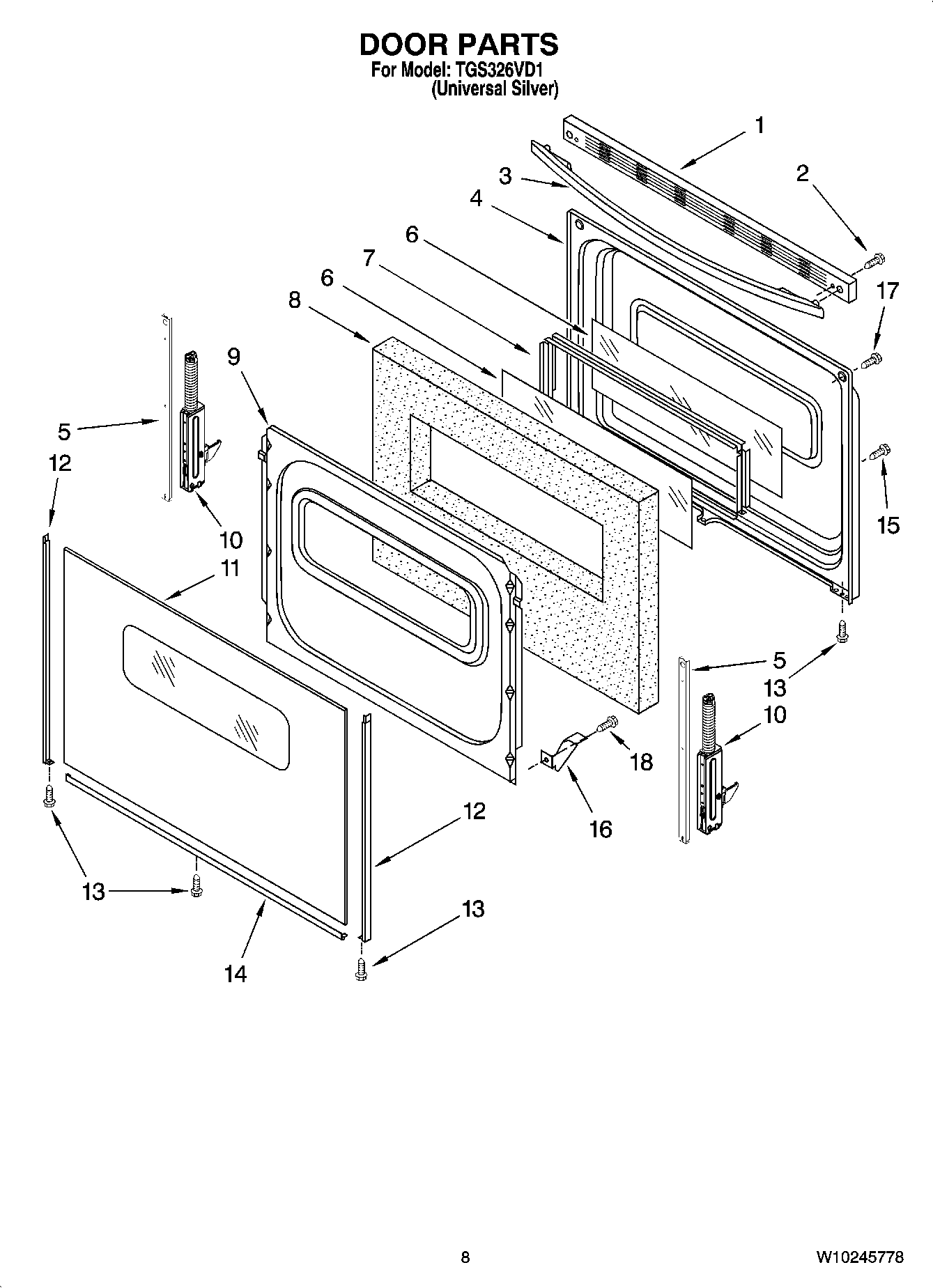

TGS326VD1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

TGS326VD1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

TGS326VD1 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
Insulation
Following Parts Not Illustrated
Grease
Harness, Main (EOC Pyro)
W11244557 Whirlpool Screw
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
REFINISHING MATERIAL
TIE,WIRE
WPW10701462 Whirlpool Wire Harness
W10322362 Whirlpool Wire Harness
W10045060 Whirlpool Grounding Wire
ACCESSORY PARTS
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WIRING HARNESS PARTS
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
ANTI-TIP KIT
285006 Whirlpool Spray
8212473 Whirlpool Refrigerator Touch Up Paint
W11447673 Whirlpool Range Tip Anchor
3196896 Whirlpool Clip
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3Handle, Door
4WP9761344 Whirlpool Door Liner
5W11502236 Whirlpool Door Trim
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer
128184858 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14Trim, Bottom (Universal Silver)
15WPW10031790 Whirlpool Screw
16W10137382 Whirlpool Clip
17W10777162 Whirlpool Screw
18WP3196175 Whirlpool Screw
