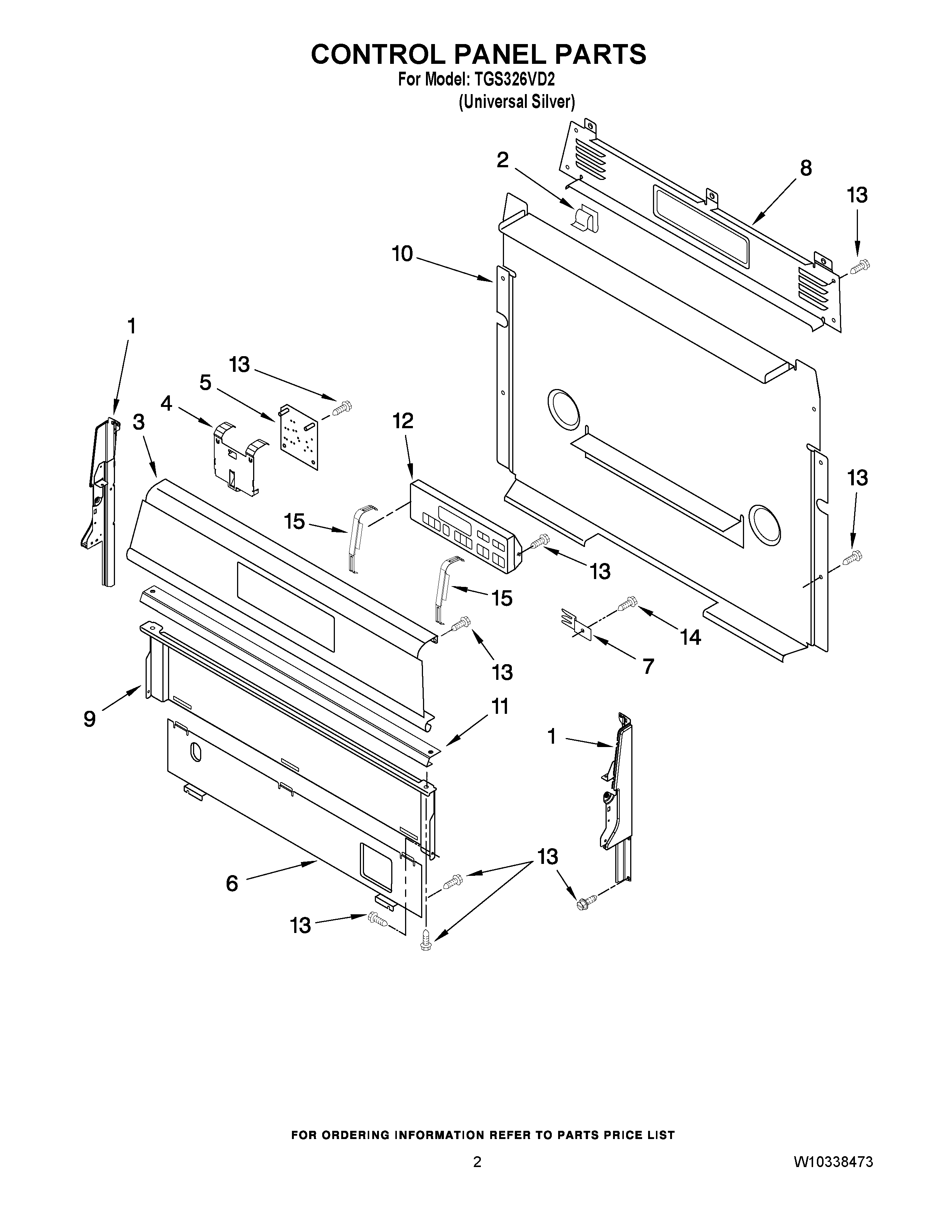

TGS326VD2 02 – CONTROL PANEL PARTS

TGS326VD2 02 – CONTROL PANEL PARTS

Written by

in

TGS326VD2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2WP8273564 Whirlpool Clip
3Panel, Control
4W10516463 Whirlpool Mounting Bracket
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10COVER, BACK
11Brkt-Mntg, Console
12CONTROL, RANGE (BLACK)
13SCREW
14WP3196557 Whirlpool Screw
15W11230932 Whirlpool Bracket Mounting
