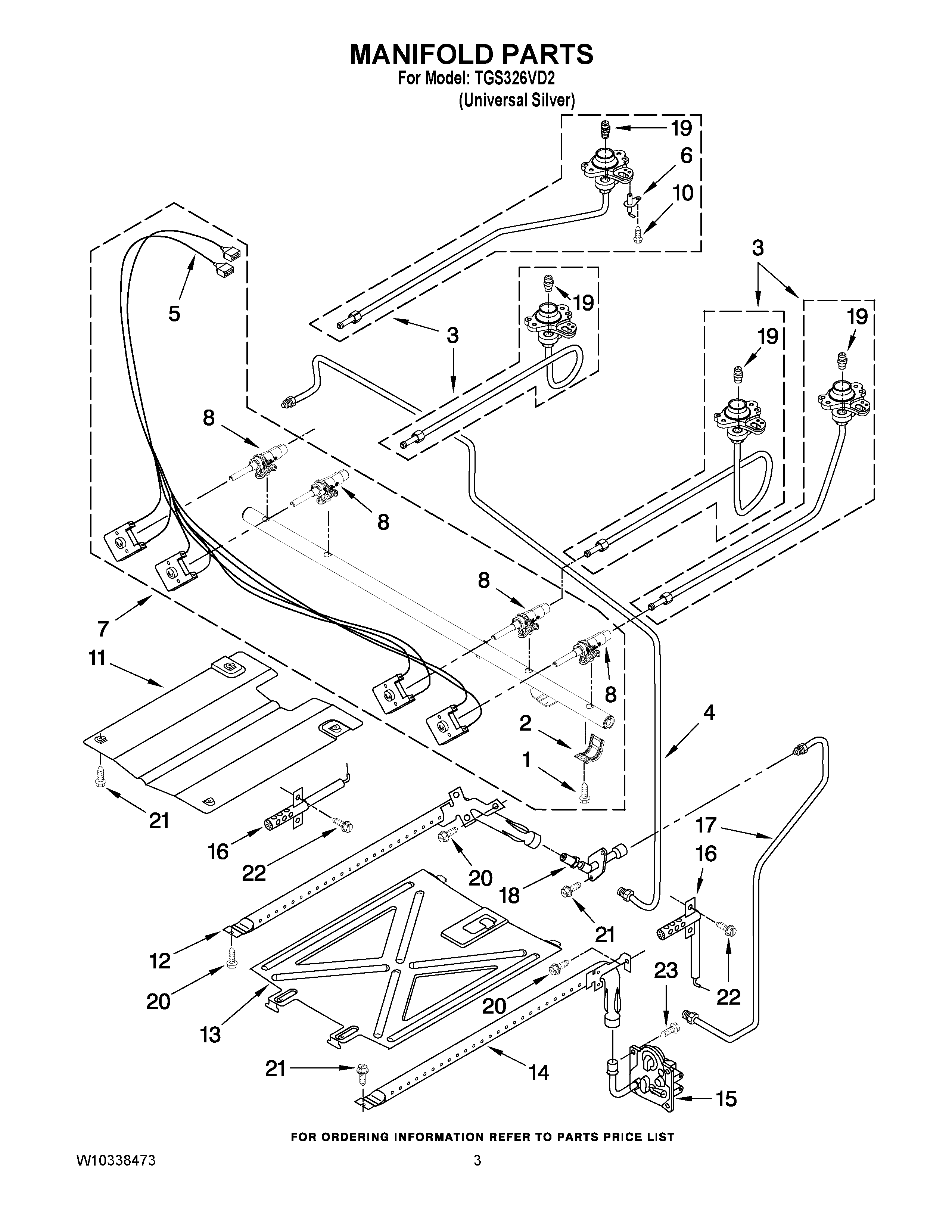

TGS326VD2 03 – MANIFOLD PARTS

TGS326VD2 03 – MANIFOLD PARTS

Written by

in

TGS326VD2 03 – MANIFOLD PARTS

Products

PositionProduct
NIW10170533 Whirlpool Orifice Spud Assembly
1W10295997 Whirlpool Screw
2W10949105 Whirlpool Mounting Bracket
3W10201351 Whirlpool Holder Orifice
3W10182369 Whirlpool Orifice Holder
3WPW10201350 Whirlpool Orifice Holder
3WPW10175217 Whirlpool Orifice Holder
4TUBING (MANIFOLD TO REGULATOR)
5WPW10295998 Whirlpool Wire Harness
6WPW10216419 Whirlpool Surface Igniter
7W10314242 Whirlpool Manifold Pipe
8WPW10247744 Whirlpool Burner Valve
8WPW10279614 Whirlpool Burner Valve
10WP8273062 Whirlpool Screw
11W10137062 Whirlpool Burner Baffle
12WP8054078 Whirlpool Broiler Burner
13SPREADER, FLAME (OVEN)
14WP9758078 Whirlpool Oven Burner
15WPW10293048 Whirlpool Gas Valve
16WP9758079 Whirlpool Oven Igniter
16WP8054129 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
19WPW10170506 Whirlpool Orifice Spud
19WPW10170508 Whirlpool Orifice Spud
19WPW10170507 Whirlpool Orifice
203196265 Whirlpool Oven Screw
21SCREW
22W11684507 Whirlpool Screw
23WP3400016 Whirlpool Screw Assembly
