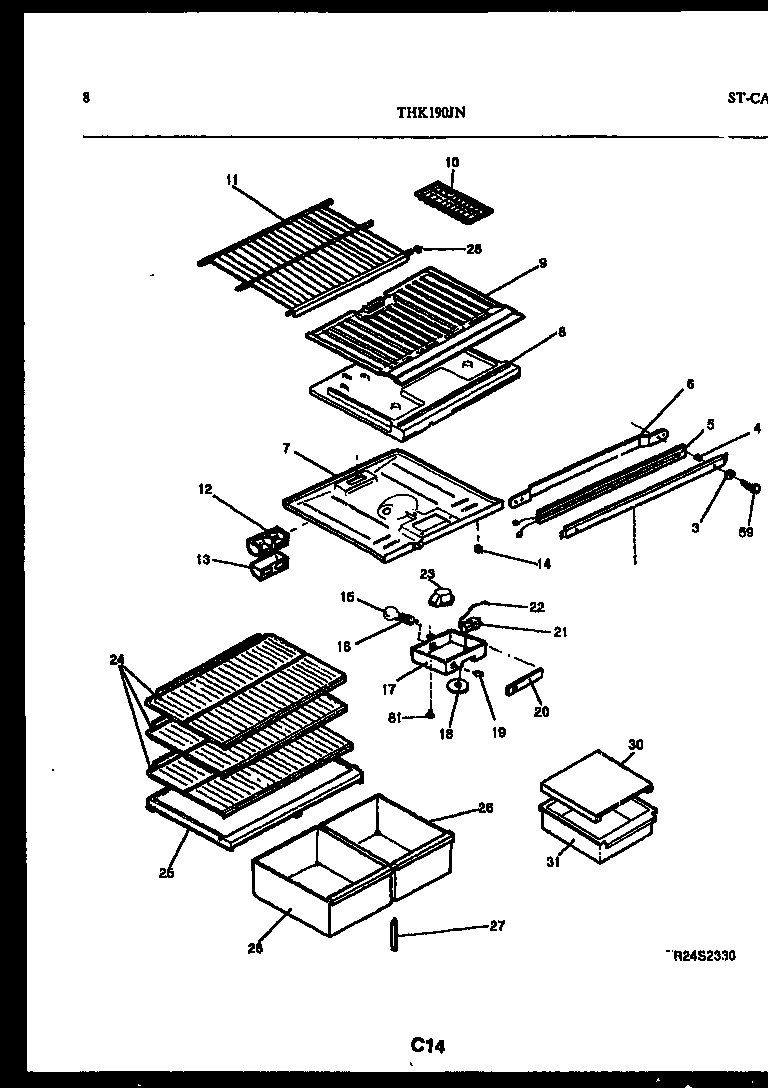

THK190JN1D 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP PANEL-REFR, W/SNAP BUSHING
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7WCI 5303001380
8HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17WCI 08016567
18WCI 5308010011
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 5303273206
21WCI 5303200810
21WCI 5303001260
22TUBE
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303283041
25COVER-CRISPER
26WCI 5303273192
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
30WCI 5308000263
31WCI 5303273265
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
