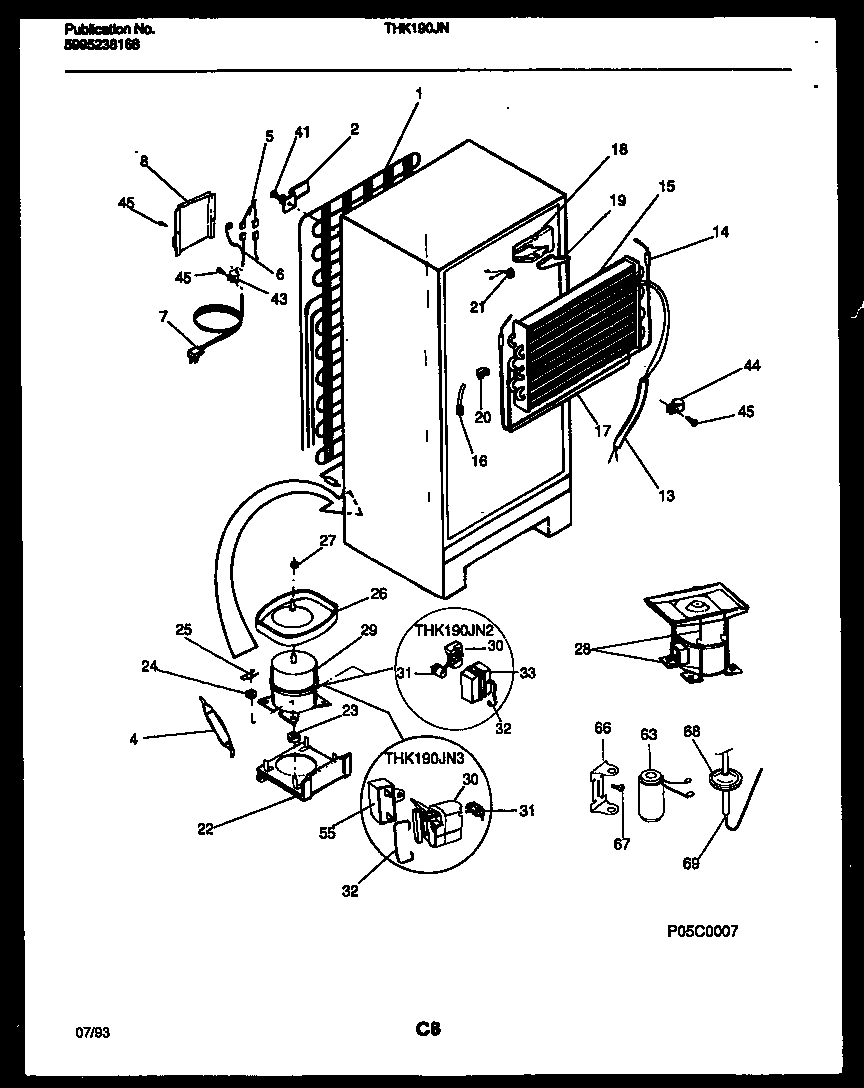

THK190JN2D 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

THK190JN2D 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

THK190JN2D 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
15303017691 Frigidaire Refrigerator Spacer-Tube
1WCI 5300163133
2BRACKET, MOUNTIN, CONDENSER, (4)
2WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
5HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
6WIRING HARNESS, COMPRESSOR,
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 5308000728
145317842502 Frigidaire Defrost Heater
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
265303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29CAPACITOR
29WCI 5303917190
30RELAY-TL
31WCI 5303276514
325303006412 Frigidaire Refrigerator Cover Mounting Strap
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
63WCI 215257100
66WCI 215062300
67WCI 215114200
685303305677 Frigidaire Replacement Filter Dryer Filters
69WCI 215116300
31204HOT TUBE REPAIR KIT-SERVICE
