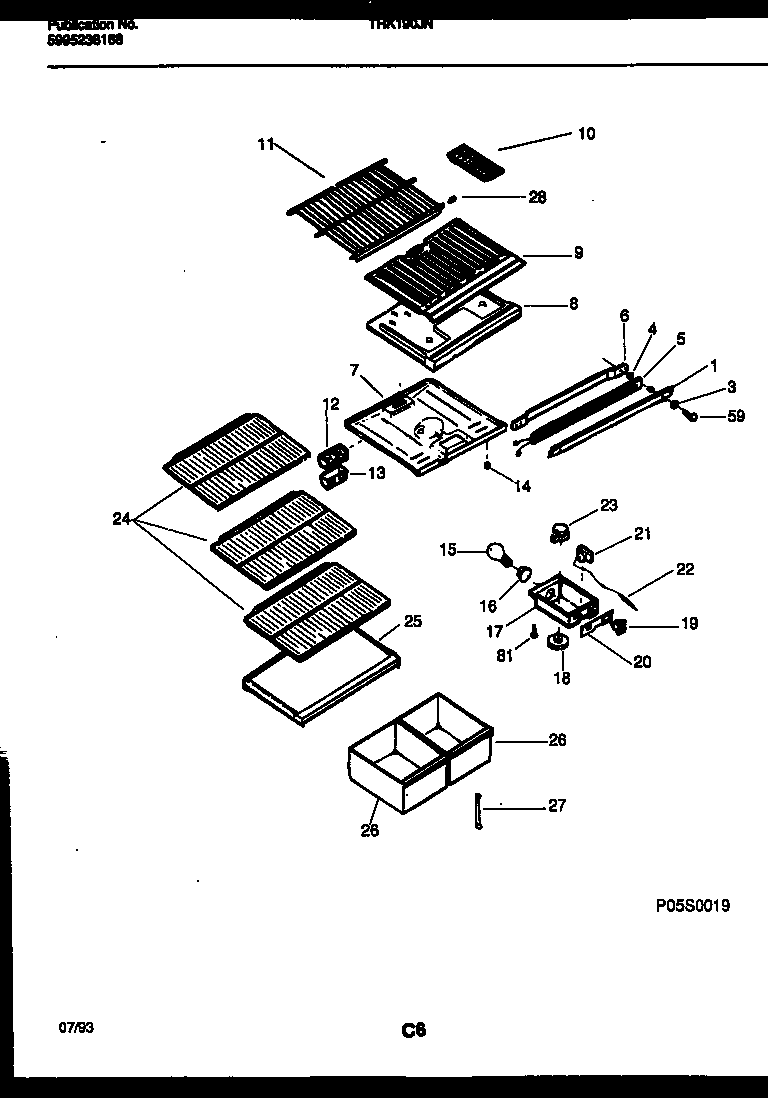

THK190JN3W 05 – SHELVES AND SUPPORTS

Products

PositionProduct
NIWCI 5303273265
NIWCI 5308000263
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 5303001380
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/SNAP BUSHING
8HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17NUT, ANCHOR (NI)
18WCI 5308010011
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 5303273206
21WCI 5303001260
21WCI 5303200810
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING WIRE
24WCI 5303283297
25COVER-CRISPER
26WCI 5303273192
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
