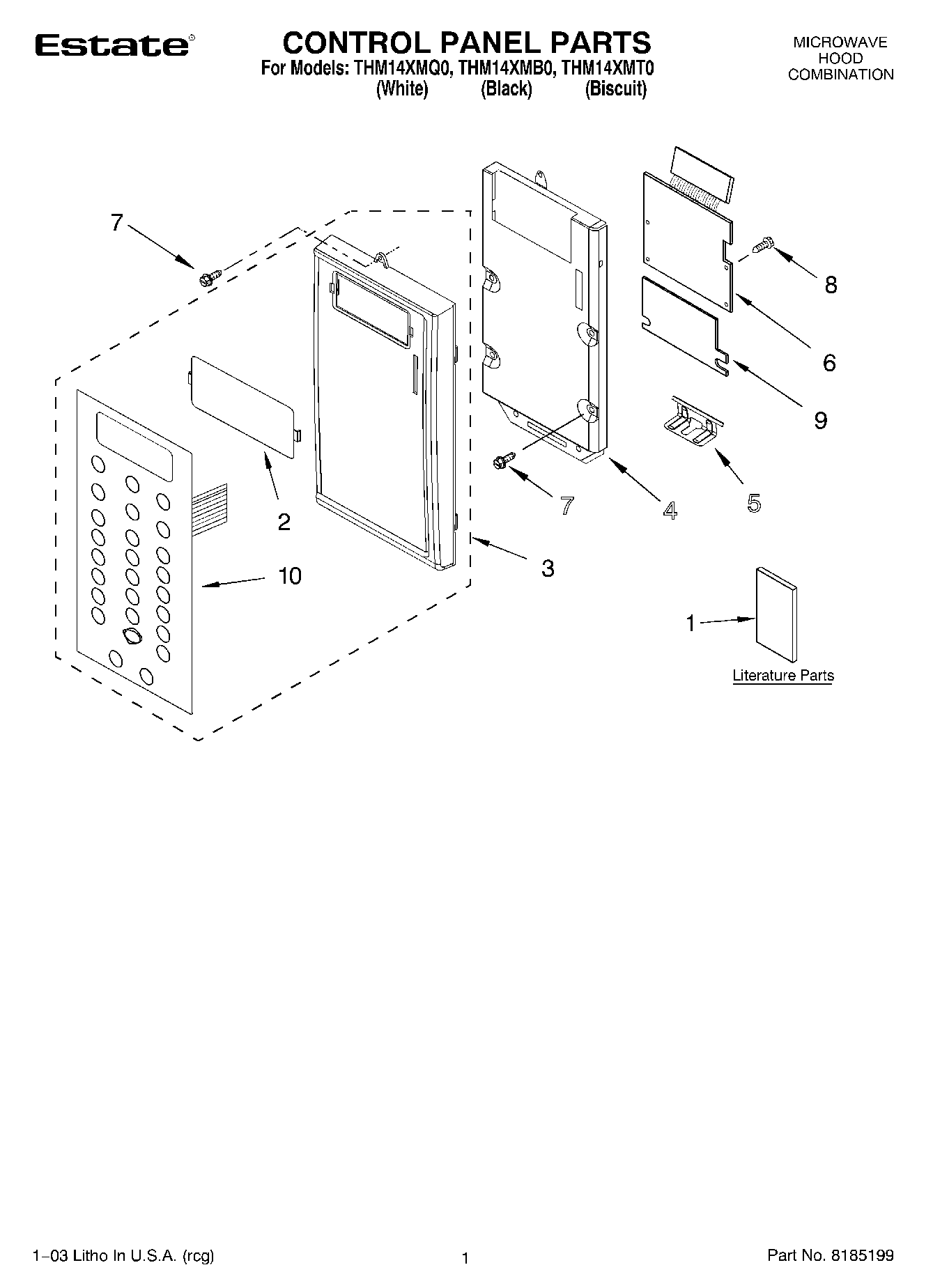

THM14XMQ0 01 – CONTROL PANEL PARTS

THM14XMQ0 01 – CONTROL PANEL PARTS

Written by

in

THM14XMQ0 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Literature Parts (Cook Guide Label)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
2Lens
3Panel, Control (Biscuit)
3Panel, Control (Black)
3Panel, Control (White)
4Bracket, Control
5Plate, Hinge
6PCB Assembly
7Screw
8Screw
9Foil, PCB
10Switch, Membrane (White)
10Switch, Membrane (Black)
10Switch, Membrane (Biscuit)
