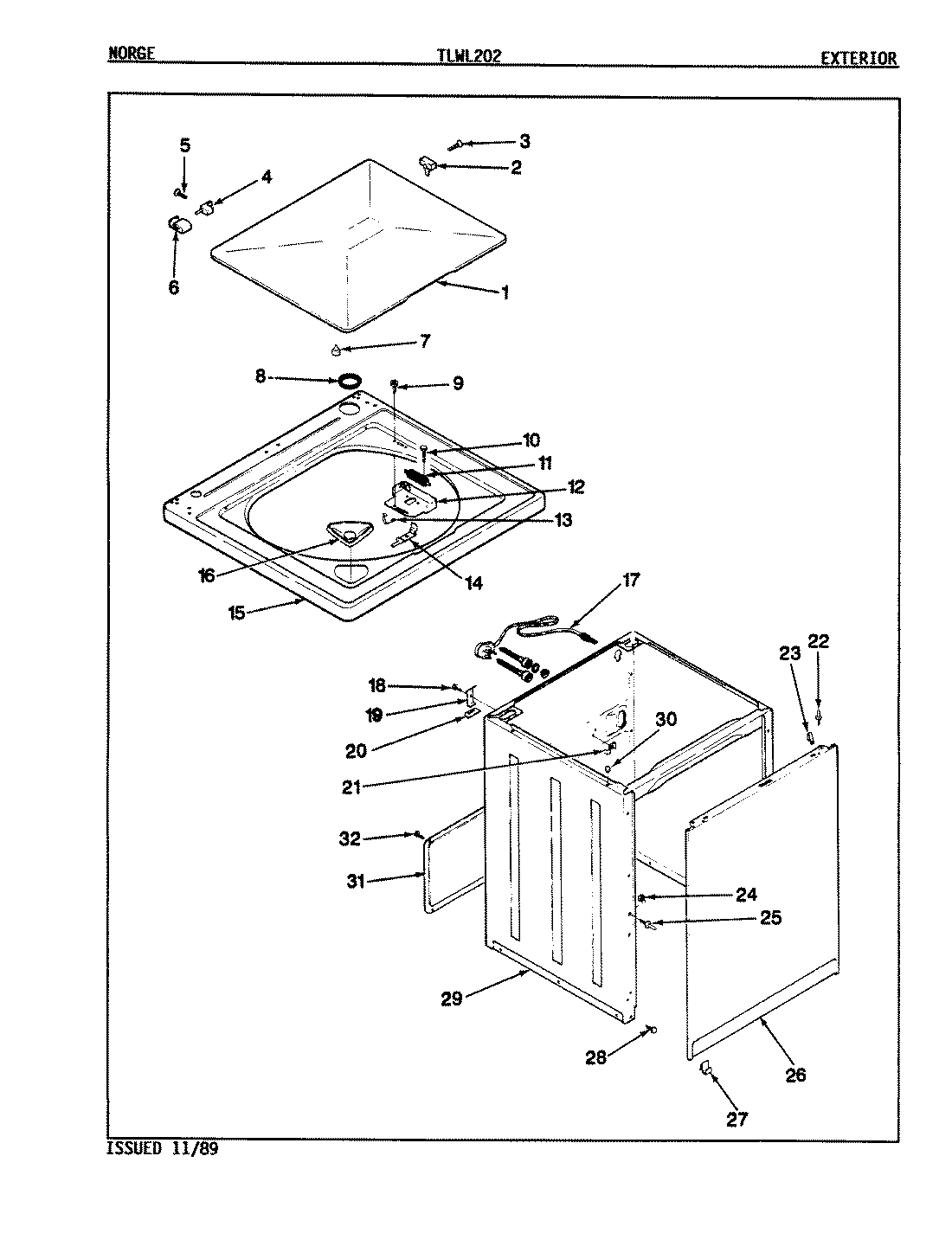

| 1 | MAY 35-2026 |
| 2 | MAY 25-7436 |
| 2 | WP43-0057 Whirlpool Lid Switch Actuator |
| 3 | MAY 25-7438 |
| 4 | MAY 25-7086 |
| 4 | WP35-2045 Whirlpool Hinge Pin |
| 6 | HINGE-LID |
| 7 | MAY 35-0581 |
| 8 | MAY 35-2063 |
| 9 | MAY 25-7463 |
| 10 | MAY 25-7437 |
| 11 | MAY 33-8911 |
| 11 | MAY 33-9064 |
| 12 | MAY 33-8289 |
| 13 | MAY 25-7878 |
| 14 | MAY 33-9063 |
| 15 | MAY 35-2028 |
| 15 | MAY 35-2028-24 |
| 16 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 17 | MAY 35-0680 |
| 18 | WP25-7893 Whirlpool Screw |
| 19 | MAY 33-7450 |
| 20 | MAY 33-0930 |
| 21 | MAY 33-6099 |
| 23 | MAY 34-9701 |
| 24 | MAY 25-0224 |
| 25 | MAY 53-0643 |
| 26 | MAY 35-2084 |
| 26 | MAY 35-2084-24 |
| 27 | WP53-0120 Whirlpool Clip |
| 29 | MAY 35-2106 |
| 30 | MAY 33-2653 |
| 31 | MAY 35-2108 |
| 32 | MAY 25-7733 |
