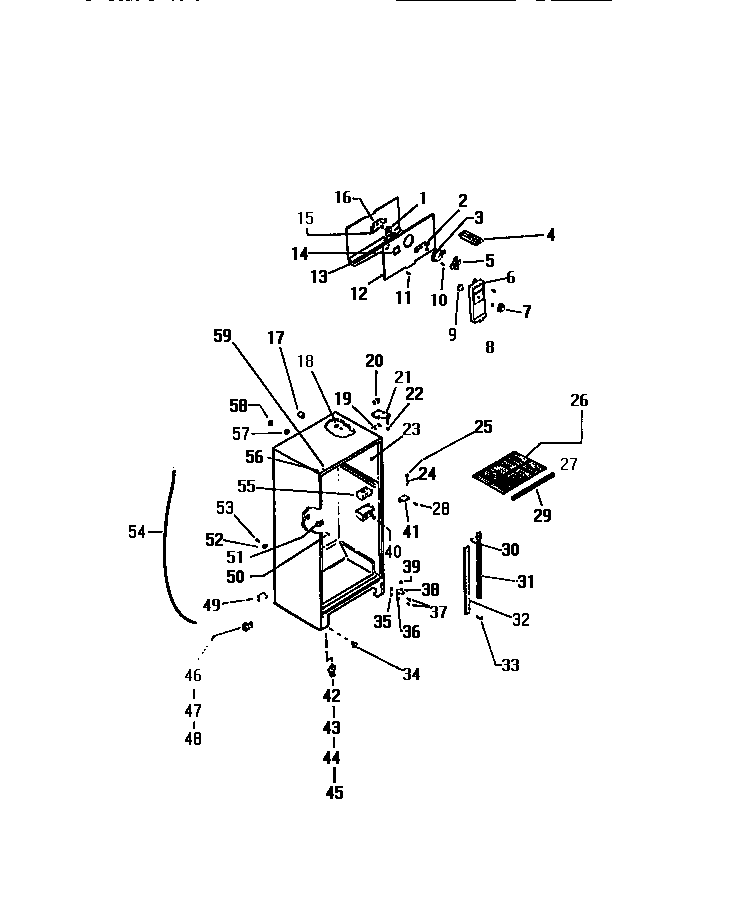

TM1210AN1T 03 – CABINET W/ FAN ASSEMBLY

Products

Position	Product
*33134	WCI G179267
*33135	WCI G179266
1	5300158289 Frigidaire Evaporator Fan Motor
2	BRACKET, FRONT MOTOR MOUNTING
3	RING, FAN ORIFICE
4	215667501 Frigidaire Refrigerator Ice Tray Primary
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI G162512-22
7	KNOB, DAMPER CONTROL
8	NUT, DAMPER MOUNTING
9	DAMPER FAN COVER
12	WCI G184609
13	WCI G177534
15	G187559 Frigidaire Refrigerator Bushing
16	BRACKET, REAR MOTOR MOUNTING
17	TUBE, INSULATION (2)
18	WCI G163669
19	WCI G183861
20	241710601 Frigidaire Refrigerator Screw
21	BRACKET, TOP HINGE
23	5304509705 Frigidaire Refrigerator Grommet
24	WCI G142220
25	WASHER (2)
26	WCI G177059-05
27	WCI G166495-01
28	SCREW, BRACKET MOUNTING (4)
29	WCI G172434-34
30	5304455852 Frigidaire Refrigerator Screw
31	CHANNEL, SHELF (2)
32	CHANNEL, CENTER SHELF, MOUNTING
33	WCI G163989
34	WCI G166912
35	SHIM, HINGE
36	BRACKET, HINGE, LOWER
38	5303001321 Frigidaire Refrigerator Lower Hinge Pin
39	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
40	WCI G162178
41	BRACKET, HINGE CENTER
42	ROLLER FRONT, ADJUSTABLE (2)
43	SPRING-ROLLER (2)
44	BOLT-ROLLER (2)
45	SUPPORT, ROLLER (2)
46	ROLLER, REAR (2)
47	BOLT ROLLER (2)
48	5308000039 Frigidaire Refrigerator Screw
49	BRACKET, DRAIN TUBE
50	5304455650 Frigidaire Refrigerator Screw
51	SPOUT DRAIN TUBE
52	WCI G101747
53	5304455651 Frigidaire Refrigerator Screw
54	TUBE, DRAIN
55	DEFLECTOR AIR
56	BUTTON DECORATIVE PLUG
57	WCI G174733
58	WCI G174734
59	WCI G174747-09
