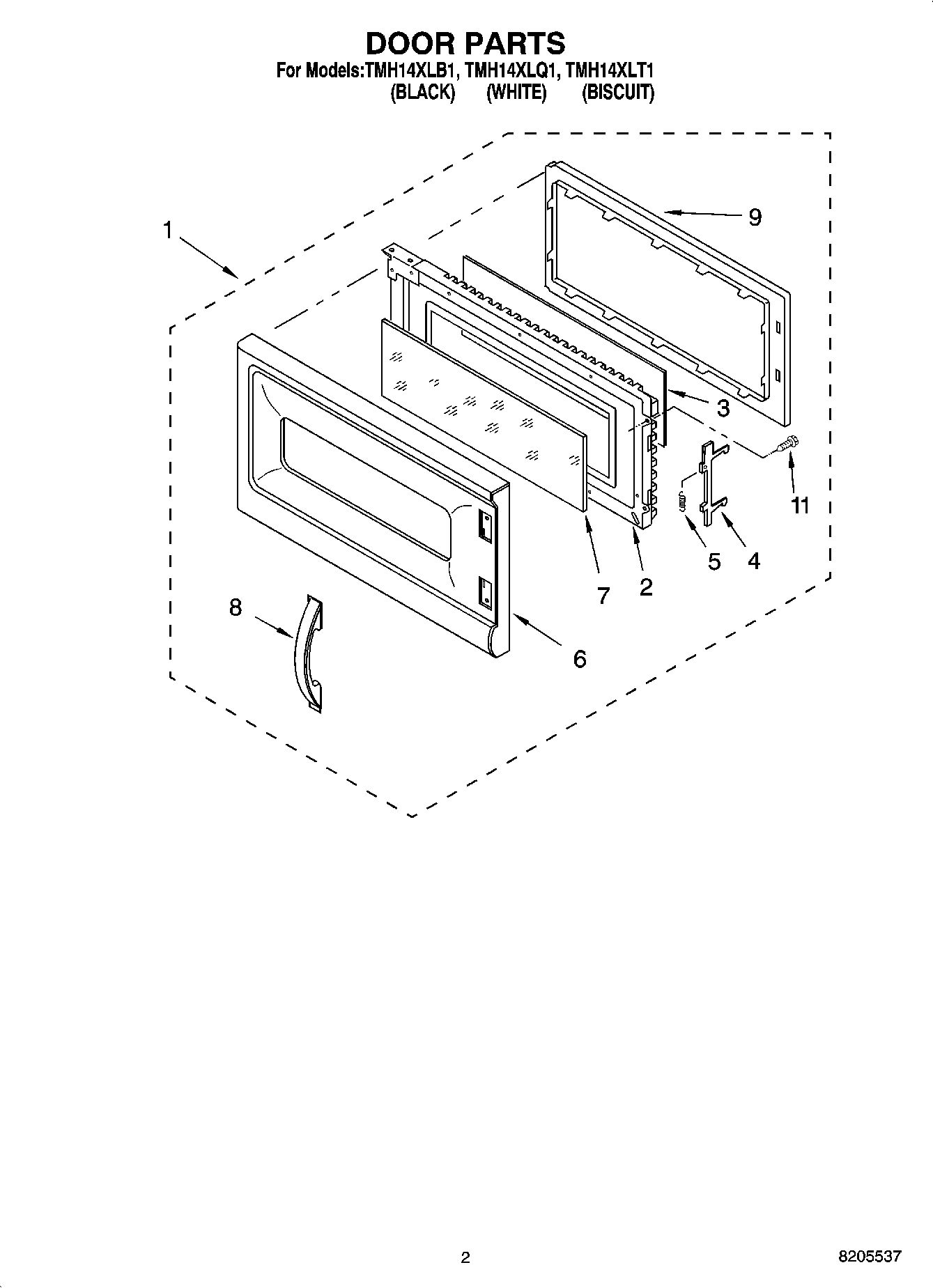

TMH14XLB1 02 – DOOR PARTS

Products

Position	Product
1	Door Assembly (Black)
1	Door Assembly (Biscuit)
1	Door Assembly (White)
2	Frame, Door
3	WPW10146437 Whirlpool Peel and Stick Door Film
4	Latch
5	Spring, Latch
6	Panel, Door (Biscuit)
6	Panel, Door (Black)
6	Panel, Door (White)
7	Glass, Door (BL/WH Models)
8	Handle, Door (Black)
8	Handle, Door (White)
8	Handle, Door (Biscuit)
9	Choke, Cover
11	Screw
11	Screw (White Model)
